NOTES:

Part # Number on image Usage Notes
414-480-470 31
  • Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780 53
  • The Warlord 205 Series 2 is available in 4 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780, 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-900 54
  • The Warlord 205 Series 2 is available in 4 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780, 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-770 55
  • The Warlord 205 Series 2 is available in 4 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780, 950 and 1060 extensions. Refer to the offset chart for specific measurements.

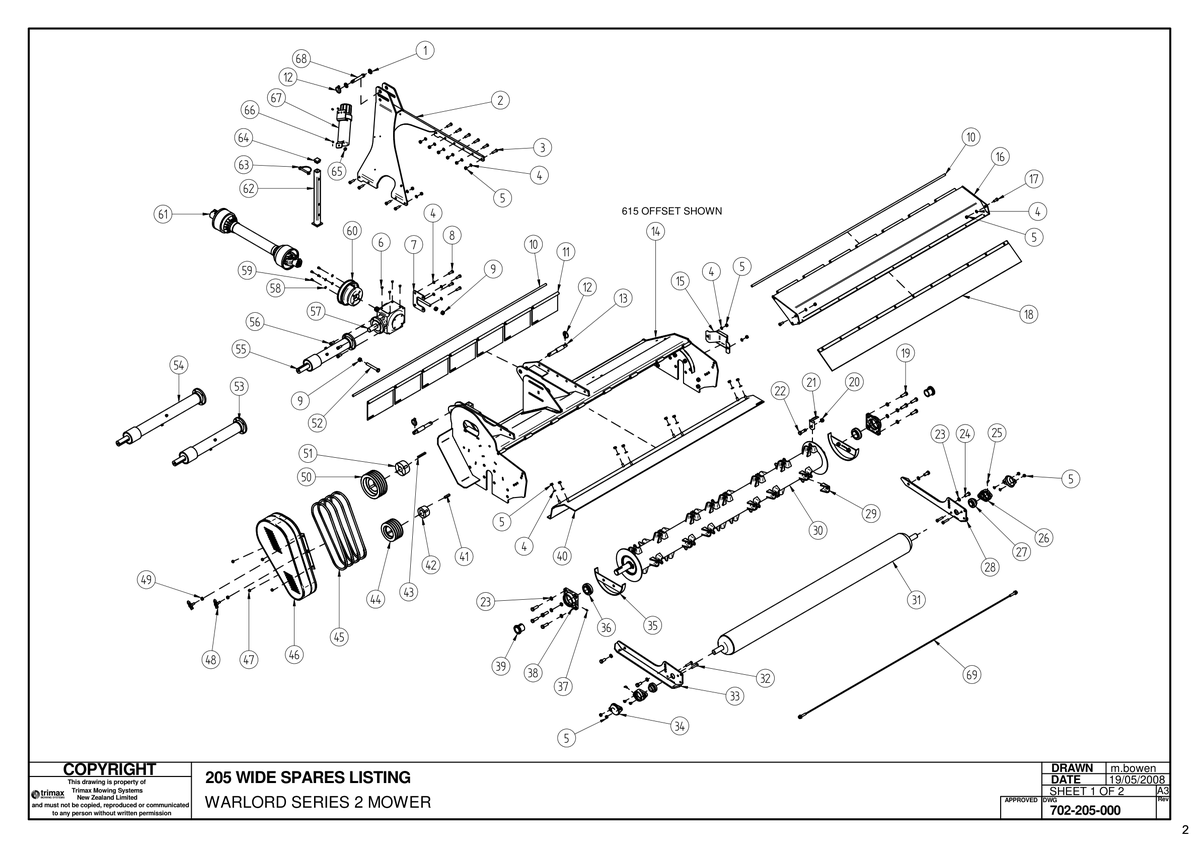

702 Warlord S2 205 - 205 Wide Spares Listing

Warlord S2 205

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
2 Headstock [417-000-459] Headstock 417-000-459
Price on Request
3 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
4 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
5 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
6 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
7 Adjuster [417-000-428] Adjuster 417-000-428
US$12.36
8 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
9 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
11 Front Flap Weldment [417-480-320] Front Flap Weldment 417-480-320
US$30.75
12 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
13 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
15 Bearing Guard [410-460-302] Bearing Guard 410-460-302
Price on Request
16 Rear Flap Weldment 205 [417-480-271] Rear Flap Weldment 205 417-480-271
Price on Request
17 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
19 Bolt - Hex Head - M16 x 50 - Trimax Specification [301-216-503] Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503
US$4.33
20 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
21 Flail - Spring Steel Flail - Warlord - Trimax Specification - [411-160-200] Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200
US$32.80
23 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
24 Bolt - Hex Head - M16 x 35 - Trimax Specification [301-216-353] Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353
US$6.85
25 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
26 Bearing Housing [401-020-800] Bearing Housing 401-020-800
US$21.36
28 Trailing Arm Weldment - RH [412-000-128] Trailing Arm Weldment - RH 412-000-128
US$86.49
29 Flail Lug [411-480-610] Flail Lug 411-480-610
US$19.07
30 Rotor [415-480-570] Rotor 415-480-570
Price on Request
31 Roller Weldment 205 [414-480-470] Roller Weldment 205 i See notes section for usage notes on this part 414-480-470
US$609.13
32 Bolt - Hex Head - M12 x 55 - Trimax Specification [301-212-553] Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553
US$1.07
33 Trailing Arm Weldment - LH [412-000-129] Trailing Arm Weldment - LH 412-000-129
US$86.49
34 Cap [410-464-072] Cap 410-464-072
US$24.48
35 Half Ring Lower Weldment - Rotor (M16 Captive Nuts) [417-480-331] Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331
US$40.10
36 Bearing [401-021-210] Bearing 401-021-210
US$63.26
37 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
38 Bearing Housing [401-021-220] Bearing Housing 401-021-220
US$71.94
39 Sleeve - Taper [401-021-230] Sleeve - Taper 401-021-230
US$42.29
40 Liner Weldment 205 [417-000-433] Liner Weldment 205 417-000-433
US$625.92
41 Key - Trimax Specification [205-425-920] Key - Trimax Specification 205-425-920
US$12.21
42 Bush - Taper Lock - Trimax Specification [402-060-730] Bush - Taper Lock - Trimax Specification 402-060-730
US$64.08
43 Key - 12x8mm - Trimax Specification [405-425-910] Key - 12x8mm - Trimax Specification 405-425-910
US$11.39
44 Pulley - Taper Lock [403-361-180] Pulley - Taper Lock 403-361-180
US$143.26
45 Vee Belt - Trimax Specification [404-040-512] Vee Belt - Trimax Specification 404-040-512
US$77.96
46 Belt Guard Weldment - RH Offset [410-480-440] Belt Guard Weldment - RH Offset 410-480-440
US$612.44
48 Drop Latch - Anti-loose [423-080-400] Drop Latch - Anti-loose 423-080-400
US$25.10
49 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
50 Pulley - Taper Lock [403-361-270] Pulley - Taper Lock 403-361-270
US$240.93
51 Bush - Taper Lock - Trimax Specification [402-060-710] Bush - Taper Lock - Trimax Specification 402-060-710
US$81.18
52 Set Screw [313-616-123] Set Screw 313-616-123
US$20.88
53 Extension Shaft Assembly - Gearbox [405-201-780] Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780
US$622.41
54 Extension Assembly [405-201-900] Extension Assembly i See notes section for usage notes on this part 405-201-900
US$985.12
55 Extension Assembly [405-201-770] Extension Assembly i See notes section for usage notes on this part 405-201-770
US$796.35
56 Cap Screw - Socket Head - M12 x 30 - Trimax Specification [303-212-305] Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305
US$1.90
57 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
58 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
59 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
60 Cone [410-440-400] Cone 410-440-400
US$25.22
61 PTO Complete Driveshaft - 540/1000rpm - Trimax Specification [406-340-840] PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840
US$461.24
63 Pin [406-346-410] Pin 406-346-410
US$6.17
64 Cap - Tube Insert Square [209-480-661] Cap - Tube Insert Square 209-480-661
US$21.88
65 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
66 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
67 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
68 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
69 Roller Scraper [404-480-473] Roller Scraper 404-480-473
US$82.00
