NOTES:

Part # Number on image Usage Notes
414-480-480 30
  • Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780 46
  • The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-900 47
  • The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-920 54
  • The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.

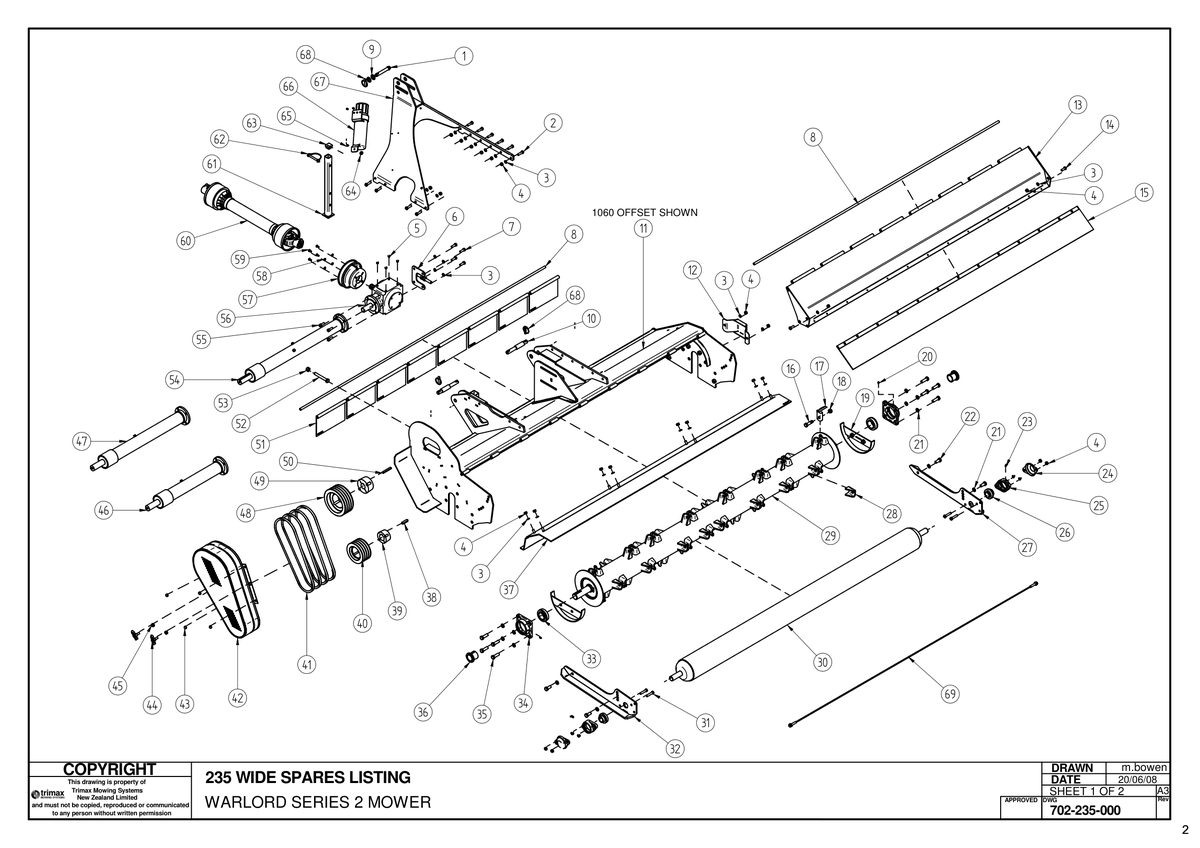

702 Warlord S2 235 - 235 Wide Spares Listing

Warlord S2 235

Grouped product items
No. Image Product Name Price Quantity
1 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
2 Bolt [301-212-403] Bolt 301-212-403
US$8.93
3 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
4 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
5 Blanking Plug [209-900-012] Blanking Plug 209-900-012
US$0.35
6 Adjuster [417-000-428] Adjuster 417-000-428
US$12.36
7 Bolt [301-212-353] Bolt 301-212-353
US$2.98
8 Hinge Pin 235 [417-000-190] Hinge Pin 235 417-000-190
Price on Request
9 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
10 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
12 Bearing Guard [410-460-302] Bearing Guard 410-460-302
Price on Request
13 Rear Flap Assembly [417-480-281] Rear Flap Assembly 417-480-281
Price on Request
14 Bolt [301-212-303] Bolt 301-212-303
US$3.13
17 Flail [411-160-200] Flail 411-160-200
US$32.80
18 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
19 Half Ring Lower Weldment - Rotor (M16 Captive Nuts) [417-480-331] Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331
US$40.10
20 Grease Nipple [208-442-600] Grease Nipple 208-442-600
US$3.72
21 Washer [308-160-043] Washer 308-160-043
US$0.60
22 Bolt [301-216-353] Bolt 301-216-353
US$6.85
23 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
24 Cap [410-464-072] Cap 410-464-072
US$24.48
25 Bearing Housing [401-020-800] Bearing Housing 401-020-800
US$21.36
27 Trailing Arm Weldment - RH [412-000-128] Trailing Arm Weldment - RH 412-000-128
US$86.49
28 Flail Lug [411-480-610] Flail Lug 411-480-610
US$19.07
29 Rotor [415-480-580] Rotor 415-480-580
Price on Request
30 Roller Weldment 235 [414-480-480] Roller Weldment 235 i See notes section for usage notes on this part 414-480-480
US$609.13
31 Bolt [301-212-553] Bolt 301-212-553
US$1.07
32 Trailing Arm Weldment - LH [412-000-129] Trailing Arm Weldment - LH 412-000-129
US$86.49
33 Bearing [401-021-210] Bearing 401-021-210
US$63.26
34 Bearing Housing [401-021-220] Bearing Housing 401-021-220
US$71.94
35 Bolt [301-216-503] Bolt 301-216-503
US$4.33
36 Sleeve - Taper [401-021-230] Sleeve - Taper 401-021-230
US$42.29
37 Body [417-000-494] Body 417-000-494
US$222.81
38 Key [205-425-920] Key 205-425-920
US$12.21
39 Bush [402-060-730] Bush 402-060-730
US$64.08
40 Pulley [403-361-180] Pulley 403-361-180
US$143.26
41 Vee Belt [404-040-512] Vee Belt 404-040-512
US$77.96
42 Belt Guard Weldment - RH Offset [410-480-440] Belt Guard Weldment - RH Offset 410-480-440
US$612.44
44 Drop Latch - Anti-loose [423-080-400] Drop Latch - Anti-loose 423-080-400
US$25.10
45 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
46 Extension Assembly [405-201-780] Extension Assembly i See notes section for usage notes on this part 405-201-780
US$622.41
47 Extension Assembly [405-201-900] Extension Assembly i See notes section for usage notes on this part 405-201-900
US$985.12
48 Pulley [403-361-270] Pulley 403-361-270
US$240.93
49 Bush [402-060-710] Bush 402-060-710
US$81.18
50 Key [405-425-910] Key 405-425-910
US$11.39
51 Front Flap Weldment [417-480-320] Front Flap Weldment 417-480-320
US$30.75
52 Set Screw [313-616-123] Set Screw 313-616-123
US$20.88
53 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
54 Extension Assembly [405-201-920] Extension Assembly i See notes section for usage notes on this part 405-201-920
Price on Request
55 Cap Screw [303-212-305] Cap Screw 303-212-305
US$1.90
56 Gearbox [405-200-720] Gearbox 405-200-720
US$1,405.69
57 Cone [410-440-400] Cone 410-440-400
US$25.22
58 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
59 Bolt [301-208-163] Bolt 301-208-163
US$1.05
60 Driveshaft [406-340-840] Driveshaft 406-340-840
US$461.24
62 Pin [406-346-410] Pin 406-346-410
US$6.17
63 Cap - Tube Insert Square [209-480-661] Cap - Tube Insert Square 209-480-661
US$21.88
64 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
65 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
66 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
US$33.38
67 Headstock [417-000-459] Headstock 417-000-459
Price on Request
68 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
69 Roller Scraper [404-480-483] Roller Scraper 404-480-483
US$82.00
