NOTES:

Part #	Number on image	Usage Notes
404-040-430	32	Prior to serial number EM72318094, check the technical register as a large variety of vee belts were used.

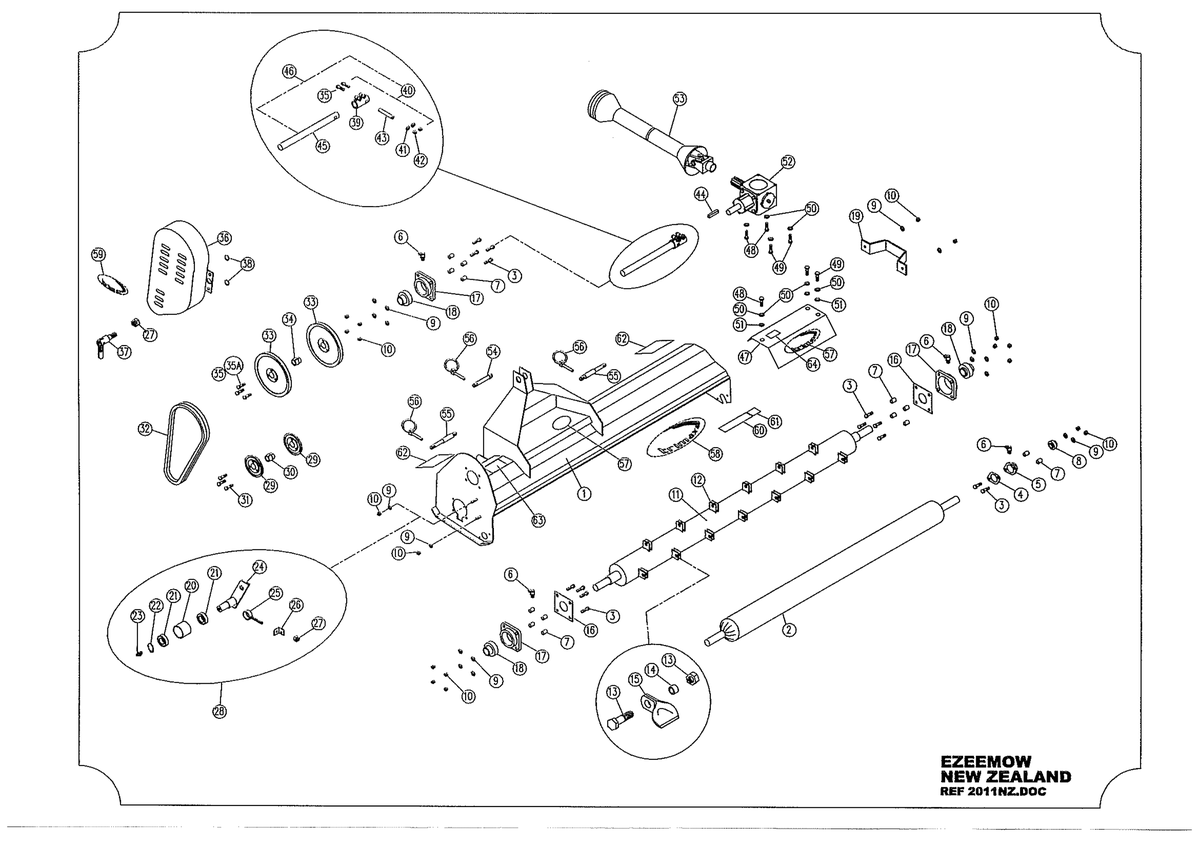

705 - Ezeemow S1 115 - Complete Assembly

Ezeemow S1 115

Grouped product items
No.	Product Name	Price
3	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
6	Grease Nipple 208-442-620 More Info >	US$4.02
7	Sleeve 402-480-740 More Info >	US$1.72
8	Bearing 401-020-000 More Info >	US$30.22
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
13	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	US$1.98
14	Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750 More Info >	US$3.19
23	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
31	Bolt 301-206-403 More Info >	US$0.19
32	Vee Belt i See notes section for usage notes on this part 404-040-430 More Info >	US$30.35
34	Bush 402-060-210 More Info >	US$27.23
35	Bolt 301-208-403 More Info >	US$1.64
37	Drop Latch - Anti-loose 423-080-400 More Info >	US$25.10
41	Washer - Spring 308-080-043 More Info >	US$0.29
42	Nut - Plain 307-208-013 More Info >	US$0.20
50	Washer - Spring 308-100-043 More Info >	US$0.29
51	Washer - Flat 308-100-013 More Info >	US$0.17
54	Pin - Linkage - Top Link 419-301-150 More Info >	US$13.68
55	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	US$25.34
56	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	US$2.23
58	Decal 424-100-350 More Info >	Price on Request
62	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	US$4.10
63	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	US$3.69
64	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	US$6.06
