NOTES:

Part # Number on image Usage Notes
405-200-661 6
  • For offset mowers.
402-464-061 56
  • Replaced with Loctite 635 (green), refer to ECN 1665 (July 2011). Applies from serial numbers 705-135-001-0035, 705-155-001-0056, 705-155-002-0047, 705-185-001-0038 and 705-185-002-0035.
406-340-260 61
  • Select 20hp or 40hp driveshaft depending on tractor.
406-340-560 61
  • Select 20hp or 40hp driveshaft depending on tractor.

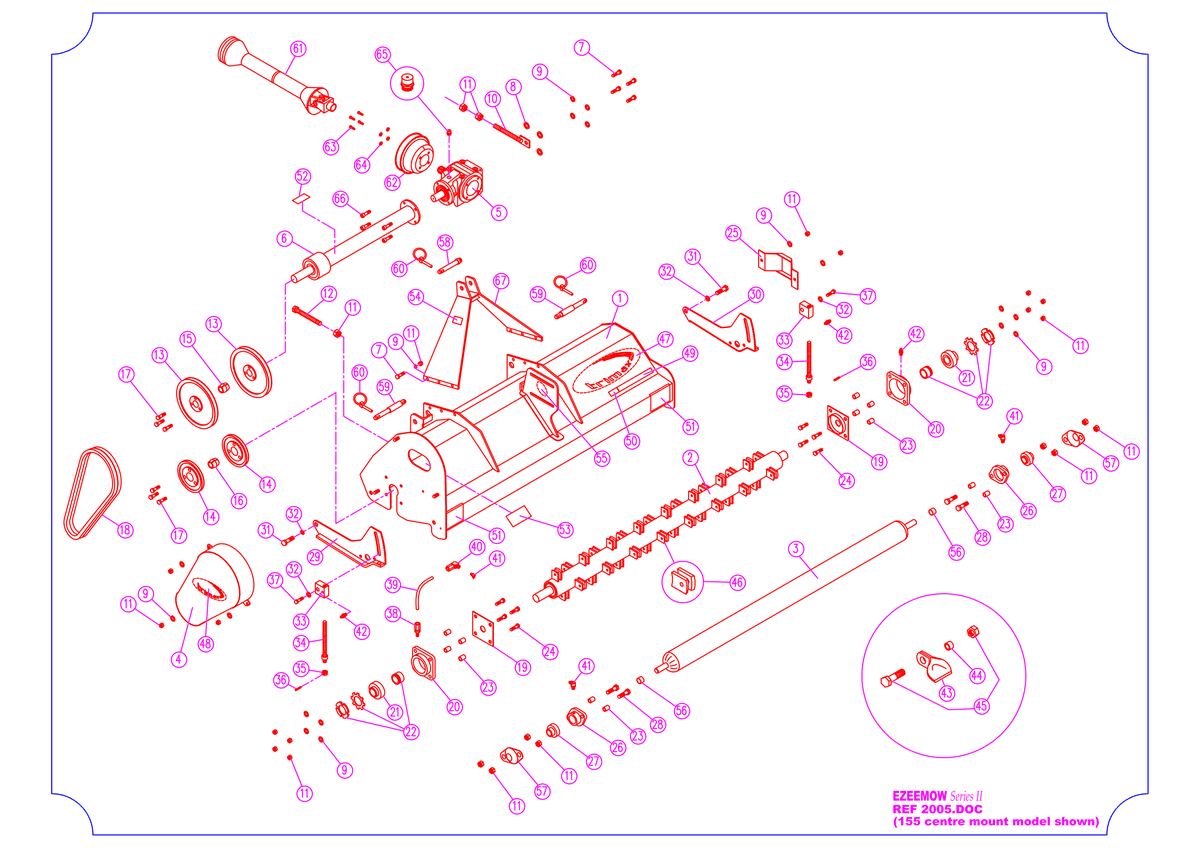

705 - Ezeemow S2 115 - Complete Assembly

Ezeemow S2 115

Grouped product items
No. Image Product Name Price Quantity
5 Gearbox [405-200-650] Gearbox 405-200-650
Price on Request
6 Extension Assembly [405-200-661] Extension Assembly i See notes section for usage notes on this part 405-200-661
Price on Request
7 Bolt [301-212-353] Bolt 301-212-353
US$2.98
8 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
9 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
10 Tension Adjuster [403-154-230] Tension Adjuster 403-154-230
US$10.42
11 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
13 Pulley [403-360-650] Pulley 403-360-650
US$83.35
14 Pulley [403-360-300] Pulley 403-360-300
US$63.88
15 Bush [402-060-150] Bush 402-060-150
US$13.57
16 Bush [402-060-210] Bush 402-060-210
US$27.23
17 Bolt [301-208-403] Bolt 301-208-403
US$1.64
18 Vee Belt [404-040-470] Vee Belt 404-040-470
US$31.13
19 Rotor Shield [410-152-290] Rotor Shield 410-152-290
US$46.50
20 Bearing Housing [401-021-000] Bearing Housing 401-021-000
US$43.66
21 Bearing [401-021-050] Bearing 401-021-050
US$51.22
22 Tapered Locking Assembly [401-021-150] Tapered Locking Assembly 401-021-150
US$36.34
23 Sleeve [402-480-740] Sleeve 402-480-740
US$1.72
24 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
25 Protector [410-152-480] Protector 410-152-480
US$59.29
26 Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - [401-150-300] Roller Bearing Assembly - FL205 UK205-16 1" x 52 x 35 - 401-150-300
US$54.34
28 Bolt [301-212-453] Bolt 301-212-453
US$3.72
29 Trailing Arm Weldment LH [412-152-461] Trailing Arm Weldment LH 412-152-461
US$138.13
30 Trailing Arm Weldment RH [412-152-462] Trailing Arm Weldment RH 412-152-462
US$138.13
31 Bolt [301-216-303] Bolt 301-216-303
US$1.77
32 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
33 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
US$26.95
34 Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 [412-152-420] Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 412-152-420
US$45.02
35 Nut - Special [309-216-013] Nut - Special 309-216-013
US$8.34
36 Roll Pin [202-447-980] Roll Pin 202-447-980
US$2.10
37 Bolt [301-216-553] Bolt 301-216-553
US$10.87
38 Fitting - Grease Line [450-152-892] Fitting - Grease Line 450-152-892
US$24.48
39 Tube - Grease Line No. 11 ��3/16"OD [903-007-031] Tube - Grease Line No. 11 ��3/16"OD 903-007-031
US$566.31
40 Fitting - Grease Line [450-152-822] Fitting - Grease Line 450-152-822
US$38.51
41 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
42 Grease Nipple - 1/4" Short [208-442-600] Grease Nipple - 1/4" Short 208-442-600
US$3.72
43 Flail [411-160-100] Flail 411-160-100
US$12.75
44 Flail Mounting Bush - 10mm - Trimax Specification - [402-060-750] Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750
US$3.19
45 Bolt - Hex Head M10 x 40 - Trimax Specification - [305-210-403] Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403
US$1.98
46 Flail Lug [411-240-000] Flail Lug 411-240-000
US$3.20
51 Decal - Safety - Blade Warning / Thrown Objects [424-100-950] Decal - Safety - Blade Warning / Thrown Objects 424-100-950
US$4.10
52 Decal - Instruction - PTO Speed 540RPM [424-100-900] Decal - Instruction - PTO Speed 540RPM 424-100-900
US$6.06
53 Decal - Instruction - Wash Warning Large [424-101-100] Decal - Instruction - Wash Warning Large 424-101-100
US$3.69
56 Sleeve [402-464-061] Sleeve i See notes section for usage notes on this part 402-464-061
US$6.79
57 Cap - Bearing Protector Cap - FL205 Housing [410-464-071] Cap - Bearing Protector Cap - FL205 Housing 410-464-071
US$24.44
58 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
59 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
60 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
61 Driveshaft [406-340-260] Driveshaft i See notes section for usage notes on this part 406-340-260
US$366.46
61 PTO Shaft [406-340-560] PTO Shaft i See notes section for usage notes on this part 406-340-560
US$369.00
62 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
64 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
65 Gearbox - Breather [405-207-207] Gearbox - Breather 405-207-207
US$21.66
