NOTES:

Part # Number on image Usage Notes
402-000-142 29
  • Taper Lock pulleys & bushes used on all mowers manufactured from Serial number onwards: TNZ: 751-135-301-1059356 / 706-135-2108-3002646, 751-155-302-1056125 / 706-155-2103-3002648, 751-185-302-1056443 / 706-185-289-3002548
301-212-253 59
  • (Option) only used with mowers sold with converter flap assembly options
412-152-461 64
  • Weld on skids available under part numbers: 412-152-463 – Skid Folding - LH, 412-152-464 – Skid Folding - RH
412-152-462 65
  • Weld on skids available under part numbers: 412-152-463 – Skid Folding - LH, 412-152-464 – Skid Folding - RH
301-208-403 67
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
402-060-150 68
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
402-060-210 69
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
403-360-300 70
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
403-360-650 71
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
405-200-661 35
  • Use these part numbers for non-Keyway Extension shaft only.
503-152-194 66
  • Use these part numbers for non-Keyway Drive End Stub rotor assembly only
405-000-090 35
  • For OFFSET 155 & 185 Mowers, Use P/N: 405-000-089 for Extension Shaft Assembly
405-200-664 35
  • Use these part numbers for non-Keyway Extension shaft only.
405-000-091 35
  • For OFFSET 155 & 185 Mowers, Use P/N: 405-000-089 for Extension Shaft Assembly
405-200-665 35
  • Use these part numbers for non-Keyway Extension shaft only.

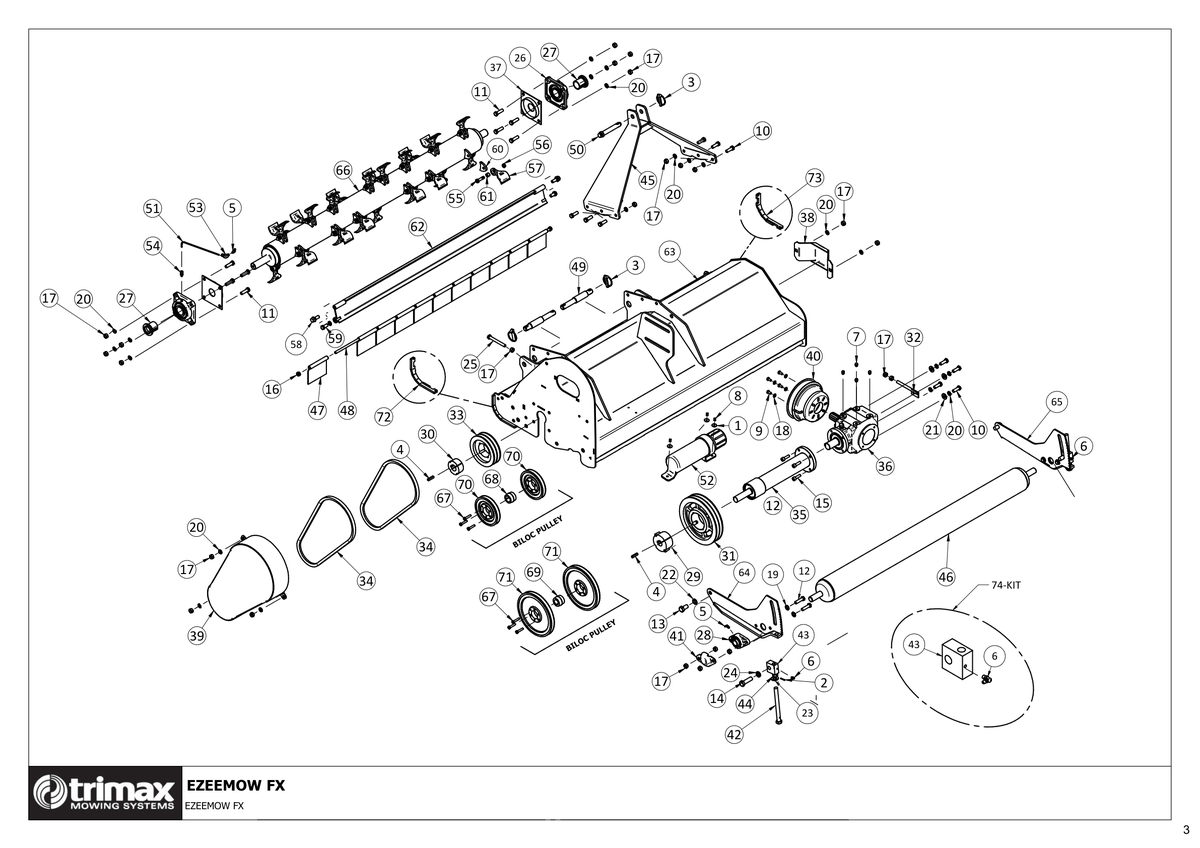

706 - Ezeemow FX - Ezeemow FX

Ezeemow FX, Ezeemow FX 135, Ezeemow FX 155, Ezeemow FX 185

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Roll Pin [202-447-980] Roll Pin 202-447-980
US$2.10
3 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
4 Key [205-000-004] Key 205-000-004
Price on Request
5 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
6 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
7 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
8 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
9 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
10 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
11 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
12 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
13 Bolt - Hex Head - M16 x 30 - Trimax Specification [301-216-303] Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303
US$1.77
14 Bolt - Hex Head - M16 x 55 - Trimax Specification [301-216-553] Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553
US$10.87
15 Cap Screw - Socket Head - M10 x 35 - Trimax Specification [303-210-353] Cap Screw - Socket Head - M10 x 35 - Trimax Specification 303-210-353
US$1.49
16 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
17 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
18 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
19 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
20 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
21 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
22 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
23 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
24 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
26 Rotor Bearing Assembly - Trimax Specification - [401-000-001] Rotor Bearing Assembly - Trimax Specification - 401-000-001
US$76.50
27 Tapered Locking Assembly [401-021-150] Tapered Locking Assembly 401-021-150
US$36.34
28 Roller Bearing Assembly - Trimax Specification [401-150-300] Roller Bearing Assembly - Trimax Specification 401-150-300
US$54.34
29 Bush - Taperlock - Trimax Specification [402-000-142] Bush - Taperlock - Trimax Specification i See notes section for usage notes on this part 402-000-142
Price on Request
32 Tension Adjuster [403-154-230] Tension Adjuster 403-154-230
US$10.42
33 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
34 Vee Belt - Trimax Specification [404-040-470] Vee Belt - Trimax Specification 404-040-470
US$31.13
36 Gearbox [405-200-650] Gearbox 405-200-650
Price on Request
37 Rotor Shield [410-152-290] Rotor Shield 410-152-290
US$46.50
38 Protector [410-152-480] Protector 410-152-480
US$59.29
40 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
41 Cap - Bearing Protector Cap [410-464-071] Cap - Bearing Protector Cap 410-464-071
US$24.44
42 Set Screw [412-000-610] Set Screw 412-000-610
Price on Request
43 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
US$26.95
44 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
US$22.17
49 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
50 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
52 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
53 Fitting - Grease Line [450-152-822] Fitting - Grease Line 450-152-822
US$38.51
54 Fitting - Grease Line [450-152-892] Fitting - Grease Line 450-152-892
US$24.48
58 Shoulder Bolt - Converter Flap [450-000-056] Shoulder Bolt - Converter Flap 450-000-056
US$18.75
59 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification i See notes section for usage notes on this part 301-212-253
US$2.26
64 Trailing Arm Weldment LH [412-152-461] Trailing Arm Weldment LH i See notes section for usage notes on this part 412-152-461
US$138.13
65 Trailing Arm Weldment RH [412-152-462] Trailing Arm Weldment RH i See notes section for usage notes on this part 412-152-462
US$138.13
67 Bolt - Hex Head - M8 x 40 - Trimax Specification [301-208-403] Bolt - Hex Head - M8 x 40 - Trimax Specification i See notes section for usage notes on this part 301-208-403
US$1.64
68 Bush [402-060-150] Bush i See notes section for usage notes on this part 402-060-150
US$13.57
69 Bush [402-060-210] Bush i See notes section for usage notes on this part 402-060-210
US$27.23
70 Pulley [403-360-300] Pulley i See notes section for usage notes on this part 403-360-300
US$63.88
71 Pulley [403-360-650] Pulley i See notes section for usage notes on this part 403-360-650
US$83.35
35 Extension Shaft - Assembly - 135/155/185 OS - Keyway [405-000-089] Extension Shaft - Assembly - 135/155/185 OS - Keyway 405-000-089
Price on Request
35 Extension Assembly [405-200-661] Extension Assembly i See notes section for usage notes on this part 405-200-661
Price on Request
47 Flap - Front Flap Weldment [417-000-600] Flap - Front Flap Weldment 417-000-600
US$22.03
55 Bolt - Hex Head M10 x 40 - Trimax Specification - [305-210-403] Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403
US$1.98
56 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
US$0.60
57 Flail - Forged Flail - Ezeemow and Flaildek - Trimax Specification [411-160-105] Flail - Forged Flail - Ezeemow and Flaildek - Trimax Specification 411-160-105
US$12.75
61 Flail Mounting Bush - 10mm - Trimax Specification - [402-060-750] Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750
US$3.19
66 Rotor [503-152-194] Rotor i See notes section for usage notes on this part 503-152-194
Price on Request
35 Extension Shaft - Assembly - 155 CM - Keyway [405-000-090] Extension Shaft - Assembly - 155 CM - Keyway i See notes section for usage notes on this part 405-000-090
Price on Request
35 Extension Assembly [405-200-664] Extension Assembly i See notes section for usage notes on this part 405-200-664
Price on Request
46 Roller Weldment 155 [414-152-302] Roller Weldment 155 414-152-302
US$280.94
48 Flap Rod 155 [417-000-602] Flap Rod 155 417-000-602
US$43.11
62 Convertor Flap Weldment 155 [417-000-641] Convertor Flap Weldment 155 417-000-641
US$339.71
35 Extension Shaft - Assembly - 185 CM - Keyway [405-000-091] Extension Shaft - Assembly - 185 CM - Keyway i See notes section for usage notes on this part 405-000-091
Price on Request
35 Extension Assembly [405-200-665] Extension Assembly i See notes section for usage notes on this part 405-200-665
Price on Request
46 Roller Weldment 185 [414-140-010] Roller Weldment 185 414-140-010
US$436.65
48 Flap Rod 185 [417-000-603] Flap Rod 185 417-000-603
US$52.69
62 Convertor Flap Weldment 185 [417-000-642] Convertor Flap Weldment 185 417-000-642
US$374.85
