NOTES:

Part # Number on image Usage Notes
412-000-610 31
  • Use part number 412-152-420 for Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2
401-000-047 40
  • Item number 40 & 41 are only used on black steel rim configuration.
402-000-155 41
  • Item number 40 & 41 are only used on black steel rim configuration.
401-000-012 43
  • Item number 42 43 & 44 are only used on white steel rim configuration.

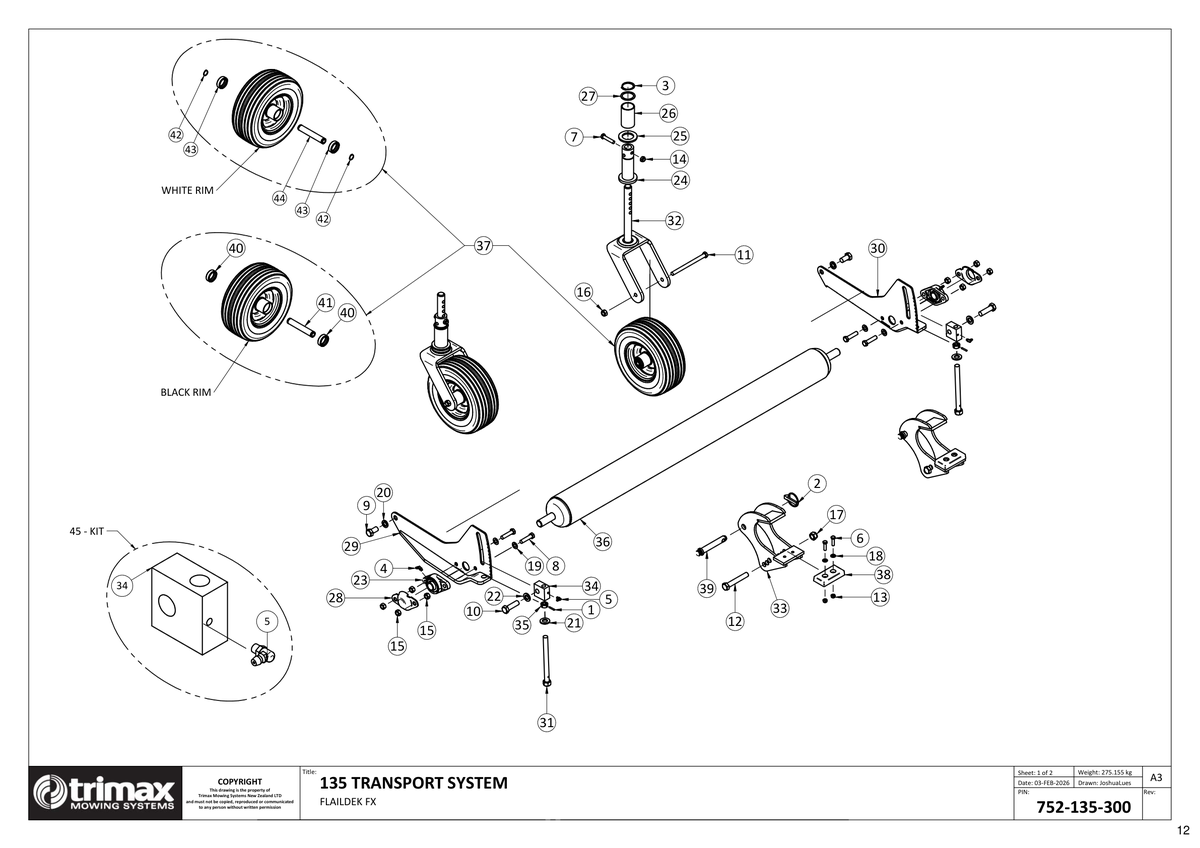

711 - Flaildek FX 135 - Transport System

FlailDek FX 135

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
US$2.10
2 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
3 Circlip/Snap Ring - External [204-820-402] Circlip/Snap Ring - External 204-820-402
US$7.14
4 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
5 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
6 Bolt [301-208-303] Bolt 301-208-303
US$0.29
7 Bolt [301-210-503] Bolt 301-210-503
US$1.64
8 Bolt [301-212-503] Bolt 301-212-503
US$3.87
9 Bolt [301-216-303] Bolt 301-216-303
US$1.77
10 Bolt [301-216-553] Bolt 301-216-553
US$10.87
11 Bolt [301-612-163] Bolt 301-612-163
US$5.68
12 Bolt [301-616-103] Bolt 301-616-103
US$10.87
13 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
14 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
15 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
16 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
17 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
18 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
20 Washer [308-160-043] Washer 308-160-043
US$0.60
21 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
22 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
23 Bearing Assembly [401-150-300] Bearing Assembly 401-150-300
US$54.34
24 Pivot Boss [402-152-110] Pivot Boss 402-152-110
US$135.30
25 Thrust Washer [402-152-120] Thrust Washer 402-152-120
US$21.53
26 Pivot Bush [402-152-130] Pivot Bush 402-152-130
US$81.18
27 Retaining Washer [402-152-140] Retaining Washer 402-152-140
US$16.87
28 Cap [410-464-071] Cap 410-464-071
US$24.44
29 Trailing Arm Weldment LH [412-000-380] Trailing Arm Weldment LH 412-000-380
US$138.13
30 Trailing Arm Weldment RH [412-000-381] Trailing Arm Weldment RH 412-000-381
US$138.13
31 Set Screw [412-000-610] Set Screw i See notes section for usage notes on this part 412-000-610
Price on Request
32 Castor Fork Weldment - 5 hole [412-152-560] Castor Fork Weldment - 5 hole 412-152-560
US$184.49
33 Linkage Adjuster Weldment [412-154-200] Linkage Adjuster Weldment 412-154-200
US$172.20
34 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
US$26.95
35 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
US$22.17
37 Wheel - Semi Pneumatic [416-000-076] Wheel - Semi Pneumatic 416-000-076
US$175.72
38 Pad [417-153-140] Pad 417-153-140
US$36.66
39 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
40 Bearing 6204-2RS [401-000-047] Bearing 6204-2RS i See notes section for usage notes on this part 401-000-047
Price on Request
41 Sleeve - Castor Axle Ø13 X Ø24 X 120 [402-000-155] Sleeve - Castor Axle Ø13 X Ø24 X 120 i See notes section for usage notes on this part 402-000-155
Price on Request
43 Bearing [401-000-012] Bearing i See notes section for usage notes on this part 401-000-012
US$30.02
