NOTES:

Part #	Number on image	Usage Notes
402-060-210	9	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
403-360-300	13	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
404-040-430	15	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
405-200-080	16	For Kubota New Holland and Shibura Power Units Only
405-200-090	17	For John Deer and Iseki Power Units Only

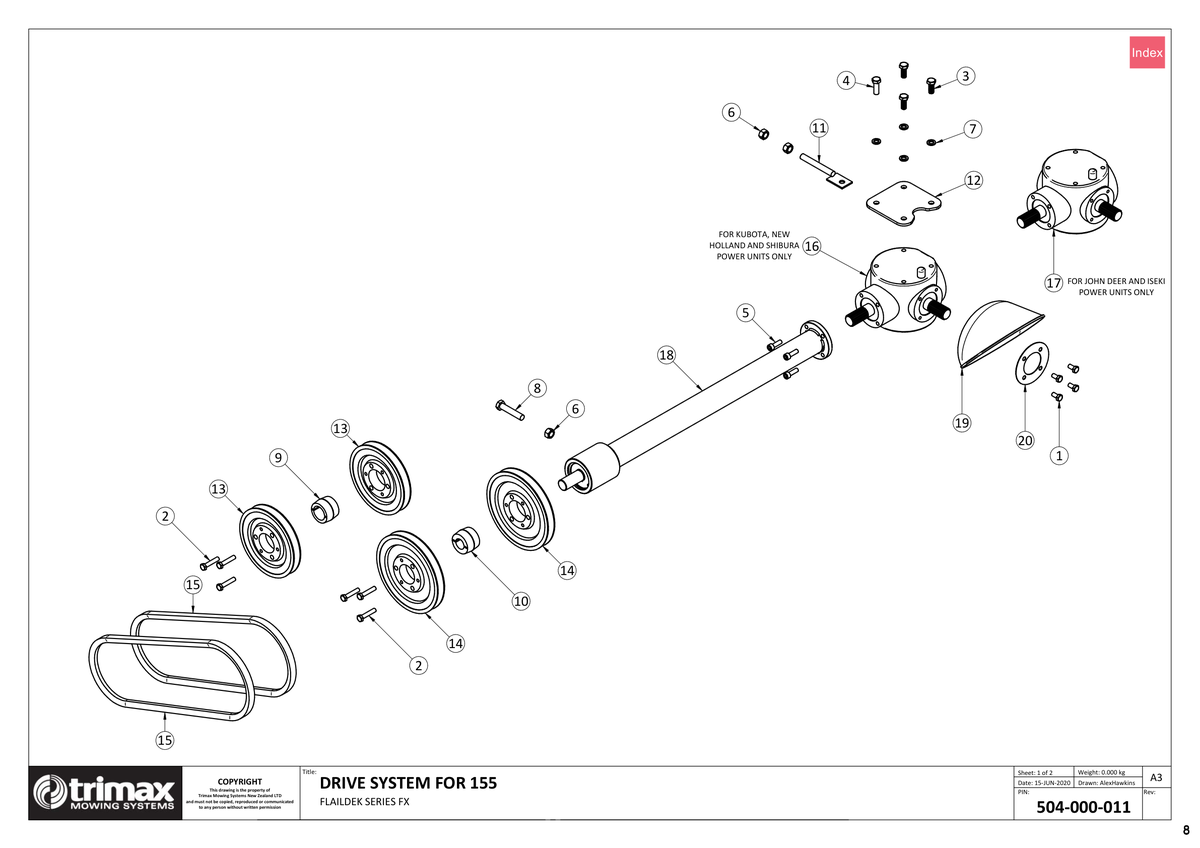

711 - Flaildek FX 155 - Drive System - Biloc

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Bolt 301-208-163 More Info >	US$1.05
2	Bolt 301-208-403 More Info >	US$1.64
3	Bolt 301-210-253 More Info >	US$0.47
4	Bolt 301-210-303 More Info >	US$0.50
5	Cap Screw 303-208-255 More Info >	US$0.82
6	Nut - Plain 307-212-013 More Info >	US$0.60
7	Washer - Spring 308-100-043 More Info >	US$0.29
8	Set Screw 313-212-603 More Info >	Price on Request
9	Bush i See notes section for usage notes on this part 402-060-210 More Info >	US$27.23
10	Bush 402-060-240 More Info >	US$27.23
11	Tension Adjuster 403-154-210 More Info >	US$25.92
12	Slide Plate 403-154-250 More Info >	US$12.59
13	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	US$63.88
14	Pulley 403-360-500 More Info >	US$59.27
15	Vee Belt i See notes section for usage notes on this part 404-040-430 More Info >	US$30.35
16	Kubota Gearbox i See notes section for usage notes on this part 405-200-080 More Info >	US$1,316.08
17	John Deere Gearbox i See notes section for usage notes on this part 405-200-090 More Info >	US$1,045.48
18	155 Extension Assembly 405-200-096 More Info >	US$1,100.82
19	Cone 410-440-380 More Info >	US$49.33
20	Plate - PTO Cone Retainer 450-440-381 More Info >	US$6.77
