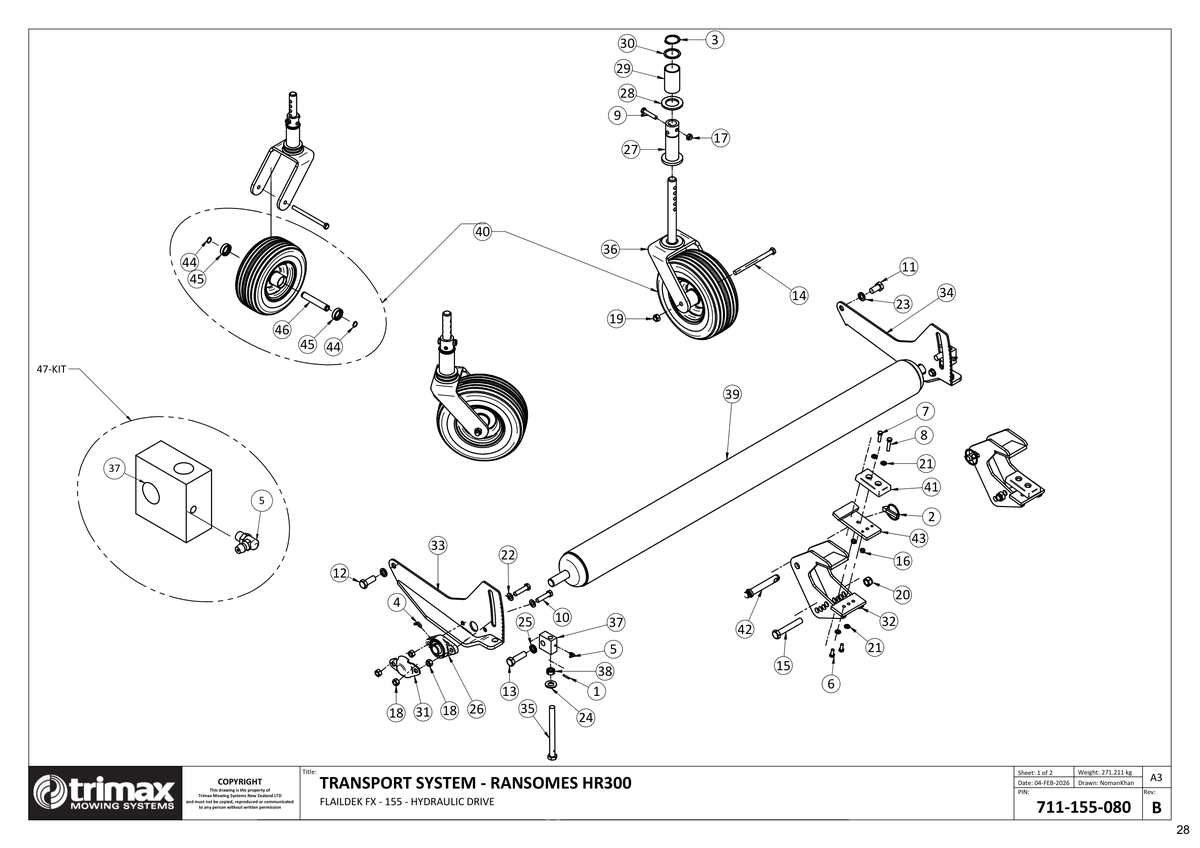

711 - Flaildek FX 155 - Transport System - Ransomes HR300

FlailDek FX 155

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
US$2.10
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
3 Circlip/Snap Ring - External [204-820-402] Circlip/Snap Ring - External 204-820-402
US$7.14
4 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
5 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
6 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
7 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
8 Bolt - Hex Head - M8 x 40 - Trimax Specification [301-208-403] Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403
US$1.64
9 Bolt - Hex Head - M10 x 50 - Trimax Specification [301-210-503] Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503
US$1.64
10 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
11 Bolt - Hex Head - M16 x 30 - Trimax Specification [301-216-303] Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303
US$1.77
12 Bolt - Hex Head - M16 x 40 - Trimax Specification [301-216-403] Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403
US$1.43
13 Bolt - Hex Head - M16 x 55 - Trimax Specification [301-216-553] Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553
US$10.87
14 Bolt - Hex Head - M12 x 160 - Trimax Specification [301-612-163] Bolt - Hex Head - M12 x 160 - Trimax Specification 301-612-163
US$5.68
15 Bolt - Hex Head - M16 x 100 - Trimax Specification [301-616-103] Bolt - Hex Head - M16 x 100 - Trimax Specification 301-616-103
US$10.87
16 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
17 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
18 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
19 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
20 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
21 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
22 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
23 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
24 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
25 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
26 Roller Bearing Assembly - Trimax Specification [401-150-300] Roller Bearing Assembly - Trimax Specification 401-150-300
US$54.34
27 Pivot Boss [402-152-110] Pivot Boss 402-152-110
US$135.30
28 Thrust Washer [402-152-120] Thrust Washer 402-152-120
US$21.53
29 Pivot Bush [402-152-130] Pivot Bush 402-152-130
US$81.18
30 Retaining Washer [402-152-140] Retaining Washer 402-152-140
US$16.87
31 Cap - Bearing Protector Cap [410-464-071] Cap - Bearing Protector Cap 410-464-071
US$24.44
33 Trailing Arm Weldment LH [412-000-380] Trailing Arm Weldment LH 412-000-380
US$138.13
34 Trailing Arm Weldment RH [412-000-381] Trailing Arm Weldment RH 412-000-381
US$138.13
35 Set Screw [412-000-610] Set Screw 412-000-610
Price on Request
36 Castor Fork Weldment - 5 hole [412-152-560] Castor Fork Weldment - 5 hole 412-152-560
US$184.49
37 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
US$26.95
38 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
US$22.17
39 Roller Weldment 155 [414-152-302] Roller Weldment 155 414-152-302
US$280.94
40 Wheel - Semi Pneumatic [416-000-076] Wheel - Semi Pneumatic 416-000-076
US$175.72
41 Pad [417-153-140] Pad 417-153-140
US$36.66
42 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
43 Linkage Adaptor Weldment [420-000-084] Linkage Adaptor Weldment 420-000-084
Price on Request
45 Bearing [401-000-012] Bearing 401-000-012
US$30.02
