NOTES:

Part #	Number on image	Usage Notes
403-360-400	3	When fitting to an Iseki power unit the rotor pulley needs to be changed. Use 403-360-500 pulley. From s/n 711-185-030-0004 the pulleys were reversed and this is the recommended fitting for all mowers including prior s/n.
403-360-300	5	When fitting to an Iseki power unit the rotor pulley needs to be changed. Use 403-360-500 pulley. From s/n 711-185-030-0004 the pulleys were reversed and this is the recommended fitting for all mowers including prior s/n.

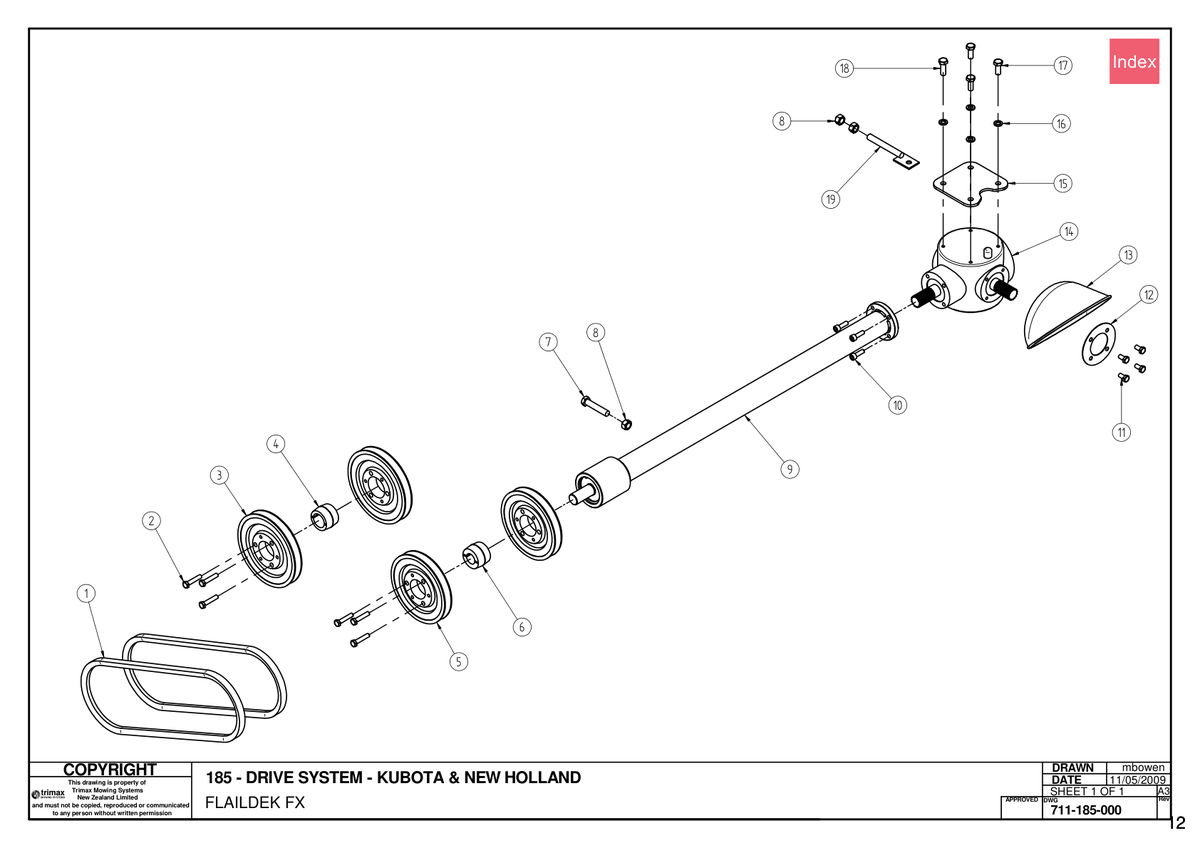

711 - Flaildek FX 185 - Drive System - NH & Kubota - Biloc

FlailDek FX 185

Grouped product items
No.	Product Name	Price
1	Vee Belt 404-040-422 More Info >	US$35.37
2	Bolt 301-208-403 More Info >	US$1.64
3	Pulley i See notes section for usage notes on this part 403-360-400 More Info >	US$54.18
4	Bush 402-060-210 More Info >	US$27.23
5	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	US$63.88
6	Bush 402-060-240 More Info >	US$27.23
7	Set Screw 313-212-603 More Info >	Price on Request
8	Nut - Plain 307-212-013 More Info >	US$0.60
9	185 Extension Assembly 405-200-126 More Info >	US$1,027.03
10	Cap Screw 303-208-255 More Info >	US$0.82
11	Bolt 301-208-163 More Info >	US$1.05
12	Plate - PTO Cone Retainer 450-440-381 More Info >	US$6.77
13	Cone 410-440-380 More Info >	US$49.33
14	Kubota Gearbox 405-200-080 More Info >	US$1,316.08
15	Slide Plate 403-154-250 More Info >	US$12.59
16	Washer - Spring 308-100-043 More Info >	US$0.29
17	Bolt 301-210-253 More Info >	US$0.47
18	Bolt 301-210-303 More Info >	US$0.50
19	Tension Adjuster 403-154-210 More Info >	US$25.92
