NOTES:

Part # Number on image Usage Notes
301-616-103 7
  • An oversize O.D. bush is available on request, use P/N 402-061-100
401-021-870 45
  • Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-015 48
  • Front wheel can be ordered as an assembly, use P/N 416-449-010
404-320-127 89
  • Not fitted in all markets

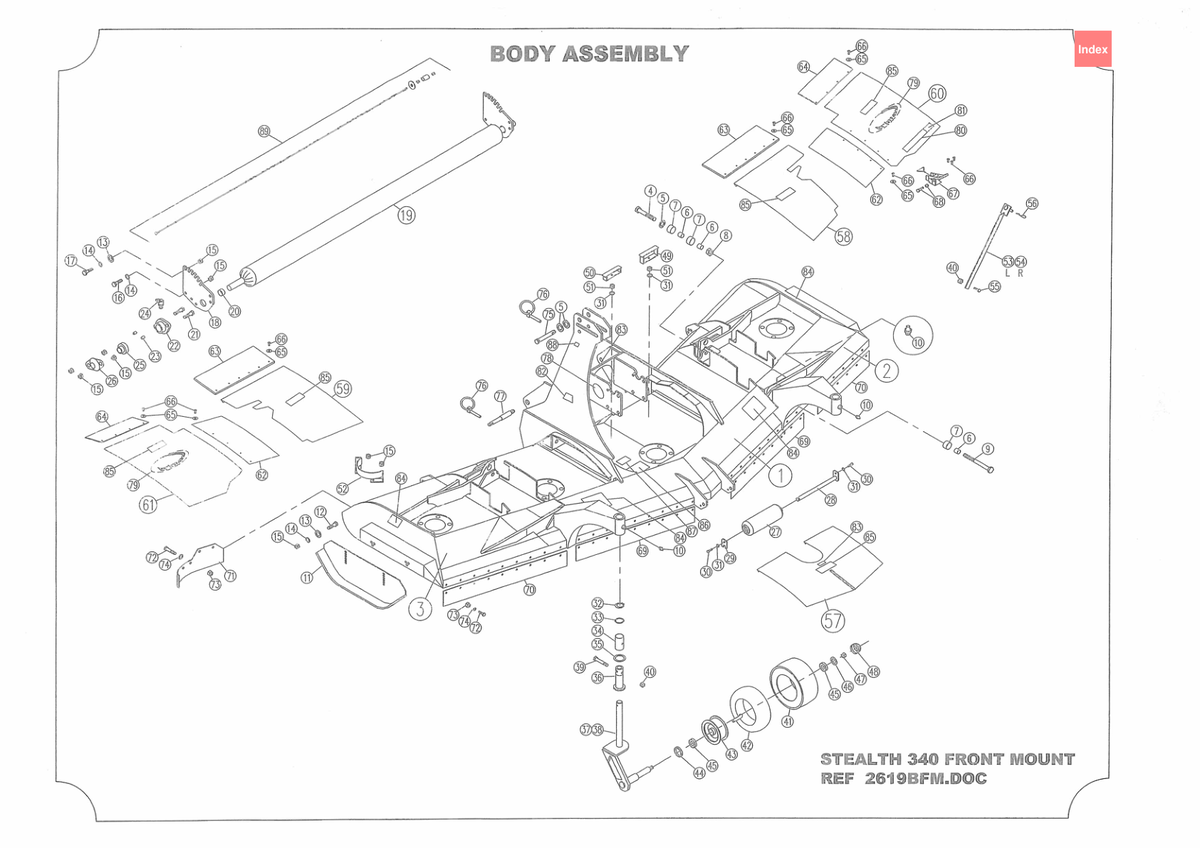

715 - 340 Stealth S1 FM - Body Assembly

Stealth S1 FM 340

Grouped product items
No. Image Product Name Price Quantity
5 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
7 Bolt [301-616-103] Bolt i See notes section for usage notes on this part 301-616-103
US$10.87
8 Nut - Plain [307-220-013] Nut - Plain 307-220-013
US$1.29
9 Bolt [301-620-203] Bolt 301-620-203
US$14.29
10 Grease Nipple [208-442-600] Grease Nipple 208-442-600
US$3.72
12 Bolt [301-212-353] Bolt 301-212-353
US$2.98
13 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
15 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
17 Bolt [301-212-403] Bolt 301-212-403
US$8.93
18 Quadrant - Roller Mounting ��6" Rollers ST [412-320-101] Quadrant - Roller Mounting ��6" Rollers ST 412-320-101
US$74.97
20 Sleeve [402-464-062] Sleeve 402-464-062
US$7.13
21 Bolt [301-212-503] Bolt 301-212-503
US$3.87
22 Bearing Assembly [401-020-701] Bearing Assembly 401-020-701
US$51.75
23 Sleeve [402-480-740] Sleeve 402-480-740
US$1.72
24 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
26 Cap [410-464-072] Cap 410-464-072
US$24.48
27 Roller - Front Anti-scalp [414-320-030] Roller - Front Anti-scalp 414-320-030
US$599.76
28 Axle - Anti-scalp Roller [419-320-040] Axle - Anti-scalp Roller 419-320-040
US$274.11
30 Bolt [301-208-203] Bolt 301-208-203
US$1.05
31 Washer - Spring [308-080-043] Washer - Spring 308-080-043
US$0.29
32 Circlip/Snap Ring - External [204-820-522] Circlip/Snap Ring - External 204-820-522
US$4.07
33 Washer [412-320-090] Washer 412-320-090
US$20.55
34 Bush - Pivot [402-320-060] Bush - Pivot 402-320-060
US$122.85
35 Washer - Thrust [402-320-080] Washer - Thrust 402-320-080
US$45.02
36 Boss - Pivot [402-320-070] Boss - Pivot 402-320-070
US$277.27
37 Front Castor Weldment - LH [412-320-051] Front Castor Weldment - LH 412-320-051
US$726.27
38 Front Castor Weldment - RH [412-320-052] Front Castor Weldment - RH 412-320-052
US$726.27
39 Bolt [301-212-653] Bolt 301-212-653
US$3.72
40 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
45 Bearing - Tapered Roller [401-021-870] Bearing - Tapered Roller i See notes section for usage notes on this part 401-021-870
Price on Request
46 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
47 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
48 Grease Cap - Front Castor [416-449-015] Grease Cap - Front Castor i See notes section for usage notes on this part 416-449-015
US$11.07
51 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
55 Bolt [301-212-453] Bolt 301-212-453
US$3.72
58 Cover [410-330-374] Cover 410-330-374
US$202.85
59 Cover [410-330-373] Cover 410-330-373
US$202.85
61 Cover [410-330-383] Cover 410-330-383
US$186.45
62 Filler Rubber [410-330-375] Filler Rubber 410-330-375
US$33.97
65 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
66 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
67 Adjustable Catch - Covers [423-080-220] Adjustable Catch - Covers 423-080-220
US$25.50
72 Bolt [301-206-203] Bolt 301-206-203
US$0.12
73 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
74 Washer - Fender [108-041-613] Washer - Fender 108-041-613
Price on Request
75 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
76 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
77 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
83 Decal - Instruction - PTO Speed 540RPM [424-100-900] Decal - Instruction - PTO Speed 540RPM 424-100-900
US$6.06
84 Decal - Safety - Blade Warning / Thrown Objects [424-100-950] Decal - Safety - Blade Warning / Thrown Objects 424-100-950
US$4.10
86 Decal - Instruction - Wash Warning Large [424-101-100] Decal - Instruction - Wash Warning Large 424-101-100
US$3.69
89 Roller Scraper [404-320-127] Roller Scraper i See notes section for usage notes on this part 404-320-127
US$82.00
