NOTES:

Part #	Number on image	Usage Notes
401-020-801	12	Optional Sealmaster bearing and housing 401-207-001

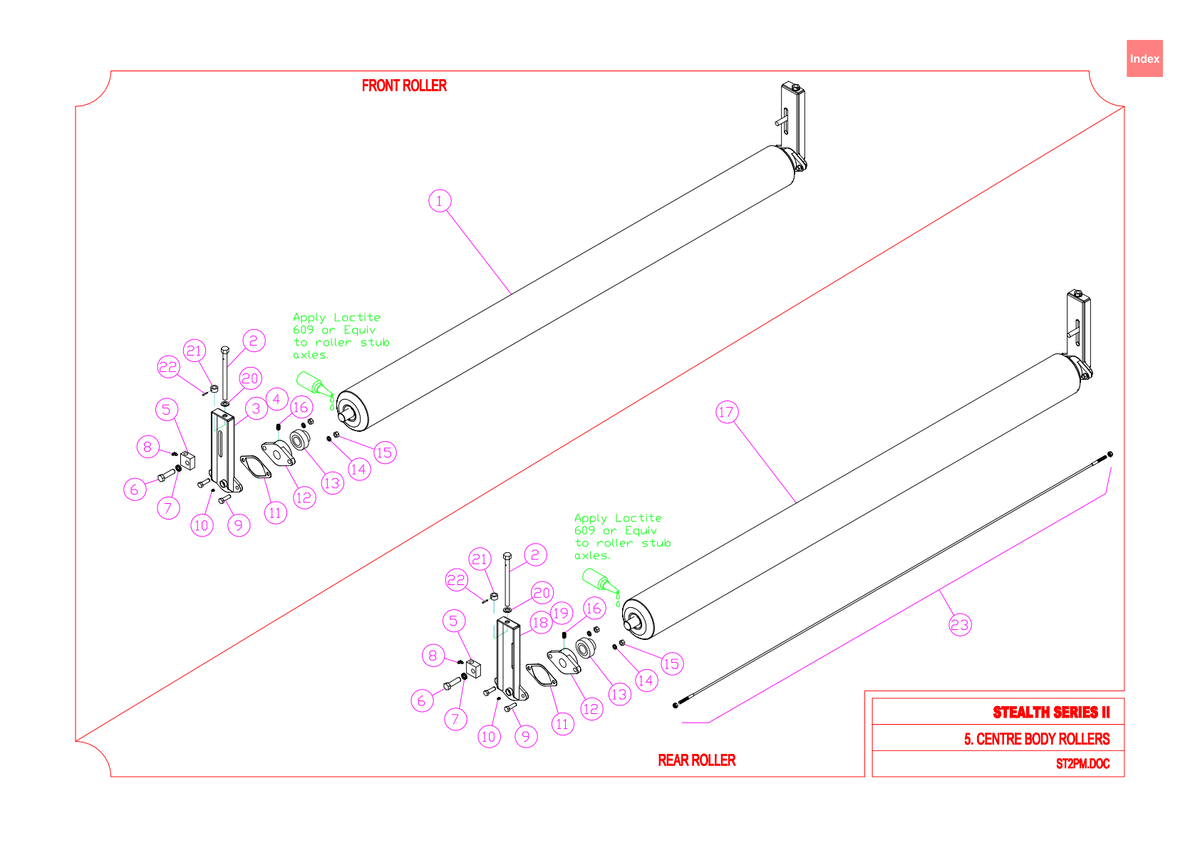

716 - Stealth S2 340 - Centre Body Rollers

Stealth S2 340

Grouped product items
No.	Product Name	Price
5	Height Adjuster Block 412-330-273 More Info >	US$26.95
6	Bolt 301-216-653 More Info >	US$5.20
7	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
8	Grease Nipple 208-442-650 More Info >	US$4.76
9	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
10	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
11	Gasket - Paper - FL207 Roller Bearing Housing 401-020-802 More Info >	US$4.92
12	Roller Bearing Kit - UCFL207 1-3/8" with Gasket and Grub Screw - i See notes section for usage notes on this part 401-020-801 More Info >	US$56.25
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
16	Grub Screw 144-104-025 More Info >	US$2.53
17	Roller Weldment - Body Rear 414-320-025 More Info >	US$463.09
20	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
21	Collar - Height Adjuster 412-850-260 More Info >	US$22.17
22	Roll Pin 202-447-980 More Info >	US$2.10
