NOTES:

Part #	Number on image	Usage Notes
401-020-201	10	Optional Sealmaster bearing and housing 401-205-001
301-216-403	28	Side channel modified 07/01/2008 to accommodate additional mounting point

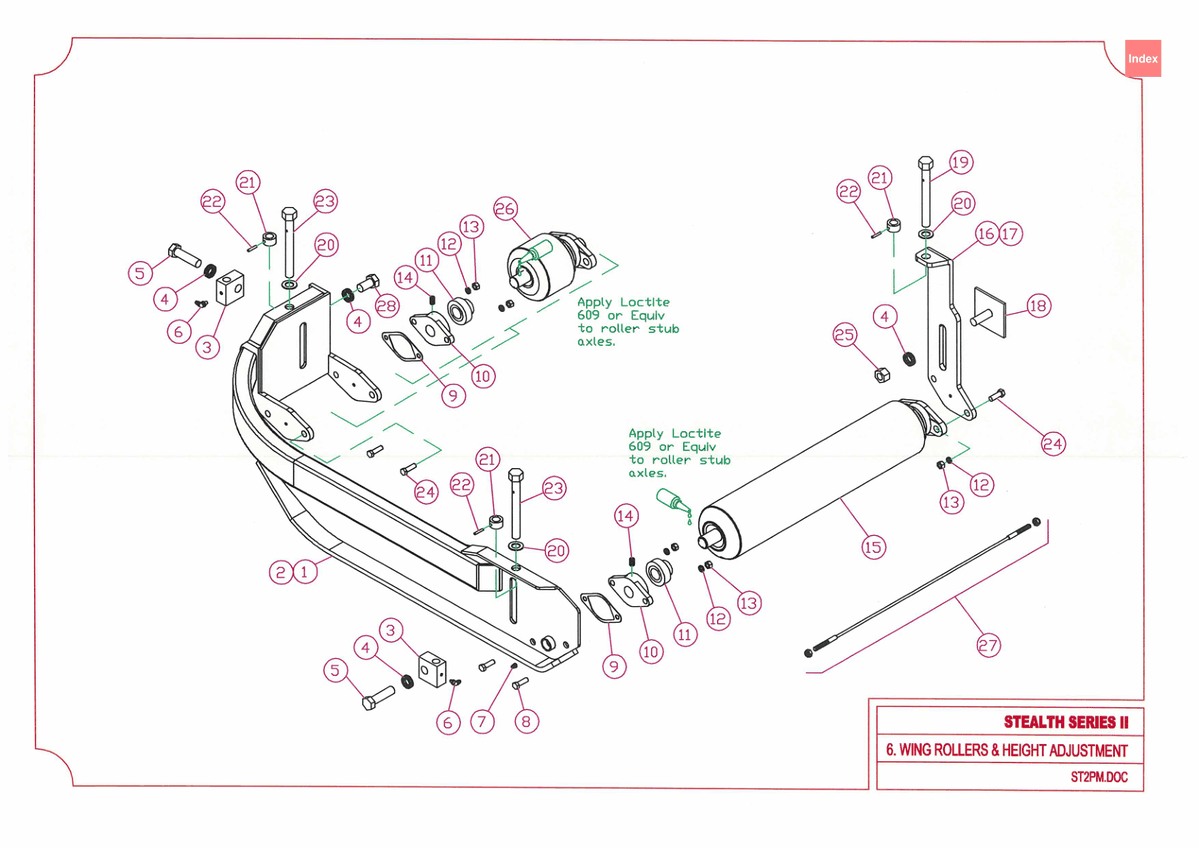

716 - Stealth S2 340 - Wing Rollers & Height Adjusters

Stealth S2 340

Grouped product items
No.	Product Name	Price
3	Height Adjuster Block 412-330-273 More Info >	US$26.95
4	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
5	Bolt - Hex Head - M16 x 55 - Trimax Specification 301-216-553 More Info >	US$10.87
6	Grease Nipple - Trimax Specification 208-442-650 More Info >	US$4.76
7	Grease Nipple - Trimax Specification 208-442-600 More Info >	US$3.72
8	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
10	Roller Bearing Kit i See notes section for usage notes on this part 401-020-201 More Info >	US$83.35
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
13	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
14	Grub Screw 144-104-025 More Info >	US$2.53
20	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
21	Collar - Height Adjuster 412-850-260 More Info >	US$22.17
22	Roll Pin 202-447-980 More Info >	US$2.10
24	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	US$8.93
25	Nut - Plain 307-216-013 More Info >	US$1.05
28	Bolt - Hex Head - M16 x 40 - Trimax Specification i See notes section for usage notes on this part 301-216-403 More Info >	US$1.43
