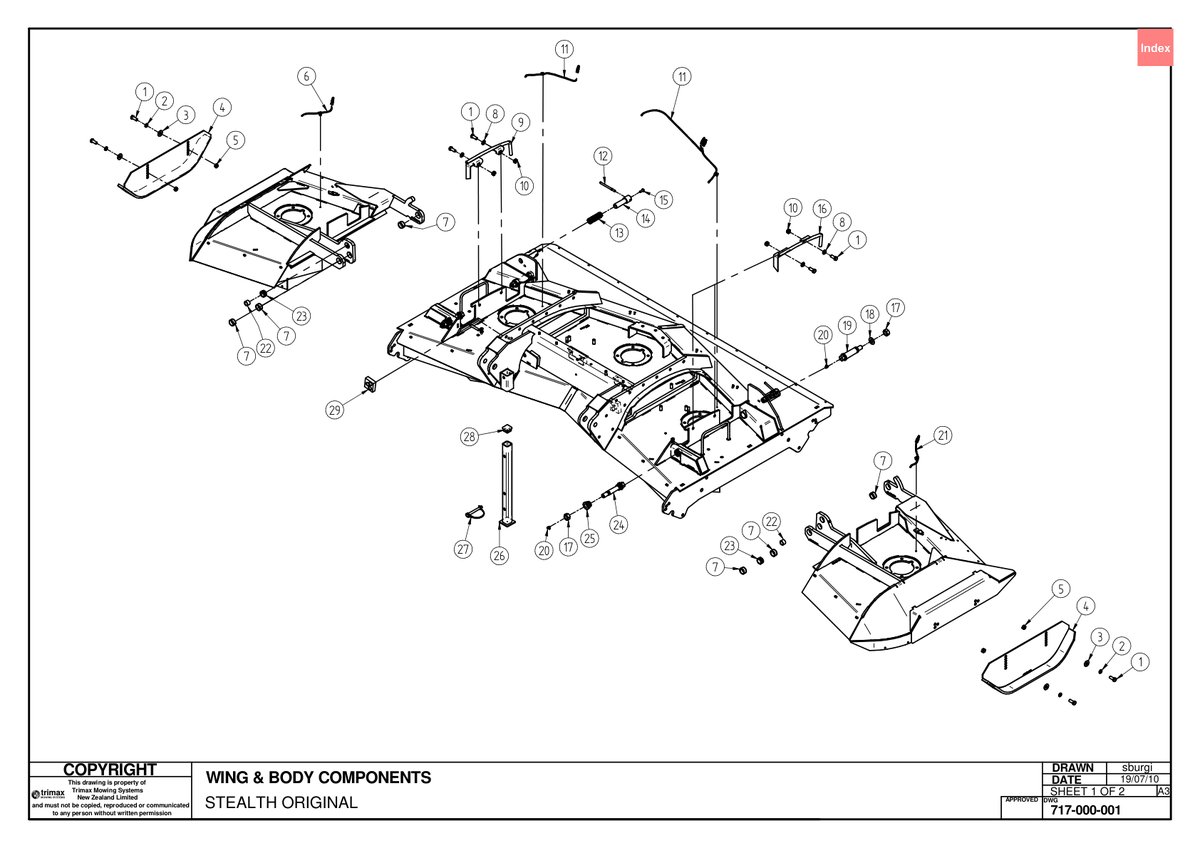

717 - Stealth Original 340 - Mower Body and Wing Components

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
2	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
3	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
6	Tube - Grease Line No. 11 ��3/16"OD 903-007-031 More Info >	US$566.31
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
9	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
12	Unlocking Lever 419-000-027 More Info >	Price on Request
13	Spring - Compression 207-000-005 More Info >	Price on Request
14	Unlocking Pin 419-000-028 More Info >	Price on Request
15	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	US$1.05
16	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
17	Nut - Plain 307-220-013 More Info >	US$1.29
18	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
20	Grease Nipple - Trimax Specification 208-442-650 More Info >	US$4.76
26	Support Leg Assembly 413-480-661 More Info >	Price on Request
27	Pin 406-346-410 More Info >	US$6.17
28	Cap - Tube Insert Square 209-480-661 More Info >	US$21.88
