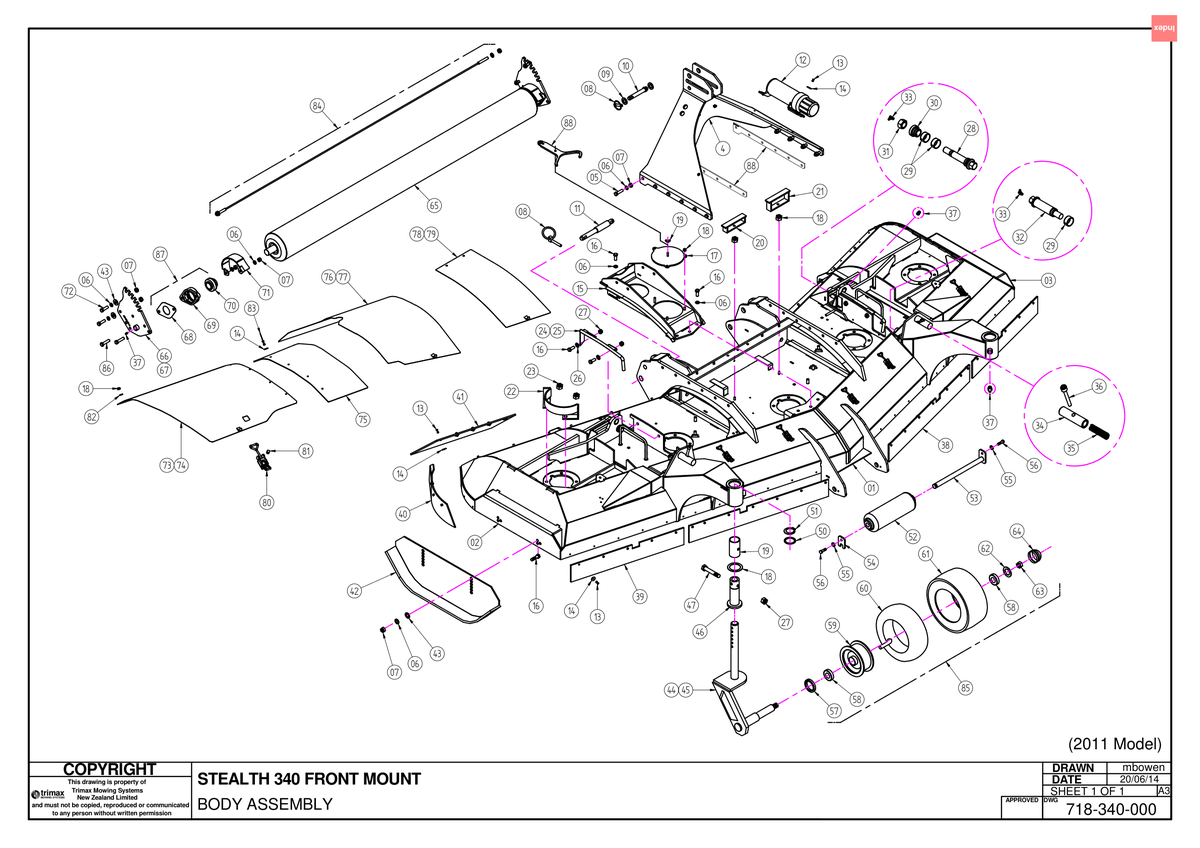

718 - Stealth Original FM 340 - Body Assembly

Stealth Original FM 340

Grouped product items
No.	Product Name	Price
4	Headstock Weldment 413-000-060 More Info >	Price on Request
5	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	US$3.87
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
8	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	US$2.23
9	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
10	Pin - Linkage - Top Link 419-301-150 More Info >	US$13.68
11	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	US$25.34
12	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	US$33.38
13	Blind Rivet 213-000-004 More Info >	US$1.22
14	Washer - Fender 108-031-413 More Info >	US$0.17
17	Pulley Cover Weldment 417-000-893 More Info >	Price on Request
18	Nut - Nyloc 307-208-053 More Info >	US$1.34
19	Nut - Wing 307-208-263 More Info >	Price on Request
23	Nut - Half 307-212-023 More Info >	US$0.80
24	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
25	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
26	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
31	Nut - Plain 307-220-013 More Info >	US$1.29
33	Grease Nipple 208-442-650 More Info >	US$4.76
36	Cap Screw 303-210-653 More Info >	Price on Request
37	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
43	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
44	Front Castor Weldment - LH 412-320-051 More Info >	US$726.27
45	Front Castor Weldment - RH 412-320-052 More Info >	US$726.27
46	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	US$277.27
47	Bolt 301-212-653 More Info >	US$3.72
48	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	US$45.02
49	Bush - Pivot 402-320-060 More Info >	US$122.85
50	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	US$20.55
51	Circlip/Snap Ring - External 204-820-522 More Info >	US$4.07
52	Roller - Front Anti-scalp 414-320-030 More Info >	US$599.76
53	Axle - Anti-scalp Roller 419-320-040 More Info >	US$274.11
55	Washer - Spring 308-080-043 More Info >	US$0.29
56	Bolt 301-208-163 More Info >	US$1.05
58	Bearing - Tapered Roller 401-021-870 More Info >	Price on Request
59	Wheel Rim 416-449-013 More Info >	Price on Request
60	Tube 416-449-012 More Info >	Price on Request
61	Tyre 416-449-011 More Info >	Price on Request
62	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
63	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
64	Grease Cap - Wheel 416-449-015 More Info >	US$11.07
68	Gasket - Paper - FL207 Roller Bearing Housing 401-020-802 More Info >	US$4.92
69	Roller Bearing Kit - UCFL207 1-3/8" with Gasket and Grub Screw - 401-020-801 More Info >	US$56.25
70	Roller Bearing Assembly - 1-3/8" x UCFL207 - 401-020-701 More Info >	US$51.75
72	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
75	Filler Rubber 410-330-375 More Info >	US$33.97
80	Adjustable Catch - Covers 423-080-220 More Info >	US$25.50
81	Blind Rivet 213-443-250 More Info >	US$0.60
82	Washer - Flat 308-080-016 More Info >	US$0.25
83	Blind Rivet 213-443-210 More Info >	Price on Request
84	Roller Scraper 404-320-127 More Info >	US$82.00
85	Wheel Assembly 416-449-010 More Info >	US$125.48
88	Headstock Spacer 417-001-035 More Info >	Price on Request
