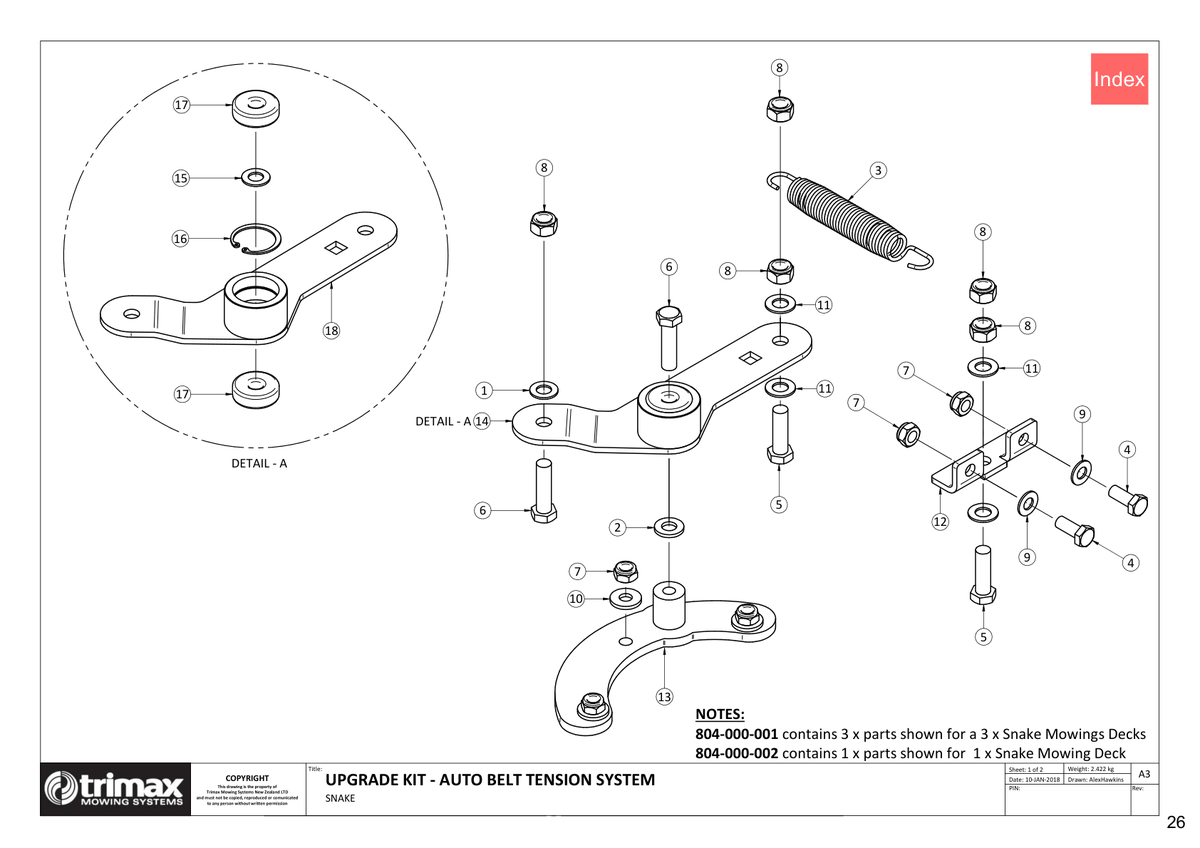

721 - Snake S1 - Auto Belt Tension Kit

Snake S1 320

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	US$2.53
2	Washer - Hardened 108-071-513 More Info >	US$2.98
3	Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - 207-000-009 More Info >	US$6.21
4	Bolt 301-210-303 More Info >	US$0.50
5	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
6	Bolt 301-212-453 More Info >	US$3.72
7	Nut - Nyloc 307-210-053 More Info >	US$0.60
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
9	Washer - Flat 308-100-013 More Info >	US$0.17
10	Washer - Heavy Flat 308-100-063 More Info >	US$0.25
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
12	Mounting Plate - Tension Spring 403-000-100 More Info >	US$15.10
13	Base Weldment - Idler Arm 403-000-101 More Info >	US$41.10
14	Idler Arm Assembly - Arm + Bearing 403-000-103 More Info >	US$95.60
16	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
17	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	US$18.52
18	Arm Weldment - Idler Arm 403-000-102 More Info >	US$69.90
