NOTES:

Part # Number on image Usage Notes
418-000-285 10
  • Handle for parking jack available P/N 418-000-631
  • Handle for parking jack available P/N 418-000-631
418-000-467 51
  • The side lock arms part numbers 418-000-467 and 418-000-469 must be purchased as a pair if being replaced
  • The side lock arms part numbers 418-000-467 and 418-000-469 must be purchased as a pair if being replaced
418-000-469 53
  • Item 54 is available only as an option on standard models
  • Item 54 is available only as an option on standard models

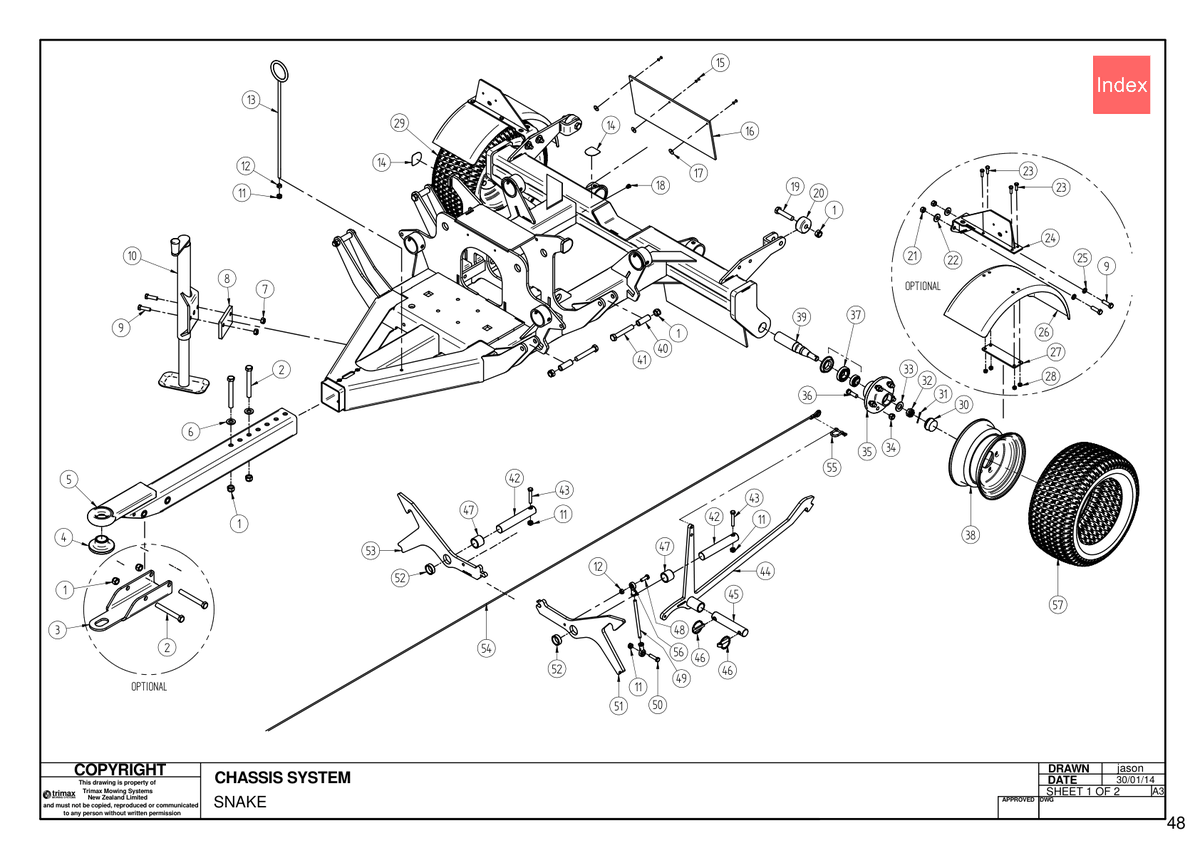

721 - Snake S1 - Chassis System

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
1 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
2 Bolt - Hex Head - M16 x 130 - Trimax Specification [301-616-133] Bolt - Hex Head - M16 x 130 - Trimax Specification 301-616-133
US$14.14
3 Folding [418-000-529] Folding 418-000-529
US$46.07
4 Wear Bush - Tow Eye [402-840-130] Wear Bush - Tow Eye 402-840-130
US$53.13
5 Drawbar Weldment [418-000-497] Drawbar Weldment 418-000-497
US$645.45
6 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
7 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
9 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
10 Parking Jack [418-000-285] Parking Jack i See notes section for usage notes on this part 418-000-285
US$326.50
11 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
12 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
US$0.60
13 Guide [418-000-466] Guide 418-000-466
US$36.54
14 Decal - Wear Pad - D-Shape Snake [424-101-815] Decal - Wear Pad - D-Shape Snake 424-101-815
US$6.26
15 Blind Rivet [213-000-001] Blind Rivet 213-000-001
US$0.47
16 Debris Flap [410-000-259] Debris Flap 410-000-259
US$38.86
17 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
18 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
19 Bolt - Hex Head - M16 x 75 - Trimax Specification [301-216-753] Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753
US$2.69
20 Roller - Guide [419-000-036] Roller - Guide 419-000-036
US$29.28
21 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
22 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
23 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
US$0.89
24 Mount [410-000-247] Mount 410-000-247
US$101.37
25 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
26 Mudguard [410-000-245] Mudguard 410-000-245
US$121.98
27 Clamp Plate [410-000-246] Clamp Plate 410-000-246
US$13.67
28 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
29 Wheel Assembly Turf - (incl. Tyre & Rim) - Snake [416-000-074] Wheel Assembly Turf - (incl. Tyre & Rim) - Snake 416-000-074
US$328.90
30 Grease Cap [416-860-490] Grease Cap 416-860-490
US$8.39
31 Split (Cotter) Pin [201-447-000] Split (Cotter) Pin 201-447-000
US$0.24
32 Nut Kit [416-842-190] Nut Kit 416-842-190
US$11.23
33 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
34 Wheel Nut [416-842-890] Wheel Nut 416-842-890
US$3.00
35 Hub 5 Stud [416-000-002] Hub 5 Stud 416-000-002
US$114.71
36 Wheel Stud [416-000-003] Wheel Stud 416-000-003
US$8.79
37 Wheel Bearing/Seal Kit [416-860-470] Wheel Bearing/Seal Kit 416-860-470
US$91.42
38 Wheel Rim 5 Stud [416-000-080] Wheel Rim 5 Stud 416-000-080
US$192.77
39 Stub Axle [416-860-450] Stub Axle 416-860-450
US$54.67
40 Bush - Transport Guide [419-000-038] Bush - Transport Guide 419-000-038
US$5.58
41 Bolt - Hex Head - M16 x 100 - Trimax Specification [301-616-103] Bolt - Hex Head - M16 x 100 - Trimax Specification 301-616-103
US$10.87
42 Pin - Hydraulic Cylinder [419-000-034] Pin - Hydraulic Cylinder 419-000-034
US$20.52
43 Bolt - Hex Head - M10 x 60 - Trimax Specification [301-210-603] Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603
US$0.80
44 Lock Arm Weldment - Rear [418-000-509] Lock Arm Weldment - Rear 418-000-509
US$423.43
45 Pin - Hydraulic Cylinder [419-000-035] Pin - Hydraulic Cylinder 419-000-035
US$21.92
46 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
47 Spacer Tube [418-000-510] Spacer Tube 418-000-510
US$25.42
48 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
49 Tie Rod [418-000-536] Tie Rod 418-000-536
US$5.27
50 Bolt - Hex Head - M10 x 40 - Trimax Specification [301-210-403] Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403
US$0.72
51 Hook [418-000-467] Hook i See notes section for usage notes on this part 418-000-467
US$167.71
52 Bush [418-000-470] Bush 418-000-470
US$18.94
53 Hook [418-000-469] Hook i See notes section for usage notes on this part 418-000-469
US$167.71
54 Release Rope Assembly 4.5m [404-000-125] Release Rope Assembly 4.5m 404-000-125
US$45.29
55 Bow Shackle - Stainless - Ø6mm [214-446-250] Bow Shackle - Stainless - Ø6mm 214-446-250
US$2.98
56 Bearing [401-840-800] Bearing 401-840-800
US$43.70
57 Tyre - Turf [416-842-880] Tyre - Turf 416-842-880
US$199.70
