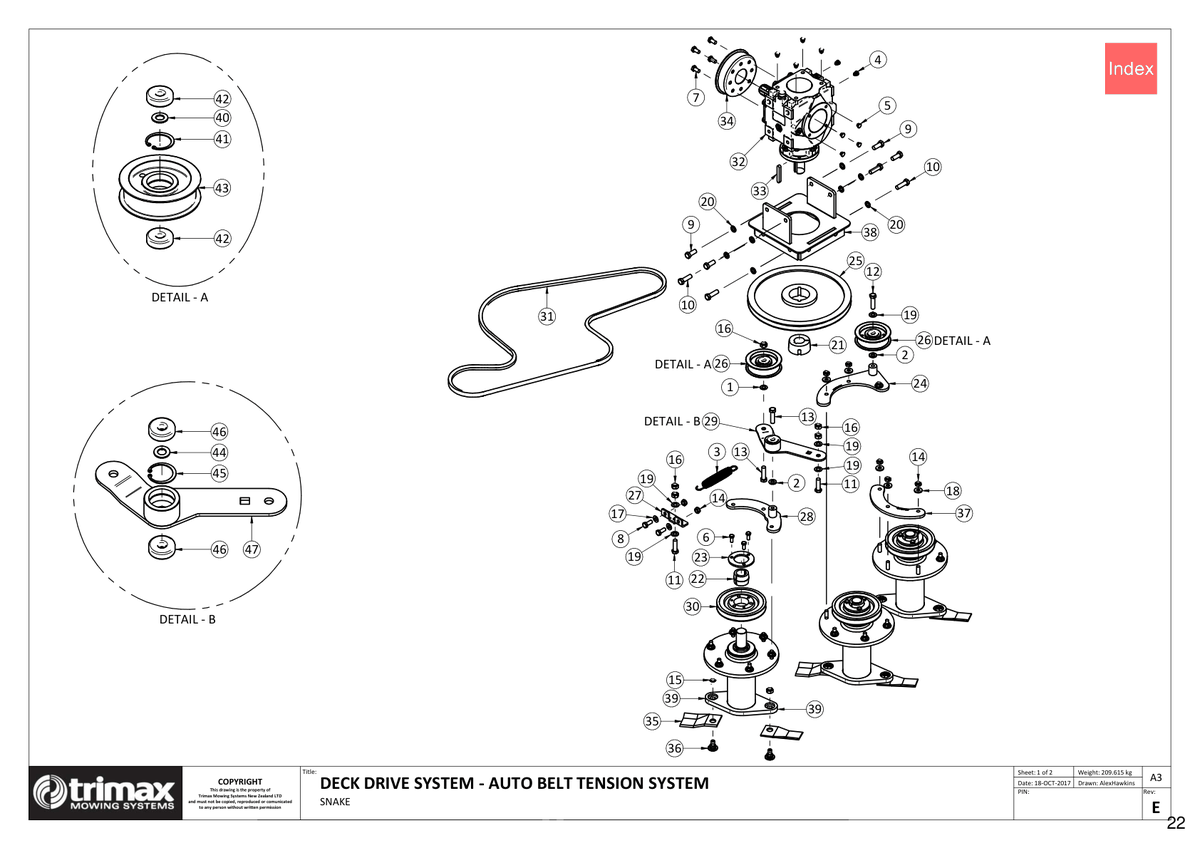

721 - Snake S1 - Deck Ato Belt Drive System

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
2 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
3 Spring - Deck Belt Tensioner - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009
US$6.21
4 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
5 Blanking Plug [209-900-014] Blanking Plug 209-900-014
US$0.26
6 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
7 Bolt - Hex Head - M10 x 20 - Trimax Specification [301-210-203] Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203
US$0.44
8 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
9 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
10 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
12 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
14 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
15 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
17 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
18 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
19 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
20 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
21 Bush [402-000-083] Bush 402-000-083
US$23.97
22 Bush [402-060-320] Bush 402-060-320
US$27.23
23 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
24 Idler Tower [403-000-076] Idler Tower 403-000-076
US$46.21
25 Pulley [403-000-081] Pulley 403-000-081
US$203.41
26 Pulley Assembly [403-000-091] Pulley Assembly 403-000-091
US$84.38
27 Mounting Plate - Tension Spring [403-000-100] Mounting Plate - Tension Spring 403-000-100
US$15.10
28 Base Weldment - Idler Arm [403-000-101] Base Weldment - Idler Arm 403-000-101
US$41.10
29 Idler Arm Assembly - Arm + Bearing [403-000-103] Idler Arm Assembly - Arm + Bearing 403-000-103
US$95.60
30 Pulley [403-360-300] Pulley 403-360-300
US$63.88
31 Vee Belt - Trimax Specification [404-040-962] Vee Belt - Trimax Specification 404-040-962
US$68.95
32 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
33 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
34 Mounting Plate [410-000-258] Mounting Plate 410-000-258
US$46.86
35 Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade [411-160-842] Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842
US$6.91
36 Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting [411-322-050] Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050
US$4.28
37 Plate [417-001-002] Plate 417-001-002
US$30.89
38 Gearbox Mount Weldment - Deck Assembly [417-001-016] Gearbox Mount Weldment - Deck Assembly 417-001-016
US$205.79
39 Spindle Assembly - Snake S2 [504-000-098] Spindle Assembly - Snake S2 504-000-098
US$667.71
41 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
42 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
43 Pulley - Back Tensioned [403-000-089] Pulley - Back Tensioned 403-000-089
US$98.22
47 Arm Weldment - Idler Arm [403-000-102] Arm Weldment - Idler Arm 403-000-102
US$69.90
