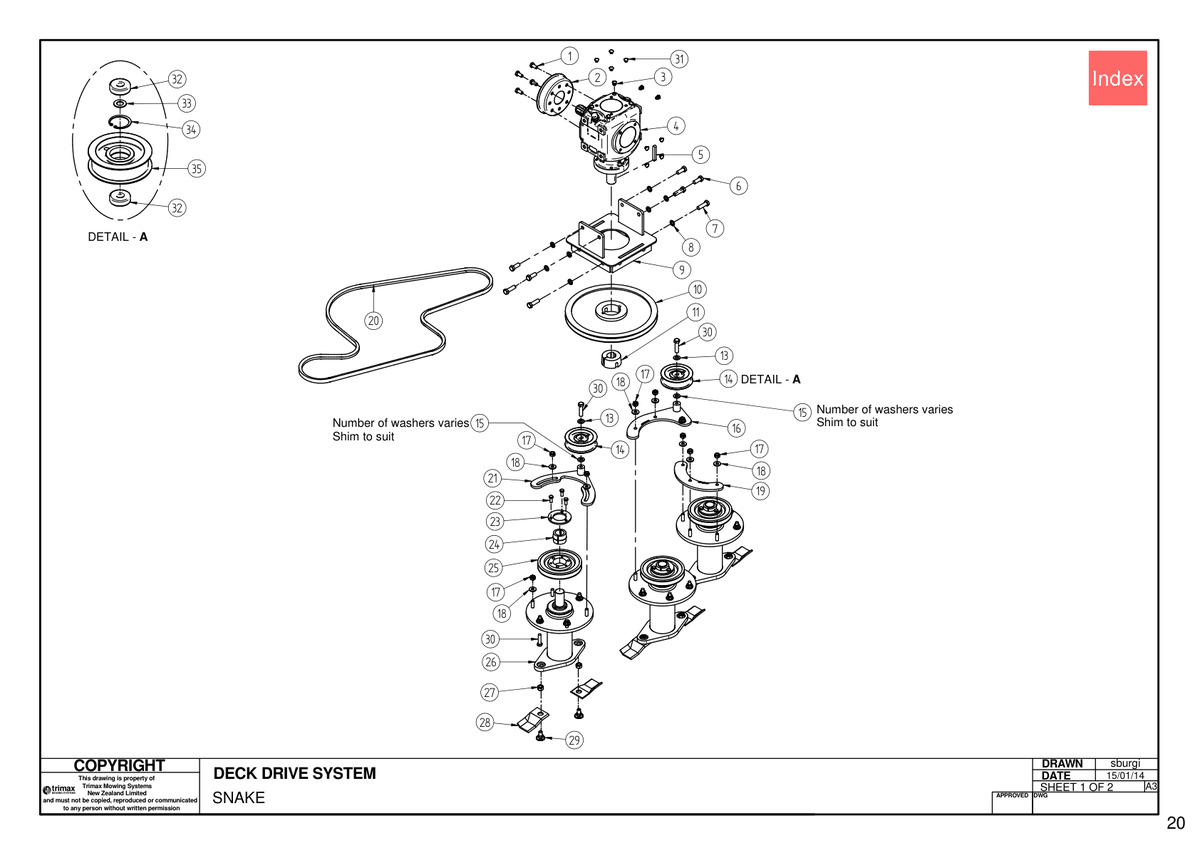

721 - Snake S1 - Deck Drive System

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M10 x 20 - Trimax Specification [301-210-203] Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203
US$0.44
2 Mounting Plate [410-000-258] Mounting Plate 410-000-258
US$46.86
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
5 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
6 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
7 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
8 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
9 Gearbox Mount Weldment - Deck Assembly [417-001-016] Gearbox Mount Weldment - Deck Assembly 417-001-016
US$205.79
10 Pulley [403-000-081] Pulley 403-000-081
US$203.41
11 Bush [402-000-083] Bush 402-000-083
US$23.97
13 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
14 Pulley Assembly [403-000-091] Pulley Assembly 403-000-091
US$84.38
15 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
16 Idler Tower [403-000-076] Idler Tower 403-000-076
US$46.21
17 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
18 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
19 Plate [417-001-002] Plate 417-001-002
US$30.89
20 Vee Belt - Trimax Specification [404-040-962] Vee Belt - Trimax Specification 404-040-962
US$68.95
21 Idler Tower Assembly [403-000-075] Idler Tower Assembly 403-000-075
US$58.37
22 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
23 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
24 Bush [402-060-320] Bush 402-060-320
US$27.23
25 Pulley [403-360-300] Pulley 403-360-300
US$63.88
26 Spindle Assembly - Snake S2 [504-000-098] Spindle Assembly - Snake S2 504-000-098
US$667.71
27 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
28 Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade [411-160-842] Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842
US$6.91
29 Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting [411-322-050] Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050
US$4.28
30 Set Screw [313-210-403] Set Screw 313-210-403
US$0.47
30 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
31 Blanking Plug [209-900-014] Blanking Plug 209-900-014
US$0.26
32 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
33 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
34 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
35 Pulley - Back Tensioned [403-000-089] Pulley - Back Tensioned 403-000-089
US$98.22
