NOTES:

Part # Number on image Usage Notes
412-000-256 20
  • For Height indicator rod - Imperial ,Use part number 412-000-258
  • For Height indicator rod - Imperial ,Use part number 412-000-258
412-000-302 21
  • Use part number 808-000-039 - Wear skid Complete Kit for one mower Use part number 307-210-013 for plain nut and 308-100-043 Spring washer for Wear Skid - Assembly
  • Use part number 808-000-039 - Wear skid Complete Kit for one mower Use part number 307-210-013 for plain nut and 308-100-043 Spring washer for Wear Skid - Assembly

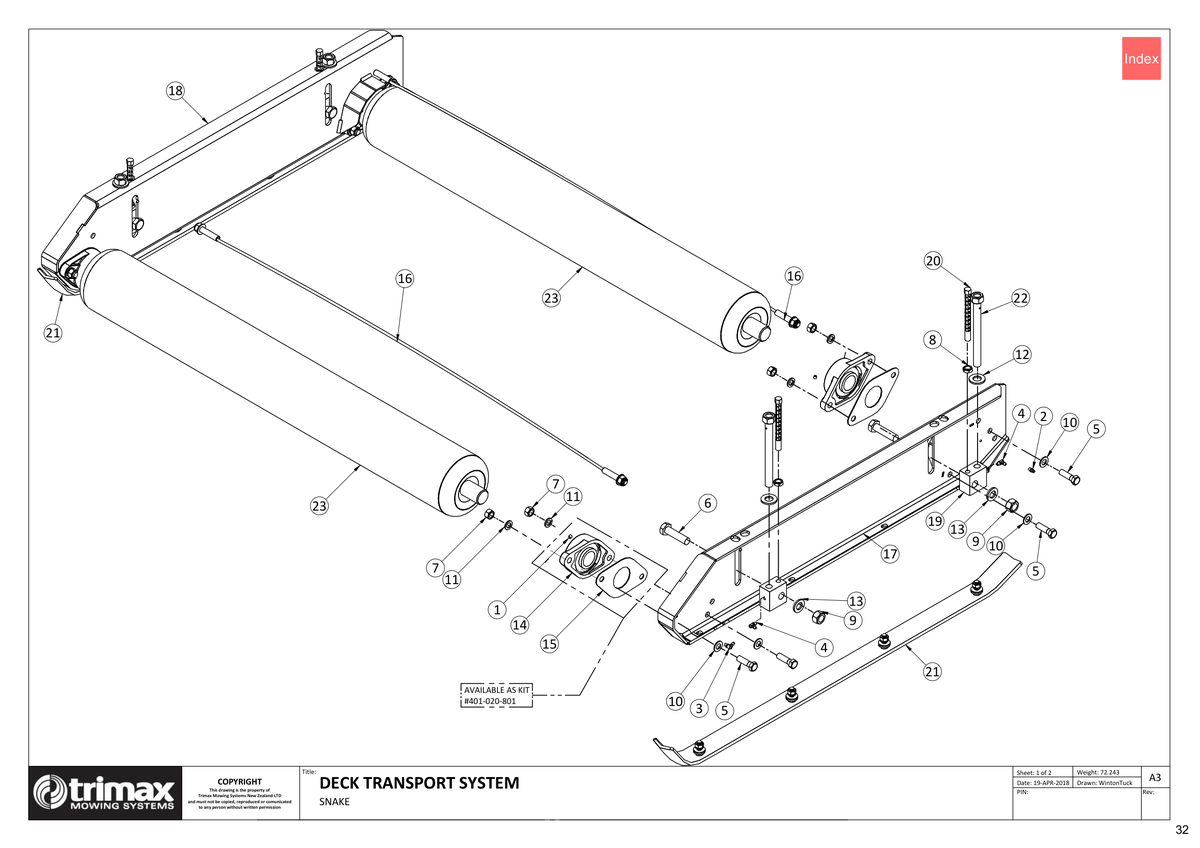

721 - Snake S1 - Deck Transport System

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
1 Grub Screw [144-104-025] Grub Screw 144-104-025
US$2.53
2 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
3 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
4 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
5 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
6 Bolt - Hex Head - M16 x 60 - Trimax Specification [301-216-603] Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603
US$1.74
7 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
8 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
9 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
10 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
11 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
12 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
13 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
14 Roller Bearing Assembly - Trimax Specification [401-020-701] Roller Bearing Assembly - Trimax Specification 401-020-701
US$63.00
15 Gasket - Paper - Roller Bearing Housing [401-020-802] Gasket - Paper - Roller Bearing Housing 401-020-802
US$4.92
16 Scraper [404-000-057] Scraper 404-000-057
US$82.00
17 Side Channel Weldment - LH Snake S1 [412-000-247] Side Channel Weldment - LH Snake S1 412-000-247
US$439.28
18 Side Channel Weldment - RH [412-000-248] Side Channel Weldment - RH 412-000-248
US$439.28
19 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
US$58.77
20 Height Indicator - Metric [412-000-256] Height Indicator - Metric i See notes section for usage notes on this part 412-000-256
US$19.91
21 Skid Assembly - Anti-Bounce Wear Skid w/ M10 Nuts & Washers - [412-000-302] Skid Assembly - Anti-Bounce Wear Skid w/ M10 Nuts & Washers - i See notes section for usage notes on this part 412-000-302
US$154.06
22 Set Screw - Hex Head - M16 x 180 - Trimax Specification [313-616-183] Set Screw - Hex Head - M16 x 180 - Trimax Specification 313-616-183
US$16.26
23 Roller Weldment - Inverted Dome 120 [414-000-063] Roller Weldment - Inverted Dome 120 414-000-063
US$381.68
