NOTES:

Part # Number on image Usage Notes
418-000-001 30
  • Use as Required
  • Use as Required

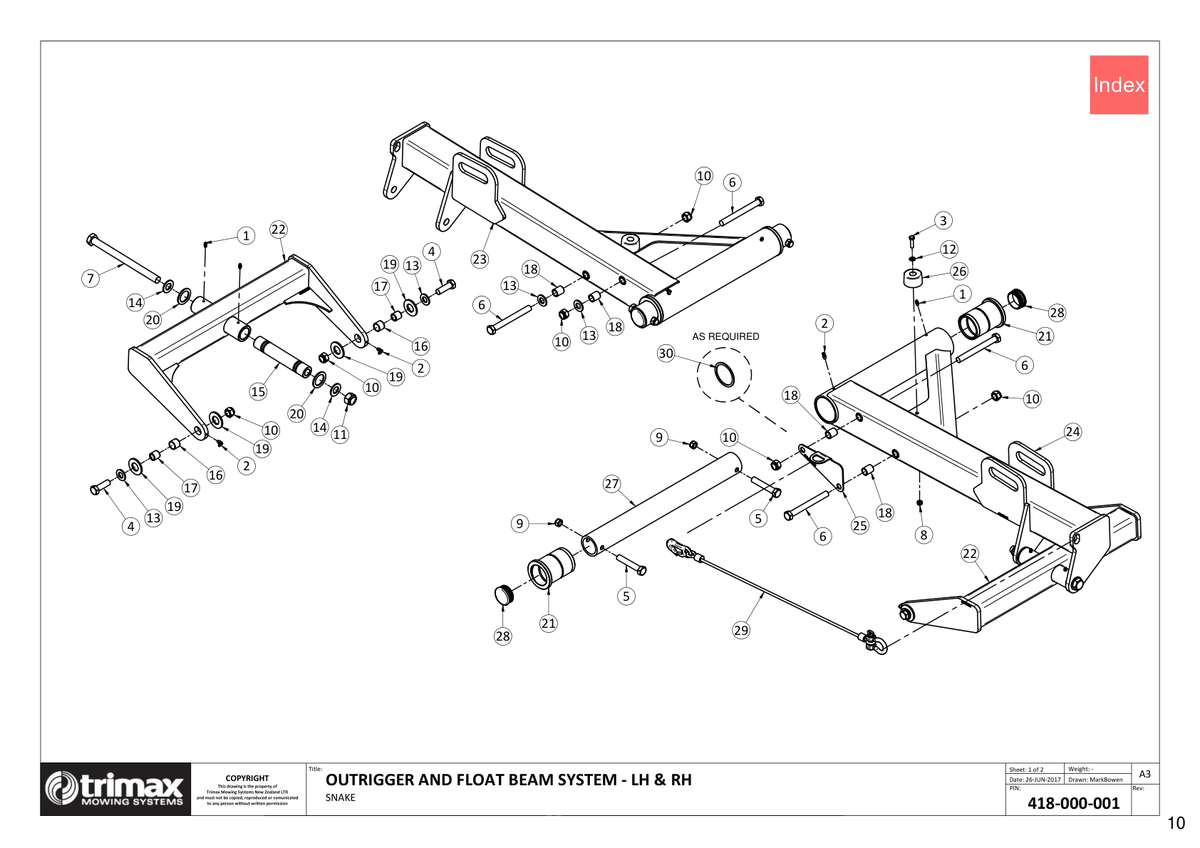

721 - Snake S1 - Outrigger and Float Beam System - LH & RH

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
2 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
3 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
4 Bolt - Hex Head - M16 x 50 - Trimax Specification [301-216-503] Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503
US$4.33
5 Bolt - Hex Head - M16 x 90 - Trimax Specification [301-216-903] Bolt - Hex Head - M16 x 90 - Trimax Specification 301-216-903
US$3.93
6 Bolt - Hex Head - M16 x 150 - Trimax Specification [301-616-153] Bolt - Hex Head - M16 x 150 - Trimax Specification 301-616-153
US$13.69
7 Bolt - Hex Head - M20 x 260 - Trimax Specification [301-620-263] Bolt - Hex Head - M20 x 260 - Trimax Specification 301-620-263
US$13.65
8 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
9 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
10 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
11 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
13 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
14 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
15 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
16 Float Beam Bush [402-000-020] Float Beam Bush 402-000-020
US$11.74
17 Float Beam Bush [402-000-059] Float Beam Bush 402-000-059
US$18.20
18 Bush - Lock Inner [402-000-076] Bush - Lock Inner 402-000-076
US$5.67
19 Thrust Washer [402-000-080] Thrust Washer 402-000-080
US$20.30
20 Thrust Washer [402-000-081] Thrust Washer 402-000-081
US$19.44
21 Bush [402-840-260] Bush 402-840-260
US$159.90
22 Float Beam Weldment - Side [418-000-500] Float Beam Weldment - Side 418-000-500
US$492.69
23 Outrigger Arm Weldment - RH [418-000-514] Outrigger Arm Weldment - RH 418-000-514
US$1,859.38
24 Outrigger Arm Weldment - LH [418-000-515] Outrigger Arm Weldment - LH 418-000-515
US$1,859.38
25 Attachment Bracket [418-000-535] Attachment Bracket 418-000-535
US$22.06
26 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
27 Pin - Outrigger Hinge - Side/Rear [419-000-037] Pin - Outrigger Hinge - Side/Rear 419-000-037
US$87.13
28 End Cap - Hinge Tube End Insert [450-000-119] End Cap - Hinge Tube End Insert 450-000-119
US$4.75
30 Shim [418-000-001] Shim i See notes section for usage notes on this part 418-000-001
US$34.55
