NOTES:

Part # Number on image Usage Notes
418-000-001 26
  • Use as required
  • Use as required

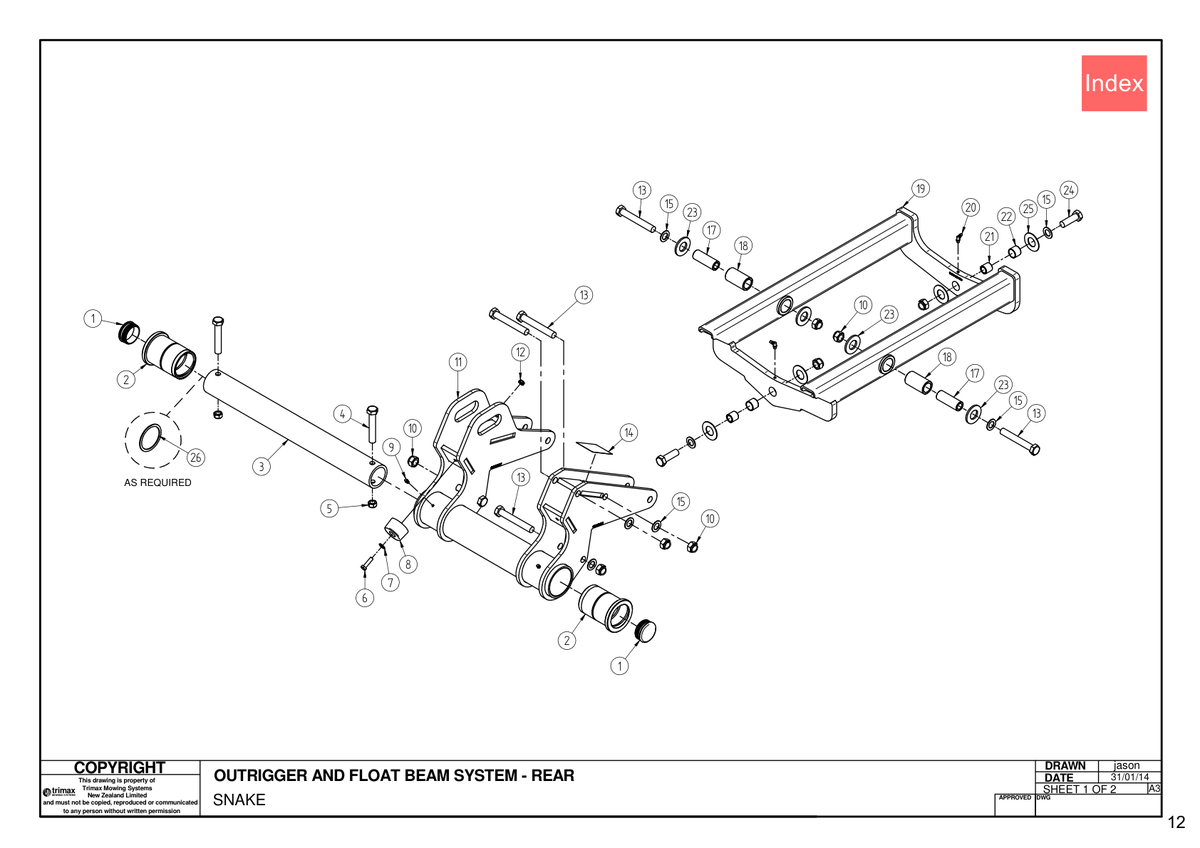

721 - Snake S1 - Outrigger and Float Beam System - Rear

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
1 End Cap - Hinge Tube End Insert [450-000-119] End Cap - Hinge Tube End Insert 450-000-119
US$4.75
2 Bush [402-840-260] Bush 402-840-260
US$159.90
3 Pin - Outrigger Hinge - Side/Rear [419-000-037] Pin - Outrigger Hinge - Side/Rear 419-000-037
US$87.13
4 Bolt - Hex Head - M16 x 90 - Trimax Specification [301-216-903] Bolt - Hex Head - M16 x 90 - Trimax Specification 301-216-903
US$3.93
5 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
6 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
7 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
8 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
9 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
10 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
11 Outrigger Arm Weldment [418-000-516] Outrigger Arm Weldment 418-000-516
US$484.79
12 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
13 Bolt - Hex Head - M16 x 110 - Trimax Specification [301-616-113] Bolt - Hex Head - M16 x 110 - Trimax Specification 301-616-113
US$7.89
14 Decal - Wear Pad - Rectangle [424-101-816] Decal - Wear Pad - Rectangle 424-101-816
US$5.66
15 Washer - Flat [308-160-013] Washer - Flat 308-160-013
US$0.61
17 Sleeve [402-840-580] Sleeve 402-840-580
US$25.83
18 Bush [402-000-079] Bush 402-000-079
US$38.27
20 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
21 Float Beam Bush [402-000-059] Float Beam Bush 402-000-059
US$18.20
22 Float Beam Bush [402-000-020] Float Beam Bush 402-000-020
US$11.74
23 Thrust Washer [402-000-080] Thrust Washer 402-000-080
US$20.30
24 Bolt - Hex Head - M16 x 50 - Trimax Specification [301-216-503] Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503
US$4.33
25 Washer - Nylon Thrust Washer - Trimax Specification [402-000-088] Washer - Nylon Thrust Washer - Trimax Specification 402-000-088
US$8.00
26 Shim [418-000-001] Shim i See notes section for usage notes on this part 418-000-001
US$34.55
