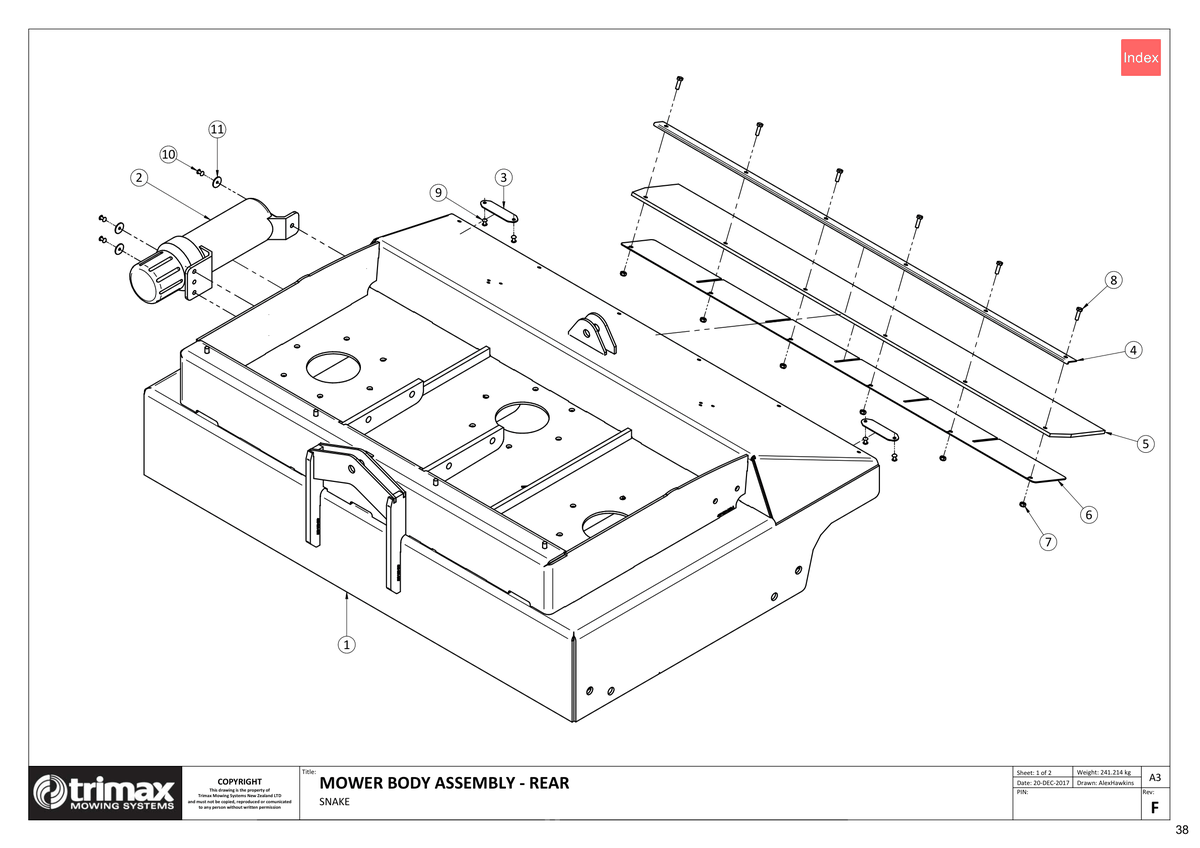

721 - Snake S1 - Rear Body System

Snake S1 320

Grouped product items
No. Image Product Name Price Quantity
2 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
3 Cover Plate [417-001-323] Cover Plate 417-001-323
US$2.87
4 Clamp Strip - Safety Flap 120 [410-000-253] Clamp Strip - Safety Flap 120 410-000-253
US$70.87
5 Safety Flap - Rear Deck 120 [410-000-244] Safety Flap - Rear Deck 120 410-000-244
US$66.56
6 Anti-Droop Strip [410-000-242] Anti-Droop Strip 410-000-242
US$28.90
7 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
8 Bolt - Hex Head - M6 x 20 - Trimax Specification [301-206-203] Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203
US$0.12
9 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
10 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
11 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
