NOTES:

Part # Number on image Usage Notes
301-616-123 13
  • Hub and Stub Complete assembly available P/N 416-000-001
  • Hub and Stub Complete assembly available P/N 416-000-001
  • Hub and Stub Complete assembly available P/N 416-000-001
404-000-125 30
  • Item 24 is availble only on standard models without Remote Unlock
  • Item 24 is availble only on standard models without Remote Unlock
  • Item 24 is availble only on standard models without Remote Unlock
416-000-002 35
  • Hub with 5 Stud assembly available P/N 416-860-460
  • Hub with 5 Stud assembly available P/N 416-860-460
  • Hub with 5 Stud assembly available P/N 416-860-460
416-000-080 37
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
416-842-880 39
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
  • Turf rim and tyre assembly available P/N 416-000-074 , Road wheel assembly use P/N 416-000-100
418-000-217 42
  • Handle for parking jack available Use part number 418-000-631
  • Handle for parking jack available Use part number 418-000-631
  • Handle for parking jack available Use part number 418-000-631
418-000-682 52
  • Use of Spacer plate (418-000-769) implemented from Serial number onwards:721-320-201-0020,721-400-201-0013 for NZ and 722-320-200-0043 ,722-400-200-0017 for UK, Also available as a Kit, part number 450-000-130 - Stub Axle Flush Mount Kit Snake S2 Changes were made to the chassis axle mount plate thickness as a result the spacer plate (418-000-769) are no longer required from serial number onw NZM : 621-320-200-1005507 ,621-320-205-1002041 , 621-400-200-1005915 , 621-400-205-1004281 / GBM : 621-320-200-1002402 , 621-400-200-1
  • Use of Spacer plate (418-000-769) implemented from Serial number onwards:721-320-201-0020,721-400-201-0013 for NZ and 722-320-200-0043 ,722-400-200-0017 for UK, Also available as a Kit, part number 450-000-130 - Stub Axle Flush Mount Kit Snake S2 Changes were made to the chassis axle mount plate thickness as a result the spacer plate (418-000-769) are no longer required from serial number onw NZM : 621-320-200-1005507 ,621-320-205-1002041 , 621-400-200-1005915 , 621-400-205-1004281 / GBM : 621-320-200-1002402 , 621-400-200-1
  • Use of Spacer plate (418-000-769) implemented from Serial number onwards:721-320-201-0020,721-400-201-0013 for NZ and 722-320-200-0043 ,722-400-200-0017 for UK, Also available as a Kit, part number 450-000-130 - Stub Axle Flush Mount Kit Snake S2 Changes were made to the chassis axle mount plate thickness as a result the spacer plate (418-000-769) are no longer required from serial number onw NZM : 621-320-200-1005507 ,621-320-205-1002041 , 621-400-200-1005915 , 621-400-205-1004281 / GBM : 621-320-200-1002402 , 621-400-200-1

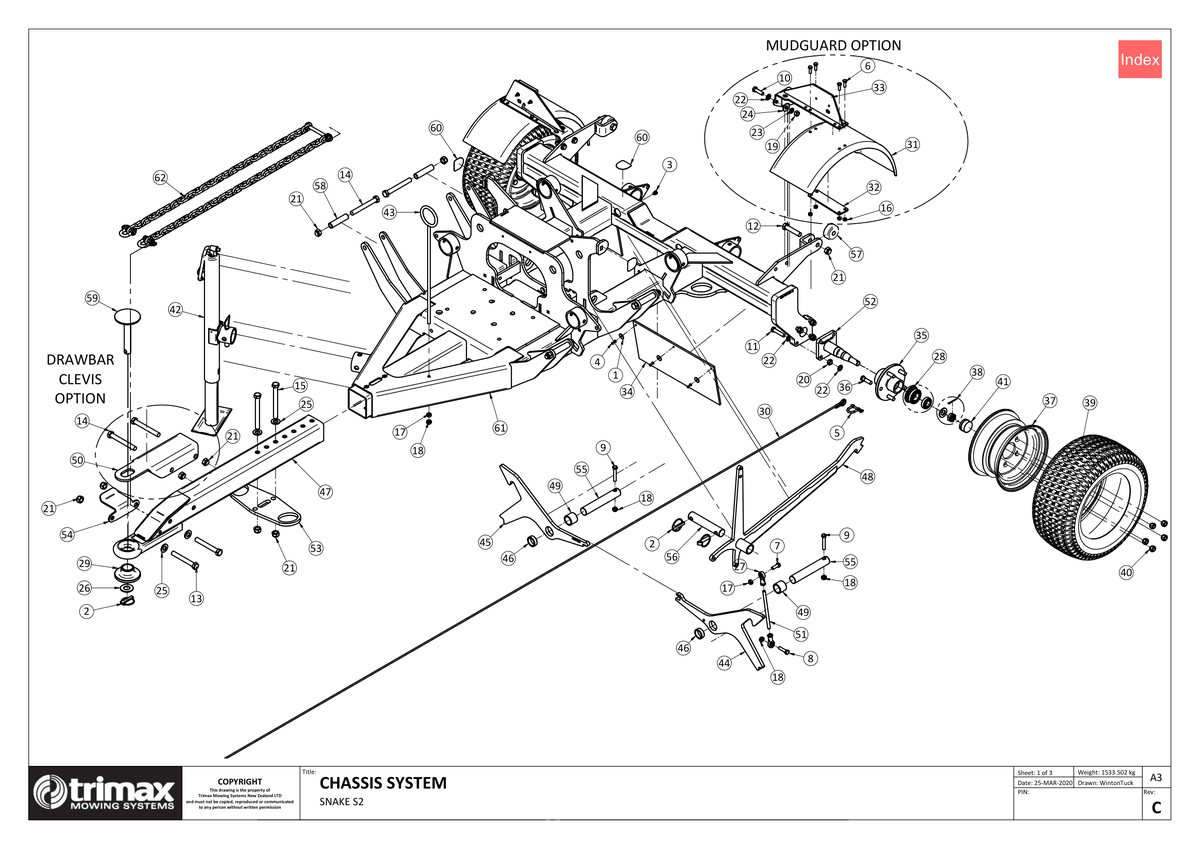

721 - Snake S2 - Chassis System

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Blind Rivet [213-000-001] Blind Rivet 213-000-001
US$0.47
5 Bow Shackle - Stainless - Ø6mm [214-446-250] Bow Shackle - Stainless - Ø6mm 214-446-250
US$2.98
6 Bolt [301-208-253] Bolt 301-208-253
US$0.89
7 Bolt [301-210-303] Bolt 301-210-303
US$0.50
8 Bolt [301-210-403] Bolt 301-210-403
US$0.72
9 Bolt [301-210-603] Bolt 301-210-603
US$0.80
10 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
11 Bolt [301-212-553] Bolt 301-212-553
US$1.07
12 Bolt [301-216-753] Bolt 301-216-753
US$2.69
13 Bolt - Hex Head - M16 x 120mm [301-616-123] Bolt - Hex Head - M16 x 120mm i See notes section for usage notes on this part 301-616-123
Price on Request
14 Bolt [301-616-133] Bolt 301-616-133
US$14.14
15 Bolt [301-616-153] Bolt 301-616-153
US$13.69
16 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
17 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
US$0.60
18 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
19 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
20 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
21 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
22 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
23 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
24 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
25 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
26 Washer - Heavy Flat [308-270-063] Washer - Heavy Flat 308-270-063
US$1.86
27 Bearing [401-840-800] Bearing 401-840-800
US$43.70
28 Wheel Bearing/Seal Kit [416-860-470] Wheel Bearing/Seal Kit 416-860-470
US$91.42
29 Wear Bush - Tow Eye - 32 x 51 [402-840-130] Wear Bush - Tow Eye - 32 x 51 402-840-130
US$53.13
30 Release Rope Assembly 4.5m [404-000-125] Release Rope Assembly 4.5m i See notes section for usage notes on this part 404-000-125
US$45.29
31 Mudguard [410-000-245] Mudguard 410-000-245
US$121.98
32 Clamp Plate [410-000-246] Clamp Plate 410-000-246
US$13.67
33 Mount [410-000-247] Mount 410-000-247
US$101.37
34 Debris Flap [410-000-259] Debris Flap 410-000-259
US$38.86
35 Hub 5 Stud [416-000-002] Hub 5 Stud i See notes section for usage notes on this part 416-000-002
US$114.71
36 Wheel Stud [416-000-003] Wheel Stud 416-000-003
US$8.79
37 Wheel Rim 5 Stud [416-000-080] Wheel Rim 5 Stud i See notes section for usage notes on this part 416-000-080
US$192.77
38 Nut Kit [416-842-190] Nut Kit 416-842-190
US$11.23
39 Tyre - Turf [416-842-880] Tyre - Turf i See notes section for usage notes on this part 416-842-880
US$199.70
40 Wheel Nut [416-842-890] Wheel Nut 416-842-890
US$3.00
41 Grease Cap [416-860-490] Grease Cap 416-860-490
US$8.39
42 Parking Jack Assembly [418-000-217] Parking Jack Assembly i See notes section for usage notes on this part 418-000-217
US$187.43
43 Guide [418-000-466] Guide 418-000-466
US$36.54
44 Hook [418-000-467] Hook 418-000-467
US$167.71
45 Hook [418-000-469] Hook 418-000-469
US$167.71
46 Bush [418-000-470] Bush 418-000-470
US$18.94
47 Drawbar Weldment [418-000-497] Drawbar Weldment 418-000-497
US$645.45
48 Lock Arm Weldment - Rear [418-000-509] Lock Arm Weldment - Rear 418-000-509
US$423.43
49 Spacer Tube [418-000-510] Spacer Tube 418-000-510
US$25.42
50 Folding [418-000-529] Folding 418-000-529
US$46.07
51 Tie Rod [418-000-536] Tie Rod 418-000-536
US$5.27
52 Bolt On Stub Axle Weldment [418-000-682] Bolt On Stub Axle Weldment i See notes section for usage notes on this part 418-000-682
US$68.33
53 Tiedown [418-000-780] Tiedown 418-000-780
US$57.98
55 Pin - Hydraulic Cylinder [419-000-034] Pin - Hydraulic Cylinder 419-000-034
US$20.52
56 Pin - Hydraulic Cylinder [419-000-035] Pin - Hydraulic Cylinder 419-000-035
US$21.92
57 Roller - Guide [419-000-036] Roller - Guide 419-000-036
US$29.28
58 Bush - Transport Guide [419-000-041] Bush - Transport Guide 419-000-041
US$13.67
59 Pin Weldment - Hitch - Flat Head Ø1" [419-000-050] Pin Weldment - Hitch - Flat Head Ø1" 419-000-050
US$43.34
60 Decal - Wear Pad - D-Shape Snake [424-101-815] Decal - Wear Pad - D-Shape Snake 424-101-815
US$6.26
