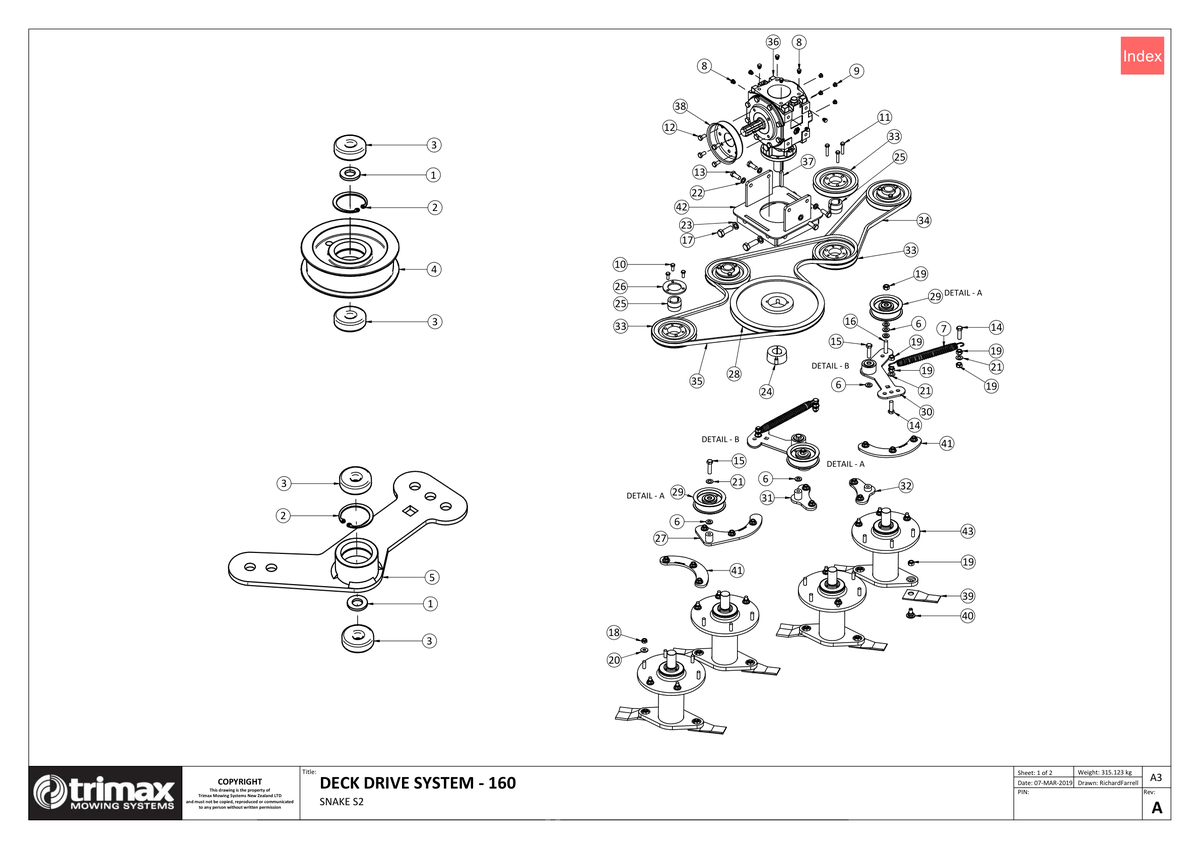

721 - Snake S2 - Deck Drive System - 160

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
3 Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - [401-021-900] Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900
US$18.52
4 Pulley - Back Tensioned [403-000-089] Pulley - Back Tensioned 403-000-089
US$98.22
5 Arm Weldment - Idler Arm [403-000-102] Arm Weldment - Idler Arm 403-000-102
US$69.90
7 Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - 207-000-009
US$6.21
8 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
9 Blanking Plug [209-900-014] Blanking Plug 209-900-014
US$0.26
10 Bolt [301-208-203] Bolt 301-208-203
US$1.05
11 Bolt [301-208-403] Bolt 301-208-403
US$1.64
12 Bolt [301-210-203] Bolt 301-210-203
US$0.44
13 Bolt [301-212-303] Bolt 301-212-303
US$3.13
14 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
15 Bolt [301-212-453] Bolt 301-212-453
US$3.72
16 Bolt [301-212-553] Bolt 301-212-553
US$1.07
17 Bolt [301-216-453] Bolt 301-216-453
US$6.85
18 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
19 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
20 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
21 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
22 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
23 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
24 Bush [402-000-083] Bush 402-000-083
US$23.97
25 Bush [402-060-320] Bush 402-060-320
US$27.23
26 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
27 Idler Tower [403-000-076] Idler Tower 403-000-076
US$46.21
28 Pulley [403-000-081] Pulley 403-000-081
US$203.41
29 Pulley Assembly [403-000-091] Pulley Assembly 403-000-091
US$84.38
30 Idler Arm Assembly - Arm + Bearing [403-000-103] Idler Arm Assembly - Arm + Bearing 403-000-103
US$95.60
31 Idler Base Weldment - Short [403-000-110] Idler Base Weldment - Short 403-000-110
US$74.97
32 Idler Base Weldment - Very Short [403-000-111] Idler Base Weldment - Very Short 403-000-111
US$85.90
33 Pulley [403-360-300] Pulley 403-360-300
US$63.88
34 Vee Belt [404-040-495] Vee Belt 404-040-495
US$37.19
35 Vee Belt [404-040-962] Vee Belt 404-040-962
US$68.95
36 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
37 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
38 Mounting Plate [410-000-258] Mounting Plate 410-000-258
US$46.86
39 Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade [411-160-842] Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842
US$6.91
40 Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting [411-322-050] Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050
US$4.28
41 Plate [417-001-002] Plate 417-001-002
US$30.89
42 Gearbox Mount Weldment [417-001-364] Gearbox Mount Weldment 417-001-364
US$210.93
43 Spindle Assembly - Snake S2 [504-000-098] Spindle Assembly - Snake S2 504-000-098
US$667.71
