Parts Shop

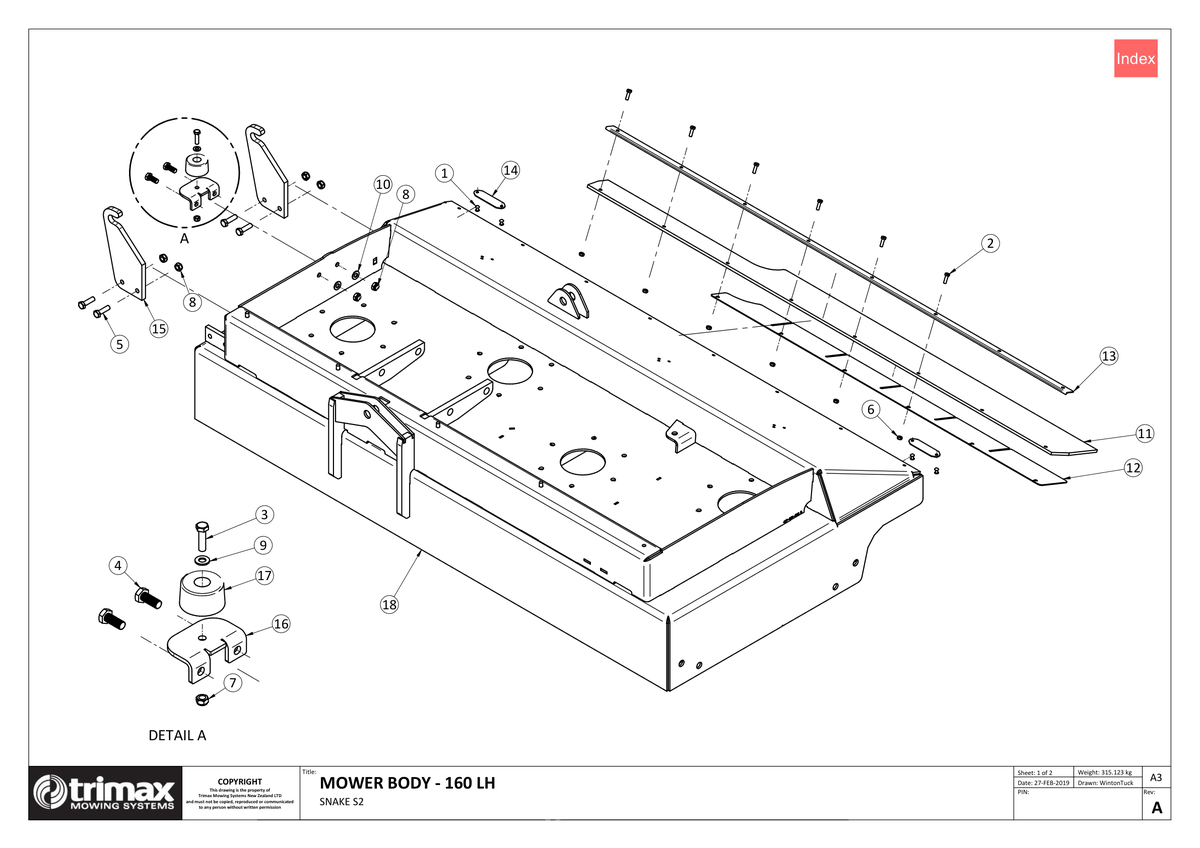

721 - Snake S2 - Mower Body - 160 LH

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
2 Bolt [301-206-203] Bolt 301-206-203
US$0.12
3 Bolt [301-208-303] Bolt 301-208-303
US$0.29
4 Bolt [301-210-253] Bolt 301-210-253
US$0.47
5 Bolt [301-210-353] Bolt 301-210-353
US$0.68
6 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
7 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
8 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
9 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
10 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
11 Safety Flap - Deck LH/RH 160 [410-000-348] Safety Flap - Deck LH/RH 160 410-000-348
US$81.22
12 Anti-Droop Strip - Safety Flap 160 [410-000-349] Anti-Droop Strip - Safety Flap 160 410-000-349
US$23.23
13 Clamp Strip - Safety Flap 160 [410-000-350] Clamp Strip - Safety Flap 160 410-000-350
US$70.87
14 Cover Plate [417-001-323] Cover Plate 417-001-323
US$2.87
15 Hook [417-001-353] Hook 417-001-353
US$39.81
16 Folding [417-001-363] Folding 417-001-363
US$14.44
17 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
18 Body Weldment - Snake S2 160 LH [502-000-136] Body Weldment - Snake S2 160 LH 502-000-136
US$2,960.84
