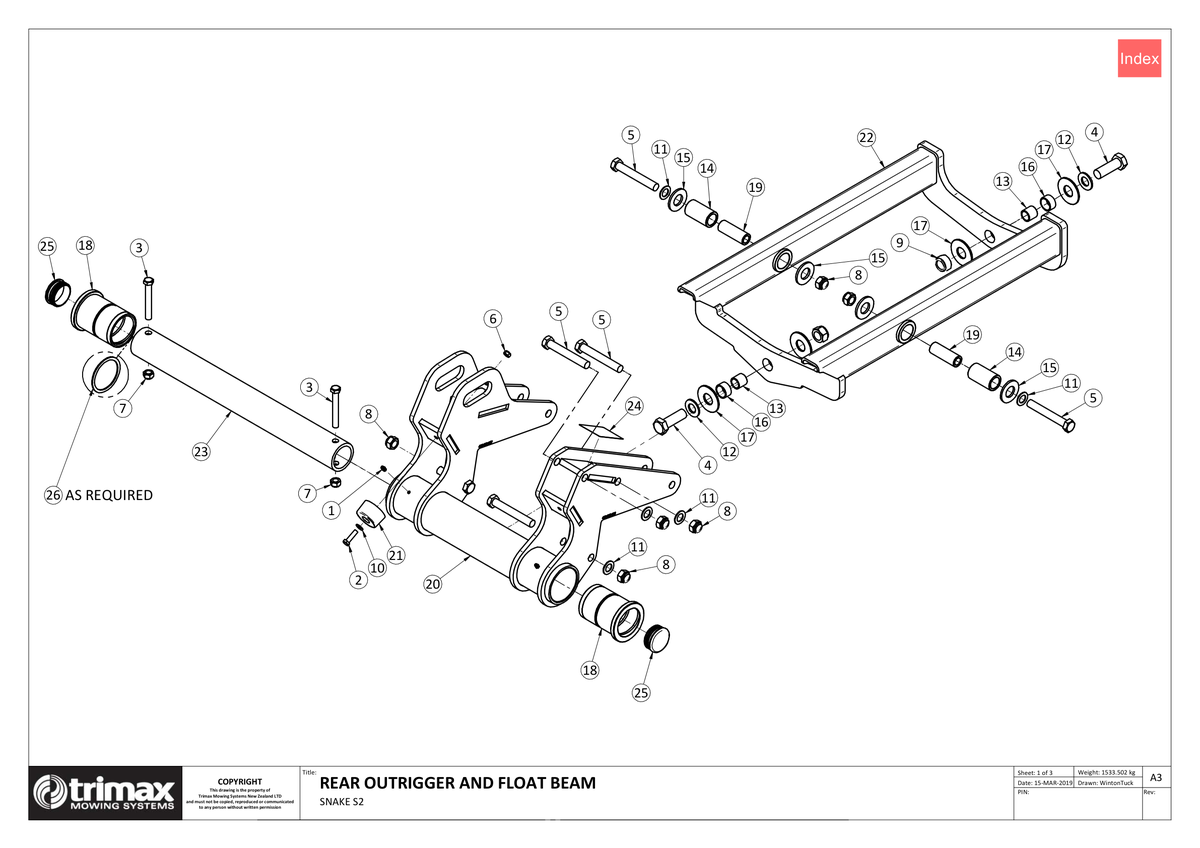

721 - Snake S2 - Rear Outrigger and Float Beam

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
2 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
3 Bolt - Hex Head - M12 x 90 - Trimax Specification [301-212-903] Bolt - Hex Head - M12 x 90 - Trimax Specification 301-212-903
US$8.19
4 Bolt [301-220-603] Bolt 301-220-603
US$4.56
5 Bolt - Hex Head - M16 x 110 - Trimax Specification [301-616-113] Bolt - Hex Head - M16 x 110 - Trimax Specification 301-616-113
US$7.89
6 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
7 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
8 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
9 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
10 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
11 Washer - Flat [308-160-013] Washer - Flat 308-160-013
US$0.61
12 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
13 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
US$13.03
14 Bush [402-000-079] Bush 402-000-079
US$38.27
15 Thrust Washer [402-000-080] Thrust Washer 402-000-080
US$20.30
16 Bush - Composite Pivot Bush [402-000-093] Bush - Composite Pivot Bush 402-000-093
US$29.87
17 Thrust Washer [402-000-105] Thrust Washer 402-000-105
US$14.84
18 Bush [402-840-260] Bush 402-840-260
US$159.90
19 Sleeve [402-840-580] Sleeve 402-840-580
US$25.83
20 Outrigger Arm Weldment [418-000-516] Outrigger Arm Weldment 418-000-516
US$484.79
21 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
22 Rear Float Beam Weldment - Snake S2 [418-000-687] Rear Float Beam Weldment - Snake S2 418-000-687
US$247.11
23 Pin - Outrigger Hinge - Side/Rear [419-000-037] Pin - Outrigger Hinge - Side/Rear 419-000-037
US$87.13
24 Decal - Wear Pad - Rectangle [424-101-816] Decal - Wear Pad - Rectangle 424-101-816
US$5.66
25 End Cap - Hinge Tube End Insert [450-000-119] End Cap - Hinge Tube End Insert 450-000-119
US$4.75
26 Shim [418-000-001] Shim 418-000-001
US$34.55
