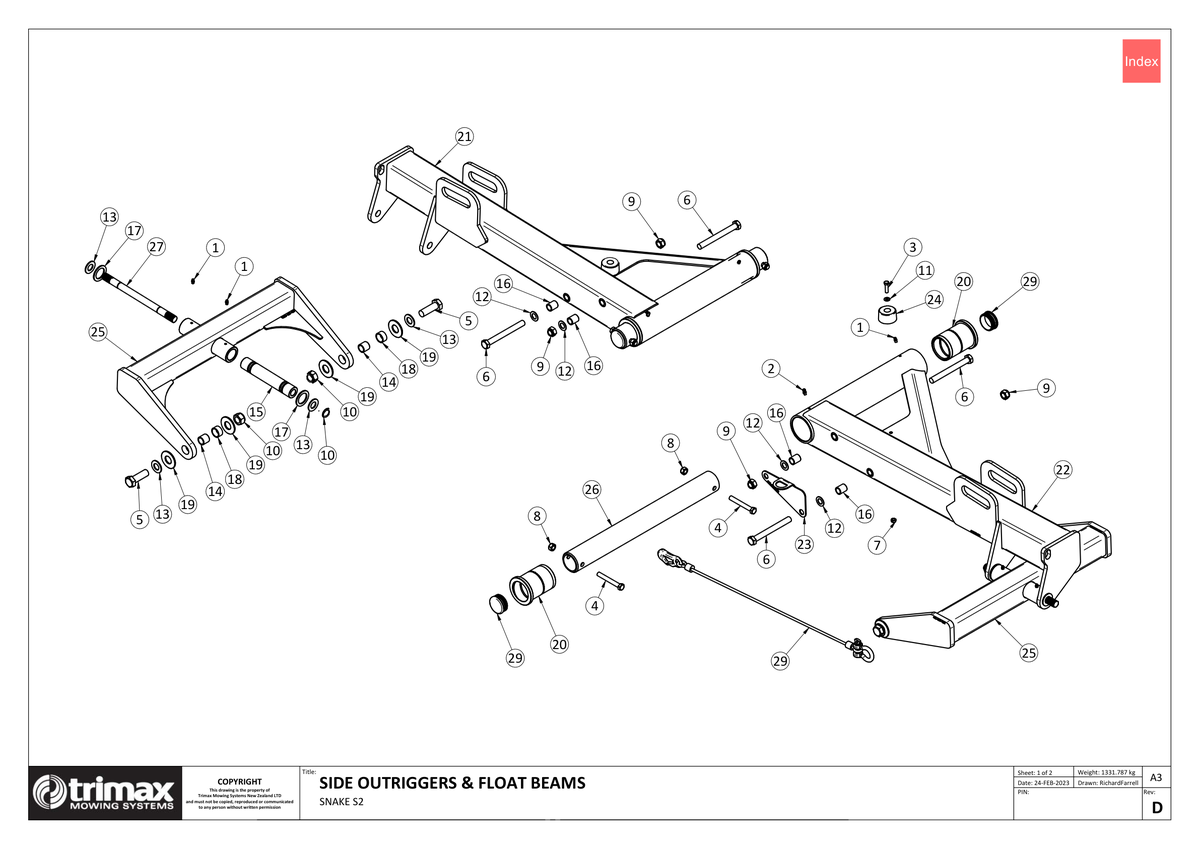

721 - Snake S2 - Side Outriggers and Float Beams

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - 1/4" Short [208-442-600] Grease Nipple - 1/4" Short 208-442-600
US$3.72
2 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
3 Bolt [301-208-303] Bolt 301-208-303
US$0.29
4 Bolt [301-212-903] Bolt 301-212-903
US$8.19
5 Bolt [301-220-603] Bolt 301-220-603
US$4.56
6 Bolt [301-616-153] Bolt 301-616-153
US$13.69
7 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
8 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
9 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
10 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
11 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
12 Washer - Flat [308-160-013] Washer - Flat 308-160-013
US$0.61
13 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
14 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
US$13.03
15 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
16 Bush - Lock Inner [402-000-076] Bush - Lock Inner 402-000-076
US$5.67
17 Thrust Washer [402-000-081] Thrust Washer 402-000-081
US$19.44
18 Bush - Composite Pivot Bush - 25mm [402-000-093] Bush - Composite Pivot Bush - 25mm 402-000-093
US$29.87
19 Thrust Washer [402-000-105] Thrust Washer 402-000-105
US$14.84
20 Bush [402-840-260] Bush 402-840-260
US$159.90
21 Outrigger Arm Weldment - RH [418-000-514] Outrigger Arm Weldment - RH 418-000-514
US$1,859.38
22 Outrigger Arm Weldment - LH [418-000-515] Outrigger Arm Weldment - LH 418-000-515
US$1,859.38
23 Attachment Bracket [418-000-535] Attachment Bracket 418-000-535
US$22.06
24 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
25 Side Float Beam Weldment - Snake S2 [418-000-688] Side Float Beam Weldment - Snake S2 418-000-688
US$745.40
26 Pin - Outrigger Hinge - Side/Rear [419-000-037] Pin - Outrigger Hinge - Side/Rear 419-000-037
US$87.13
27 Pin - Pitch Pivot [419-000-069] Pin - Pitch Pivot 419-000-069
US$67.44
28 End Cap - Hinge Tube End Insert [450-000-119] End Cap - Hinge Tube End Insert 450-000-119
US$4.75
