NOTES:

Part # Number on image Usage Notes
301-220-857 5
  • Can also use bolt P/N 301-220-853 and apply threadlocker of medium bond strength
412-000-256 17
  • Height Indicator rods are available in two configurations, Metric & Imperial , order according to mower fitment
412-000-258 17
  • Height Indicator rods are available in two configurations, Metric & Imperial , order according to mower fitment

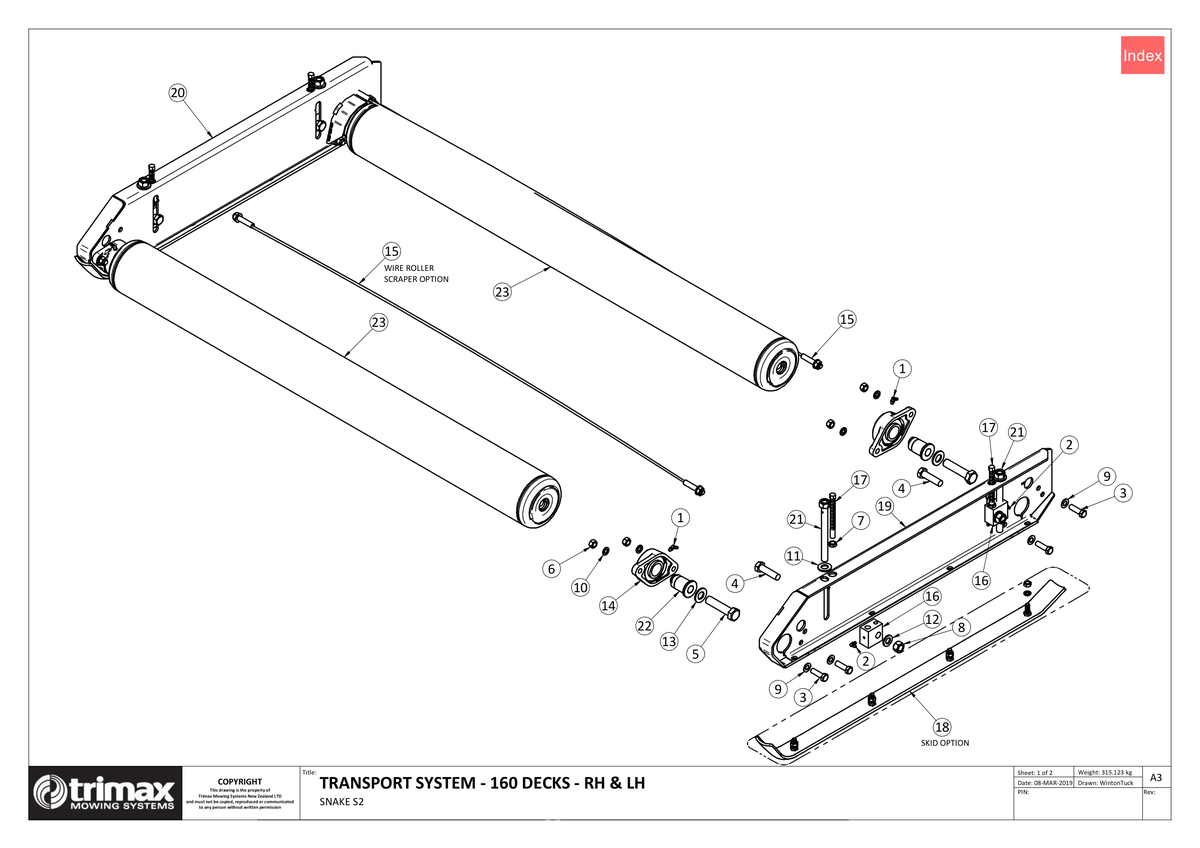

721 - Snake S2 - Transport System - 160 Decks

Snake S2 320, Snake S2 400

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
2 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
3 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
4 Bolt - Hex Head - M16 x 60 - Trimax Specification [301-216-603] Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603
US$1.74
5 Bolt - Hex Head - M20 x 85 - Trimax Specification [301-220-857] Bolt - Hex Head - M20 x 85 - Trimax Specification i See notes section for usage notes on this part 301-220-857
US$8.00
6 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
7 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
8 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
9 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
10 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
11 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
12 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
13 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
14 Roller Bearing Assembly - Trimax Specification [401-020-701] Roller Bearing Assembly - Trimax Specification 401-020-701
US$63.00
15 Scraper - Roller 160 [404-000-131] Scraper - Roller 160 404-000-131
US$82.00
16 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
US$58.77
17 Height Indicator - Metric [412-000-256] Height Indicator - Metric i See notes section for usage notes on this part 412-000-256
US$19.91
17 Height Indicator - Imperial [412-000-258] Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258
US$19.91
18 Skid Assembly - Anti-Bounce Wear Skid w/ M10 Nuts & Washers - [412-000-302] Skid Assembly - Anti-Bounce Wear Skid w/ M10 Nuts & Washers - 412-000-302
US$154.06
19 Side Channel Weldment - LocTek - LH [412-000-327] Side Channel Weldment - LocTek - LH 412-000-327
US$439.28
20 Side Channel Weldment - LocTek - RH [412-000-328] Side Channel Weldment - LocTek - RH 412-000-328
US$439.28
21 Set Screw - Hex Head - M16 x 180 - Trimax Specification [313-616-183] Set Screw - Hex Head - M16 x 180 - Trimax Specification 313-616-183
US$16.26
22 Roller Stub Sleeve - LocTek - [414-000-076] Roller Stub Sleeve - LocTek - 414-000-076
US$35.06
23 Roller Weldment - LocTek 160 [414-000-100] Roller Weldment - LocTek 160 414-000-100
US$446.25
