NOTES:

Part # Number on image Usage Notes
405-201-020 46
  • For internal parts and service information refer to your local dealer
406-340-890 50
  • For internal parts and service information refer to your local dealer
416-842-000 63
  • For internal parts and service information refer to your local dealer
421-847-000 101
  • If wiring is required with light unit - specify left or right
424-100-900 111
  • Refer to operators manual for decal positions
418-840-350 117
  • This item is welded on early models
460-000-234 124
  • Item 124 Includes items 97,98,99,100 & 123 as Kit.

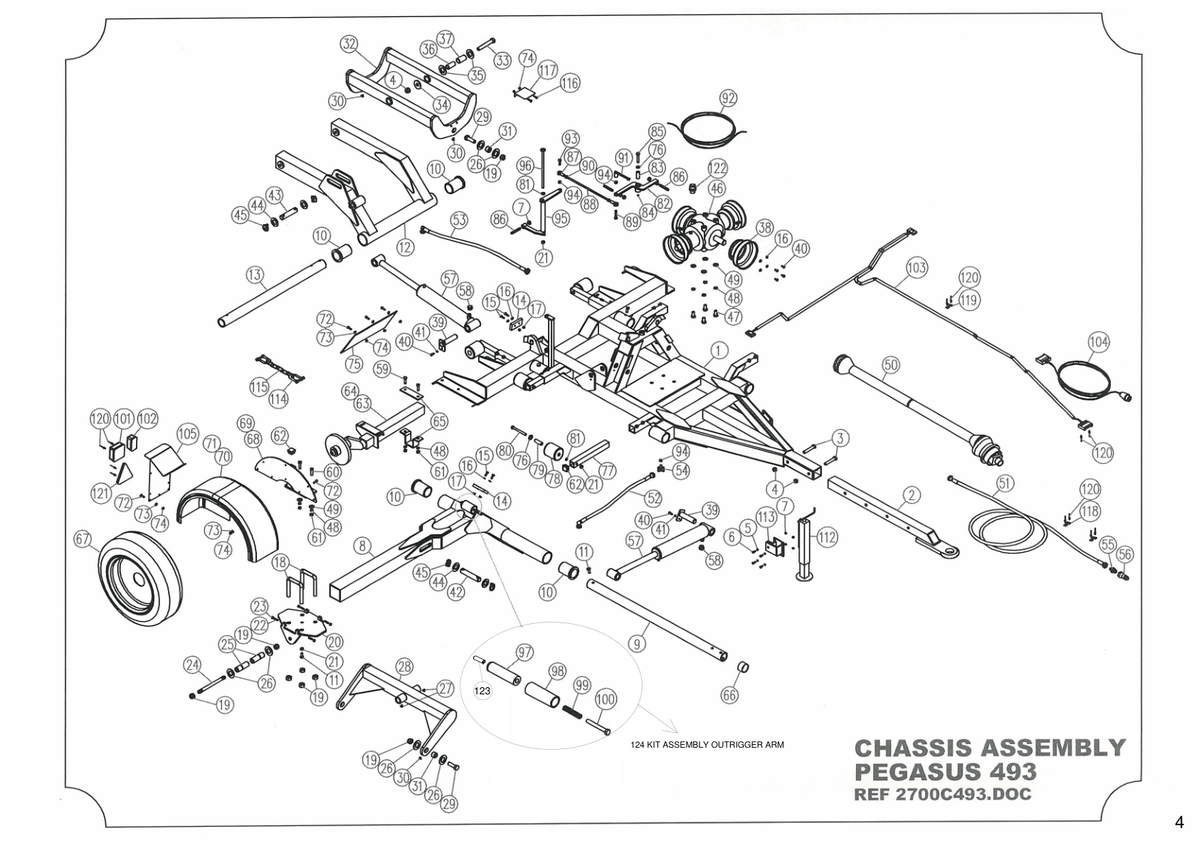

726 - Pegasus S1 - CHASSIS ASSEMBLY

Pegasus S1 493

Grouped product items
No. Image Product Name Price Quantity
3 Bolt [301-616-113] Bolt 301-616-113
US$7.89
4 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
5 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
6 Bolt [301-212-353] Bolt 301-212-353
US$2.98
7 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
9 Pin - Outrigger Hinge - Side [419-840-210] Pin - Outrigger Hinge - Side 419-840-210
US$251.86
10 Bush [402-840-260] Bush 402-840-260
US$159.90
11 Bolt [301-212-253] Bolt 301-212-253
US$2.26
13 Pin - Outrigger Hinge - Rear [419-840-200] Pin - Outrigger Hinge - Rear 419-840-200
US$252.14
14 Buffer Pad [418-840-300] Buffer Pad 418-840-300
US$29.90
15 Bolt [301-208-253] Bolt 301-208-253
US$0.89
16 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
17 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
18 U-Bolt [215-840-400] U-Bolt 215-840-400
US$60.28
19 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
US$1.49
20 Pitch Bracket Weldment - Side Outrigger Assembly [418-840-060] Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060
US$455.09
21 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
22 Grub Screw [312-208-305] Grub Screw 312-208-305
US$0.84
23 Nut - Plain [307-208-013] Nut - Plain 307-208-013
US$0.20
24 Pin - Pitch Pivot [419-840-450] Pin - Pitch Pivot 419-840-450
US$70.32
25 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
26 Thrust Washer [402-840-520] Thrust Washer 402-840-520
US$57.40
27 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
28 Side Float Beam Weldment [418-840-070] Side Float Beam Weldment 418-840-070
US$658.80
29 Bolt [301-220-753] Bolt 301-220-753
US$13.55
30 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
31 Hardened Bush [402-840-550] Hardened Bush 402-840-550
US$31.74
33 Bolt [301-616-203] Bolt 301-616-203
US$17.71
34 Heavy Washer [402-840-560] Heavy Washer 402-840-560
US$10.21
35 Washer - Pitch Pivot Rear [402-840-570] Washer - Pitch Pivot Rear 402-840-570
US$14.64
36 Sleeve [402-840-580] Sleeve 402-840-580
US$25.83
37 Bush - Pitch Pivot Rear [402-840-590] Bush - Pitch Pivot Rear 402-840-590
US$43.91
38 Cone [410-440-400] Cone 410-440-400
US$25.22
39 Pin Weldment - Hydraulic Cylinder [419-845-500] Pin Weldment - Hydraulic Cylinder 419-845-500
US$21.08
40 Bolt [301-208-163] Bolt 301-208-163
US$1.05
41 Washer - Spring [308-080-043] Washer - Spring 308-080-043
US$0.29
42 Pin - Side Deck Lift Upper - Hydraulic Cylinder [419-845-510] Pin - Side Deck Lift Upper - Hydraulic Cylinder 419-845-510
US$71.63
44 Heavy Washer - Lift Ram Pin - Sliding [402-845-530] Heavy Washer - Lift Ram Pin - Sliding 402-845-530
US$6.28
45 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
46 Gearbox [405-201-020] Gearbox i See notes section for usage notes on this part 405-201-020
US$2,227.80
47 Bolt [301-216-353] Bolt 301-216-353
US$6.85
48 Washer [308-160-043] Washer 308-160-043
US$0.60
49 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
50 PTO Shaft Wide Angle [406-340-890] PTO Shaft Wide Angle i See notes section for usage notes on this part 406-340-890
US$1,147.98
51 Hose Assembly [409-448-400] Hose Assembly 409-448-400
US$264.45
52 Hose Assembly [409-448-420] Hose Assembly 409-448-420
US$118.08
53 Hose Assembly [409-448-430] Hose Assembly 409-448-430
US$100.86
54 Junction Assembly - Hydraulic [408-448-500] Junction Assembly - Hydraulic 408-448-500
US$209.10
55 Nipple [408-448-280] Nipple 408-448-280
US$19.01
56 Coupling [408-447-580] Coupling 408-447-580
US$45.61
58 Breather [408-448-480] Breather 408-448-480
US$59.04
59 Bolt [301-216-453] Bolt 301-216-453
US$6.85
60 Bolt [301-216-503] Bolt 301-216-503
US$4.33
61 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
62 Cap - Tube Insert Square [209-480-661] Cap - Tube Insert Square 209-480-661
US$21.88
63 Assembly - Duratorque Right [416-842-000] Assembly - Duratorque Right i See notes section for usage notes on this part 416-842-000
US$1,721.97
66 Cap - Round [209-840-320] Cap - Round 209-840-320
US$8.30
72 Bolt [301-206-203] Bolt 301-206-203
US$0.12
73 Washer - Fender [108-041-613] Washer - Fender 108-041-613
Price on Request
74 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
76 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
78 Guide Roller [418-840-150] Guide Roller 418-840-150
US$87.33
79 Bush - Guide Roller [402-840-160] Bush - Guide Roller 402-840-160
US$18.33
80 Bolt [301-612-123] Bolt 301-612-123
US$4.32
81 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
82 Release Assembly [418-840-630] Release Assembly 418-840-630
US$209.10
83 Bush [402-840-650] Bush 402-840-650
US$29.52
84 Grease Nipple [208-442-600] Grease Nipple 208-442-600
US$3.72
85 Bolt [301-212-653] Bolt 301-212-653
US$3.72
86 Release Lever Pin Assembly [419-000-013] Release Lever Pin Assembly 419-000-013
US$25.27
87 Bearing [401-840-800] Bearing 401-840-800
US$43.70
89 Bolt [301-210-503] Bolt 301-210-503
US$1.64
90 Nut - Plain [307-210-013] Nut - Plain 307-210-013
US$0.60
91 Release Rope Mount Weldment [418-840-680] Release Rope Mount Weldment 418-840-680
US$89.53
92 Release Cord - Transport Lock [404-840-690] Release Cord - Transport Lock 404-840-690
US$16.98
93 Bolt [305-210-403] Bolt 305-210-403
US$1.98
94 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
97 Pin - Transport Lock [419-840-700] Pin - Transport Lock 419-840-700
US$102.09
98 Bush [402-840-710] Bush 402-840-710
US$47.47
99 Spring - Compression [207-840-720] Spring - Compression 207-840-720
US$12.21
100 Bolt [301-208-906] Bolt 301-208-906
US$1.86
101 Trailer Lights - LED - Mudguard LH/RH [421-847-000] Trailer Lights - LED - Mudguard LH/RH i See notes section for usage notes on this part 421-847-000
US$291.33
104 Wiring Loom Adaptor - Electrical Trailer [421-847-210] Wiring Loom Adaptor - Electrical Trailer 421-847-210
US$127.63
111 Decal - Instruction - PTO Speed 540RPM [424-100-900] Decal - Instruction - PTO Speed 540RPM i See notes section for usage notes on this part 424-100-900
US$6.06
114 D-Shackle [214-446-280] D-Shackle 214-446-280
US$9.14
115 Steel Chain [901-070-001] Steel Chain 901-070-001
US$32.96
116 Bolt [301-206-303] Bolt 301-206-303
Price on Request
117 Folding [418-840-350] Folding i See notes section for usage notes on this part 418-840-350
US$40.80
120 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
121 Reflector - Safety Triangle [421-847-050] Reflector - Safety Triangle 421-847-050
US$21.04
122 Breather - Gearbox [405-207-207] Breather - Gearbox 405-207-207
US$21.66
123 Grub Screw [312-208-255] Grub Screw 312-208-255
US$2.17
124 Kit Assembly - Outrigger Arm - Pegasus [460-000-234] Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234
Price on Request
