NOTES:

Part # Number on image Usage Notes
460-000-234 30
  • Item 30 Includes items 10,11,12,13 & 28 as Kit.
  • Item 30 Includes items 10,11,12,13 & 28 as Kit.
  • Item 30 Includes items 10,11,12,13 & 28 as Kit.

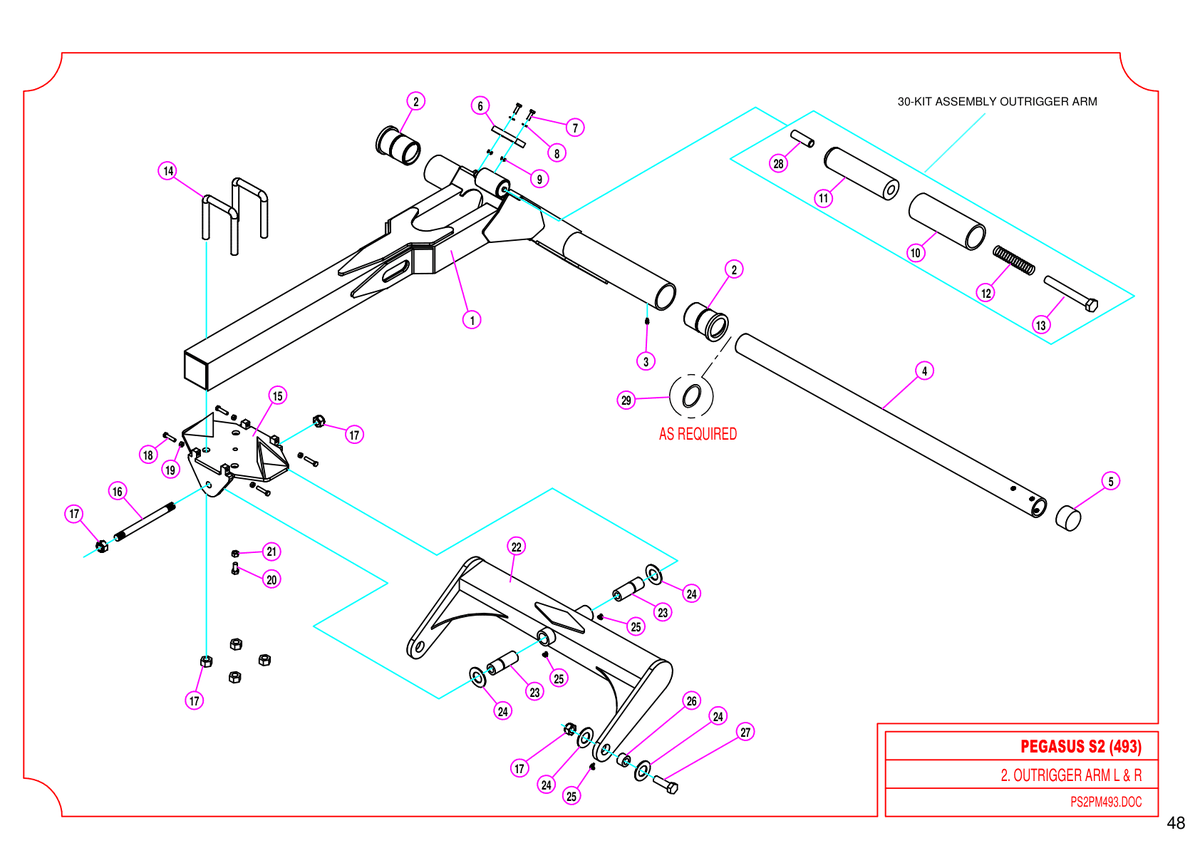

726 - Pegasus S2 - OUTRIGGER ARM L & R

Pegasus S2 493, Pegasus S2 610

Grouped product items
No. Image Product Name Price Quantity
2 Bush [402-840-260] Bush 402-840-260
US$159.90
3 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
4 Pin - Outrigger Hinge - Side [419-840-210] Pin - Outrigger Hinge - Side 419-840-210
US$251.86
5 Plastic Cap - Round Ø63 x 36 [209-840-320] Plastic Cap - Round Ø63 x 36 209-840-320
US$8.30
6 Buffer Pad [418-840-300] Buffer Pad 418-840-300
US$29.90
7 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
US$0.89
8 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
9 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
10 Bush [402-840-710] Bush 402-840-710
US$47.47
11 Pin - Transport Lock [419-840-700] Pin - Transport Lock 419-840-700
US$102.09
12 Spring - Compression [207-840-720] Spring - Compression 207-840-720
US$12.21
13 Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification [301-208-906] Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906
US$1.86
14 U-Bolt [215-840-400] U-Bolt 215-840-400
US$60.28
15 Pitch Bracket Weldment - Side Outrigger Assembly [418-840-060] Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060
US$455.09
16 Pin - Pitch Pivot [419-840-450] Pin - Pitch Pivot 419-840-450
US$70.32
17 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
19 Nut - Plain [307-208-013] Nut - Plain 307-208-013
US$0.20
20 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
US$2.26
21 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
22 Side Float Beam Weldment [418-840-070] Side Float Beam Weldment 418-840-070
US$658.80
23 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
24 Thrust Washer [402-840-520] Thrust Washer 402-840-520
US$57.40
25 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
26 Hardened Bush [402-840-550] Hardened Bush 402-840-550
US$31.74
27 Bolt - Hex Head - M20 x 75 - Trimax Specification [301-220-753] Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753
US$13.55
28 Grub Screw [312-208-255] Grub Screw 312-208-255
US$2.17
29 Shim [418-000-001] Shim 418-000-001
US$34.55
30 Kit Assembly - Outrigger Arm - Pegasus [460-000-234] Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234
Price on Request
