NOTES:

Part #	Number on image	Usage Notes
460-000-234	25	Item 25 Includes items 5,6,7,8 & 23 as Kit. Item 25 Includes items 5,6,7,8 & 23 as Kit. Item 25 Includes items 5,6,7,8 & 23 as Kit.

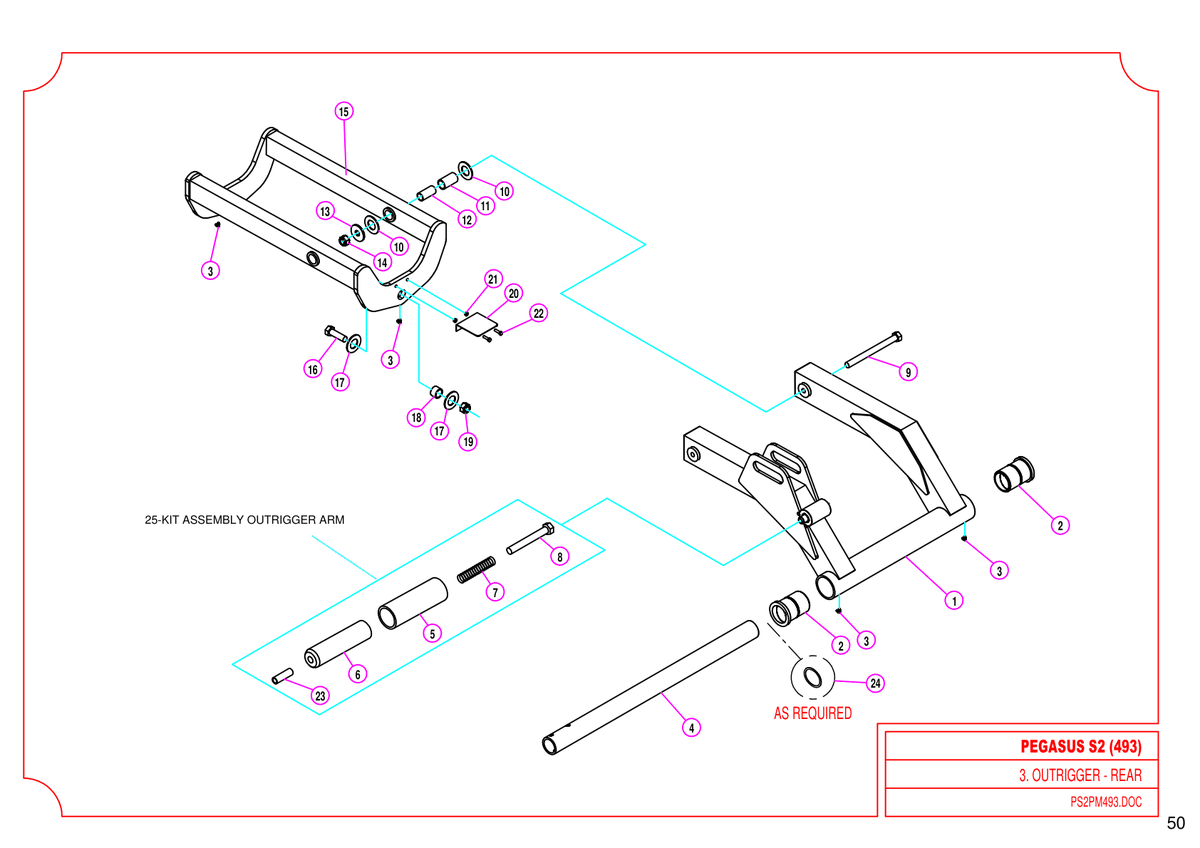

726 - Pegasus S2 - OUTRIGGER - REAR

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	US$159.90
3	Grease Nipple - Trimax Specification 208-442-650 More Info >	US$4.76
4	Pin - Outrigger Hinge - Rear 419-840-200 More Info >	US$252.14
5	Bush 402-840-710 More Info >	US$47.47
6	Pin - Transport Lock 419-840-700 More Info >	US$102.09
7	Spring - Compression 207-840-720 More Info >	US$12.21
8	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	US$1.86
9	Bolt - Hex Head - M16 x 200 - Trimax Specification 301-616-203 More Info >	US$17.71
10	Washer - Pitch Pivot Rear 402-840-570 More Info >	US$14.64
11	Bush - Pitch Pivot Rear 402-840-590 More Info >	US$43.91
12	Sleeve 402-840-580 More Info >	US$25.83
13	Heavy Washer 402-840-560 More Info >	US$10.21
14	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
15	Rear Float Beam Weldment 418-844-050 More Info >	US$799.49
16	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	US$13.55
17	Thrust Washer 402-840-520 More Info >	US$57.40
18	Hardened Bush 402-840-550 More Info >	US$31.74
19	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	US$1.49
20	Folding 418-840-350 More Info >	US$40.80
21	Nut - Nyloc 307-206-053 More Info >	US$0.10
22	Bolt - Hex Head - M6 x 30 - Trimax Specification 301-206-303 More Info >	Price on Request
23	Grub Screw 312-208-255 More Info >	US$2.17
24	Shim 418-000-001 More Info >	US$34.55
25	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	Price on Request
