NOTES:

Part #	Number on image	Usage Notes
406-000-084	12	PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.

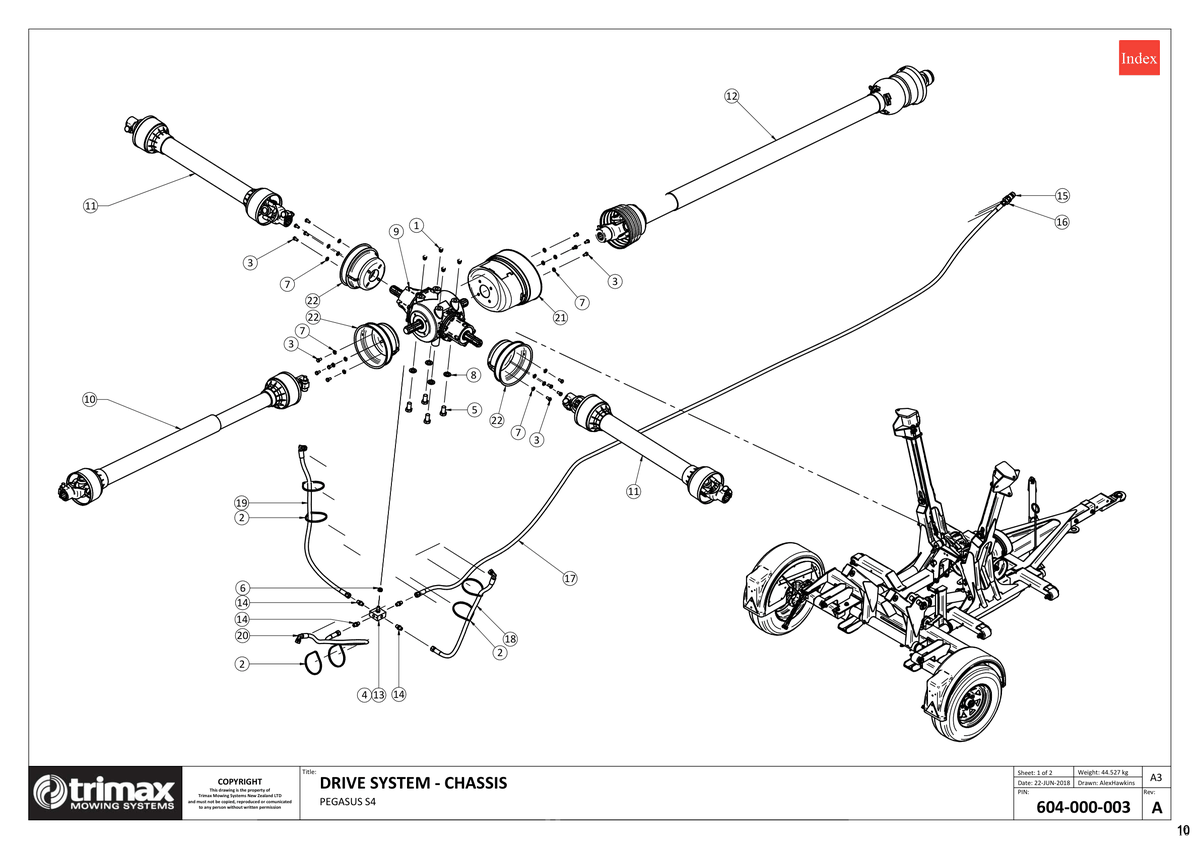

727-722 - Pegasus S4 - Chassis Drive System

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-013 More Info >	US$0.45
2	Cable Tie - Black 210-900-011 More Info >	US$0.77
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	US$1.05
4	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	US$0.44
5	Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303 More Info >	US$1.77
6	Nut - Nyloc 307-210-053 More Info >	US$0.60
7	Washer - Flat 308-080-016 More Info >	US$0.25
8	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
9	Gearbox 405-201-020 More Info >	US$2,227.80
10	PTO Shaft 406-340-570 More Info >	US$418.19
11	PTO Shaft 406-340-590 More Info >	US$418.19
12	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084	US$1,147.98
13	Hydraulic Junction - 4-Way Block 408-000-001 More Info >	US$165.75
15	Coupling 408-447-580 More Info >	US$45.61
16	Nipple 408-448-280 More Info >	US$19.01
17	Hose Assembly - Hydraulic - Tractor 409-000-076 More Info >	US$107.73
18	Hose Assembly 409-448-420 More Info >	US$118.08
20	Hose Assembly 409-448-430 More Info >	US$100.86
21	PTO Cone - Wide angle 410-000-257 More Info >	US$70.23
22	Cone - PTO Holes Punched 410-440-402 More Info >	US$25.22
