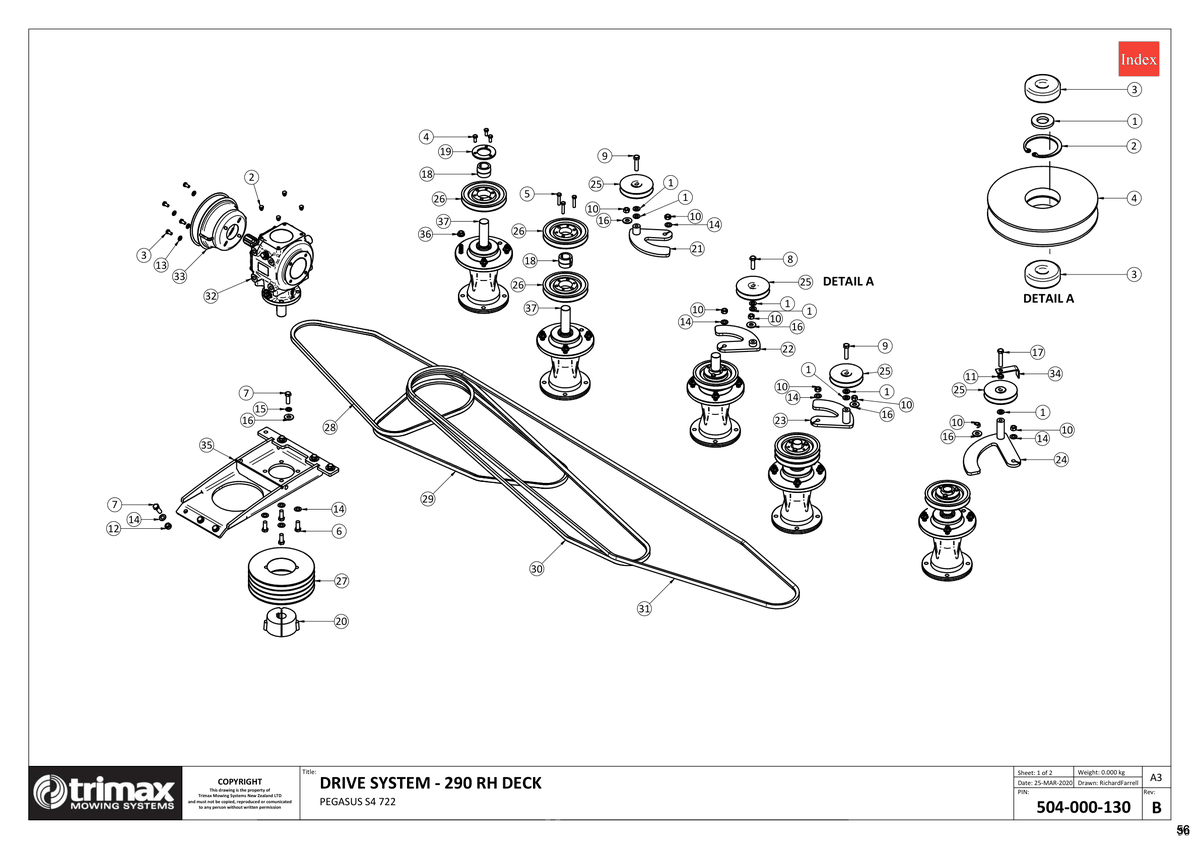

727-722 - Pegasus S4 - Drive System 290 RH - Biloc

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
3 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
4 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
5 Bolt - Hex Head - M8 x 40 - Trimax Specification [301-208-403] Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403
US$1.64
6 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
7 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
8 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
9 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
10 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
11 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
12 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
13 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
14 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
15 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
16 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
17 Set Screw [313-212-603] Set Screw 313-212-603
Price on Request
18 Bush [402-060-320] Bush 402-060-320
US$27.23
19 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
20 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
21 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
22 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
US$60.30
23 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
24 Idler Weldment - Large Long [403-330-444] Idler Weldment - Large Long 403-330-444
US$83.08
25 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
26 Pulley [403-360-300] Pulley 403-360-300
US$63.88
27 Pulley - Taper Lock [403-361-290] Pulley - Taper Lock 403-361-290
US$221.40
28 Vee Belt - Trimax Specification [404-040-750] Vee Belt - Trimax Specification 404-040-750
US$30.38
30 Vee Belt - Trimax Specification [404-041-150] Vee Belt - Trimax Specification 404-041-150
US$50.63
31 Vee Belt - Trimax Specification [404-041-580] Vee Belt - Trimax Specification 404-041-580
US$61.63
32 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
33 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
34 Folding [417-001-178] Folding 417-001-178
US$1.96
35 Gearbox Mount Weldment [417-001-197] Gearbox Mount Weldment 417-001-197
US$288.36
36 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
37 Spindle Assembly - Steadfast [504-000-106] Spindle Assembly - Steadfast 504-000-106
US$749.70
2 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
3 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
4 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
