NOTES:

Part # Number on image Usage Notes
504-000-133 34
  • The new spindle with keyway is backwards compatible with prior machines

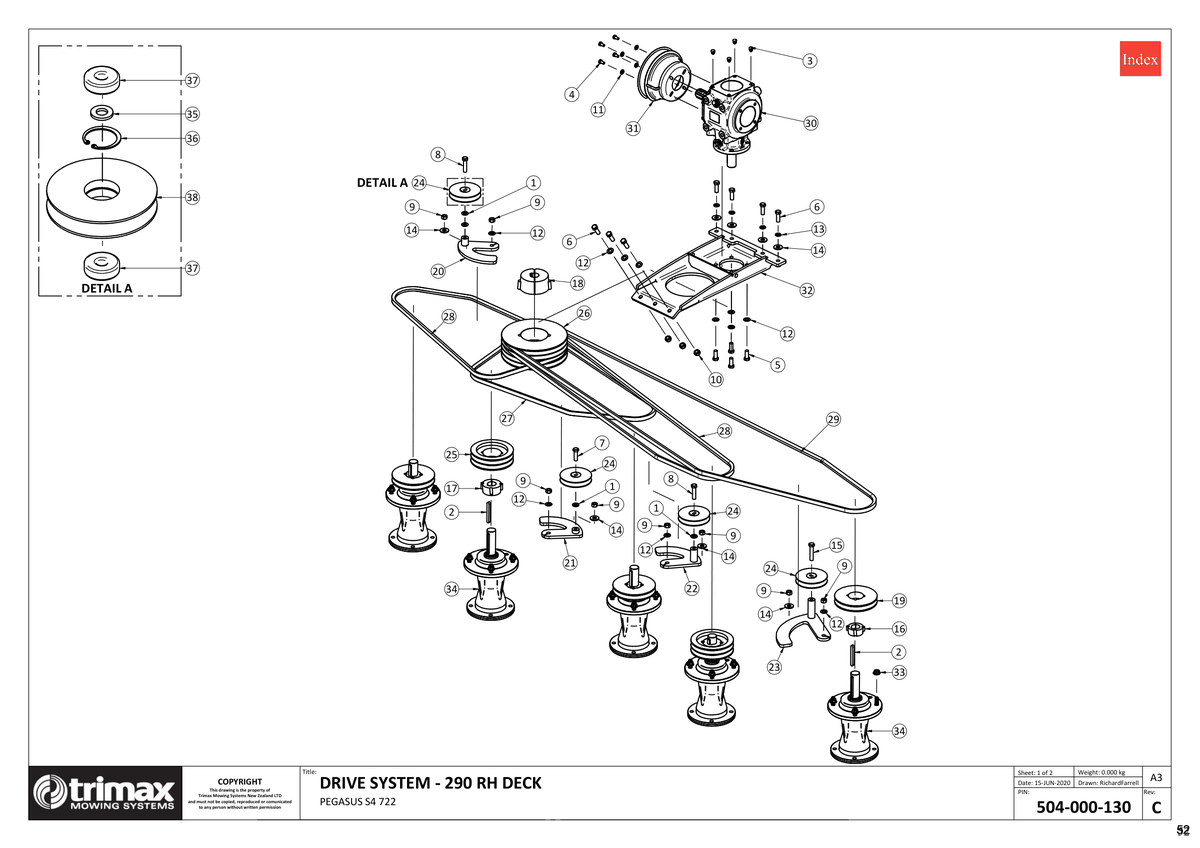

727-722 - Pegasus S4 - Drive System 290 RH - Taper Pulley

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 - Trimax Specification [205-000-003] Key - 10 x 8 x 85 - Trimax Specification 205-000-003
US$7.14
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
5 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
6 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
7 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
8 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
11 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
12 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
13 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
14 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
15 Set Screw [313-212-603] Set Screw 313-212-603
Price on Request
16 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
17 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
18 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
19 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
20 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
21 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
US$60.30
22 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
23 Idler Weldment - Large Long [403-330-444] Idler Weldment - Large Long 403-330-444
US$83.08
24 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
25 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
26 Pulley - Taper Lock - Trimax Specification [403-000-129] Pulley - Taper Lock - Trimax Specification 403-000-129
US$151.70
27 Vee Belt - Trimax Specification [404-040-750] Vee Belt - Trimax Specification 404-040-750
US$30.38
28 Vee Belt - Trimax Specification [404-041-140] Vee Belt - Trimax Specification 404-041-140
US$52.66
29 Vee Belt - Trimax Specification [404-041-580] Vee Belt - Trimax Specification 404-041-580
US$61.63
30 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
31 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
32 Gearbox Mount Weldment [417-001-197] Gearbox Mount Weldment 417-001-197
US$288.36
33 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
34 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133
US$1,058.76
36 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
37 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
38 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
