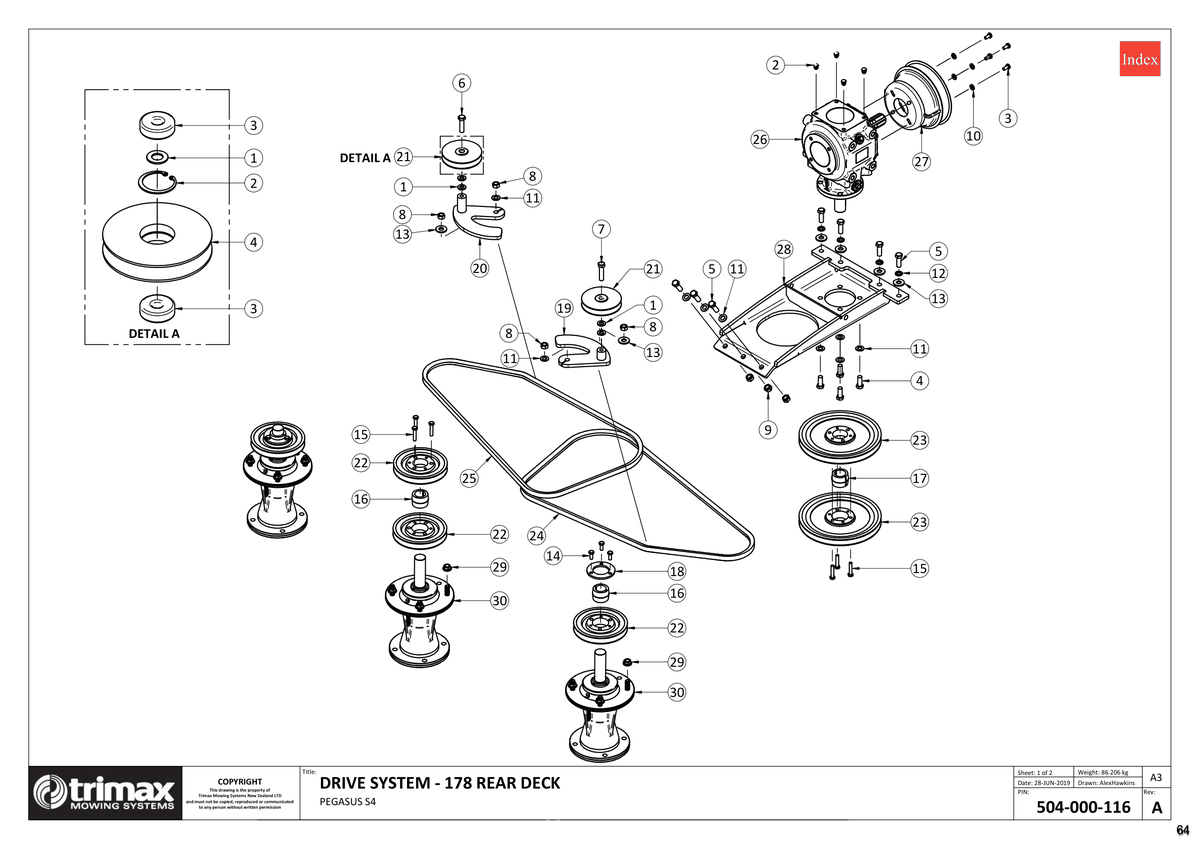

727-722 - Pegasus S4 - Drive System - Rear - Biloc

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	US$2.98
2	Blanking Plug - M12 209-900-012 More Info >	US$0.35
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	US$1.05
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
5	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
6	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	US$3.72
7	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	US$3.87
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
10	Washer - Flat 308-080-013 More Info >	US$1.34
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
13	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
14	Set Screw 313-208-203 More Info >	Price on Request
15	Set Screw 313-208-403 More Info >	Price on Request
16	Bush 402-060-320 More Info >	US$27.23
17	Bush 402-060-330 More Info >	US$49.11
18	Retainer Ring 402-060-450 More Info >	US$10.81
19	Idler Tower Incl Base 403-330-423 More Info >	US$62.65
20	Idler Tower Incl Base 403-330-432 More Info >	US$62.73
21	Pulley Assembly - Idler 403-360-111 More Info >	US$70.88
22	Pulley 403-360-300 More Info >	US$63.88
23	Pulley 403-360-650 More Info >	US$83.35
24	Vee Belt - Trimax Specification 404-040-750 More Info >	US$30.38
26	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	US$1,405.69
27	Cone - PTO Holes Punched 410-440-402 More Info >	US$25.22
28	Gearbox Mount Weldment 417-001-197 More Info >	US$288.36
29	Nut - Flange 450-000-078 More Info >	US$0.44
30	Spindle Assembly - Steadfast 504-000-106 More Info >	US$749.70
1	Washer - Flat 108-071-413 More Info >	US$2.53
2	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
3	Bearing - Trimax Specification - 401-021-900 More Info >	US$22.00
4	Pulley - Idler 403-360-110 More Info >	US$41.94
