NOTES:

Part #	Number on image	Usage Notes
404-320-129	22	Roller Scraper available as an option

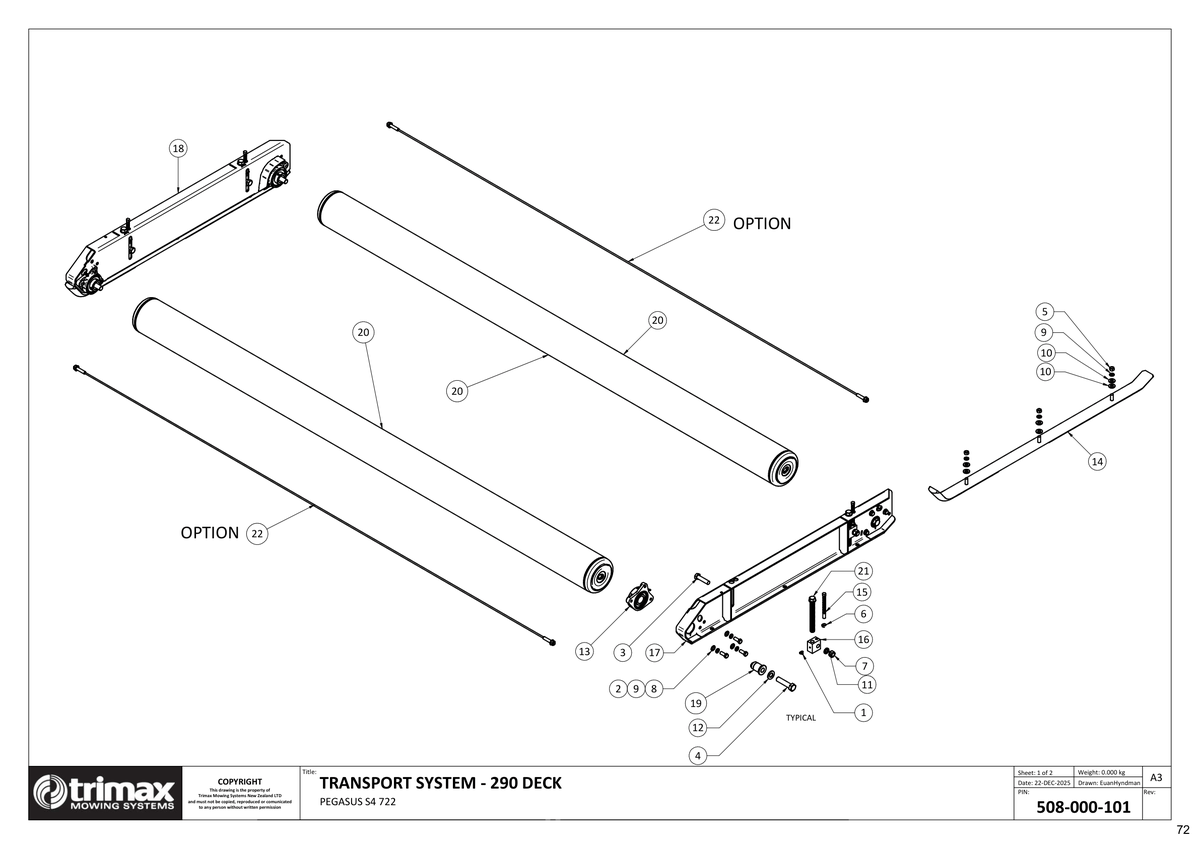

727-722 - Pegasus S4 - Transport System 290 Side Deck

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	US$4.76
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	US$5.20
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	US$8.00
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
6	Nut - Half 307-212-023 More Info >	US$0.80
7	Nut - Plain 307-216-013 More Info >	US$1.05
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
10	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
11	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
12	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
13	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-025 More Info >	US$183.00
14	Skid Assembly - Anti-Bounce 412-000-148 More Info >	US$185.94
15	Height Indicator - Imperial 412-000-258 More Info >	US$19.91
16	Height Adjuster Block 412-000-279 More Info >	US$53.50
17	Side Channel Weldment - LocTek - DR 412-000-286 More Info >	US$448.77
18	Side Channel Weldment - LocTek - DR 412-000-287 More Info >	US$448.77
19	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	US$35.06
20	Roller Weldment - Loctek 290 414-000-095 More Info >	US$850.00
21	Height Adjuster Rod - RapidSet 450-000-126 More Info >	US$33.59
22	Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129 More Info >	US$100.94
