NOTES:

Part #	Number on image	Usage Notes
504-328-042	15	504-328-042 greaseable spindle is obsolete and is replaced by 504-000-133 non-greaseable Spindle. Individual replaceable parts are still available for greaseable spindles from Trimax. 504-328-042 greaseable spindle is obsolete and is replaced by 504-000-133 non-greaseable Spindle. Individual replaceable parts are still available for greaseable spindles from Trimax. 504-328-042 greaseable spindle is obsolete and is replaced by 504-000-133 non-greaseable Spindle. Individual replaceable parts are still available for greaseable spindles from Trimax.

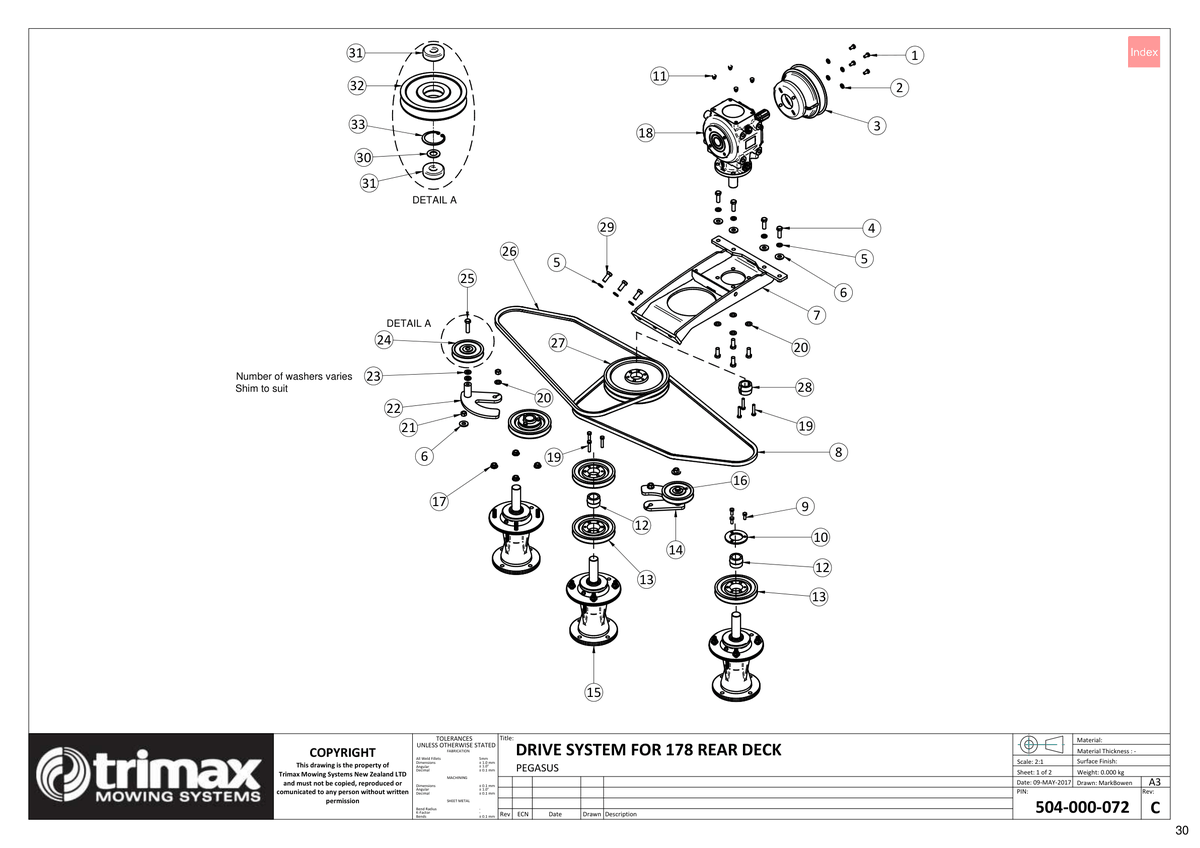

727 - Pegasus S3 - 178 REAR DRIVE SYSTEM - 504-000-072

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	US$1.05
2	Washer - Flat 308-080-016 More Info >	US$0.25
3	Cone - PTO Holes Punched 410-440-402 More Info >	US$25.22
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
5	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
6	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
7	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	US$307.50
9	Set Screw 313-208-203 More Info >	Price on Request
10	Retainer Ring 402-060-450 More Info >	US$10.81
11	Blanking Plug - M12 209-900-012 More Info >	US$0.35
12	Bush 402-060-320 More Info >	US$27.23
13	Pulley 403-360-300 More Info >	US$63.88
14	Idler Tower Incl Base 403-330-423 More Info >	US$62.65
15	Spindle Assembly - Type 5a Ext 50mm i See notes section for usage notes on this part 504-328-042 More Info >	US$784.85
16	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	US$3.87
17	Nut - Flange 450-000-078 More Info >	US$0.44
18	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	US$1,405.69
19	Set Screw 313-208-403 More Info >	Price on Request
20	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
21	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
22	Idler Tower Incl Base 403-330-432 More Info >	US$62.73
23	Washer - Hardened 108-071-513 More Info >	US$2.98
25	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	US$3.72
8	Vee Belt - Trimax Specification 404-040-750 More Info >	US$30.38
27	Pulley 403-360-650 More Info >	US$83.35
28	Bush 402-060-330 More Info >	US$49.11
29	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
30	Washer - Flat 108-071-413 More Info >	US$2.53
31	Bearing - Trimax Specification - 401-021-900 More Info >	US$22.00
24	Pulley - Idler 403-360-110 More Info >	US$41.94
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
