NOTES:

Part #	Number on image	Usage Notes
504-328-042	16	504-328-042 greaseable spindle is obsolete and is replaced by 504-000-133 non-greaseable Spindle. Individual replaceable parts are still available for greaseable spindles from Trimax.

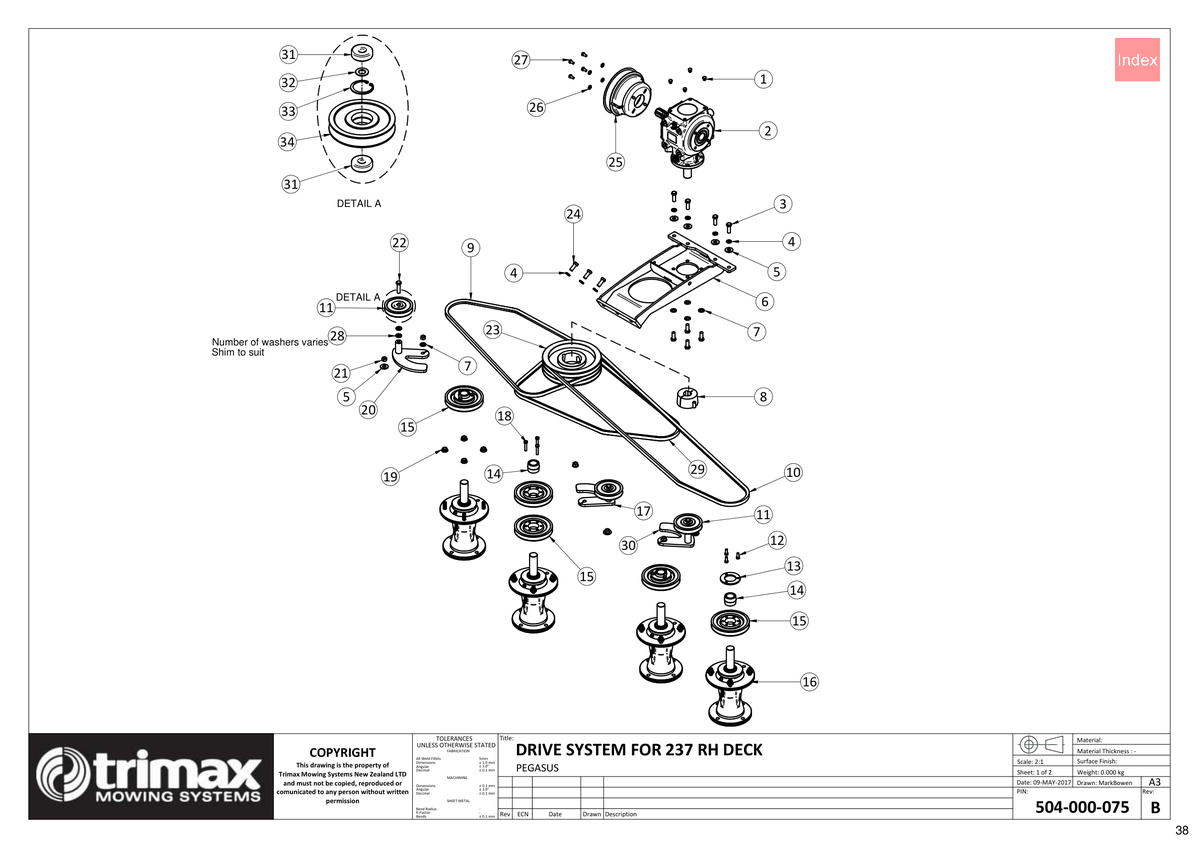

727 - Pegasus S3 - 237 RH DRIVE SYSTEM - 504-000-075

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug - M12 209-900-012 More Info >	US$0.35
2	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	US$1,405.69
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
5	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
6	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	US$307.50
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
8	Bush - Taper Lock 402-060-820 More Info >	US$57.31
10	Vee Belt - Trimax Specification 404-041-150 More Info >	US$50.63
11	Pulley Assembly - Idler 403-360-111 More Info >	US$70.88
12	Set Screw 313-208-203 More Info >	Price on Request
13	Retainer Ring 402-060-450 More Info >	US$10.81
14	Bush 402-060-320 More Info >	US$27.23
15	Pulley 403-360-300 More Info >	US$63.88
16	Spindle Assembly - Type 5a Ext 50mm i See notes section for usage notes on this part 504-328-042 More Info >	US$784.85
17	Idler Tower Incl Base 403-330-423 More Info >	US$62.65
18	Set Screw 313-208-403 More Info >	Price on Request
19	Nut - Flange 450-000-078 More Info >	US$0.44
20	Idler Tower Incl Base 403-330-432 More Info >	US$62.73
21	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
22	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	US$3.72
23	Pulley 403-000-038 More Info >	US$153.23
24	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
25	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	US$45.26
26	Washer - Flat 308-080-016 More Info >	US$0.25
27	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	US$1.05
28	Washer - Hardened 108-071-513 More Info >	US$2.98
9	Vee Belt - Trimax Specification 404-040-750 More Info >	US$30.38
30	Idler Tower Incl Base 403-330-442 More Info >	US$63.96
31	Bearing - Trimax Specification - 401-021-900 More Info >	US$22.00
32	Washer - Flat 108-071-413 More Info >	US$2.53
33	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
34	Pulley - Idler 403-360-110 More Info >	US$41.94
