NOTES:

Part # Number on image Usage Notes
412-841-010 14
  • For gavanised mowers use 412-841-001 RH and 412-841-011 LH
412-841-000 15
  • For gavanised mowers use 412-841-001 RH and 412-841-011 LH

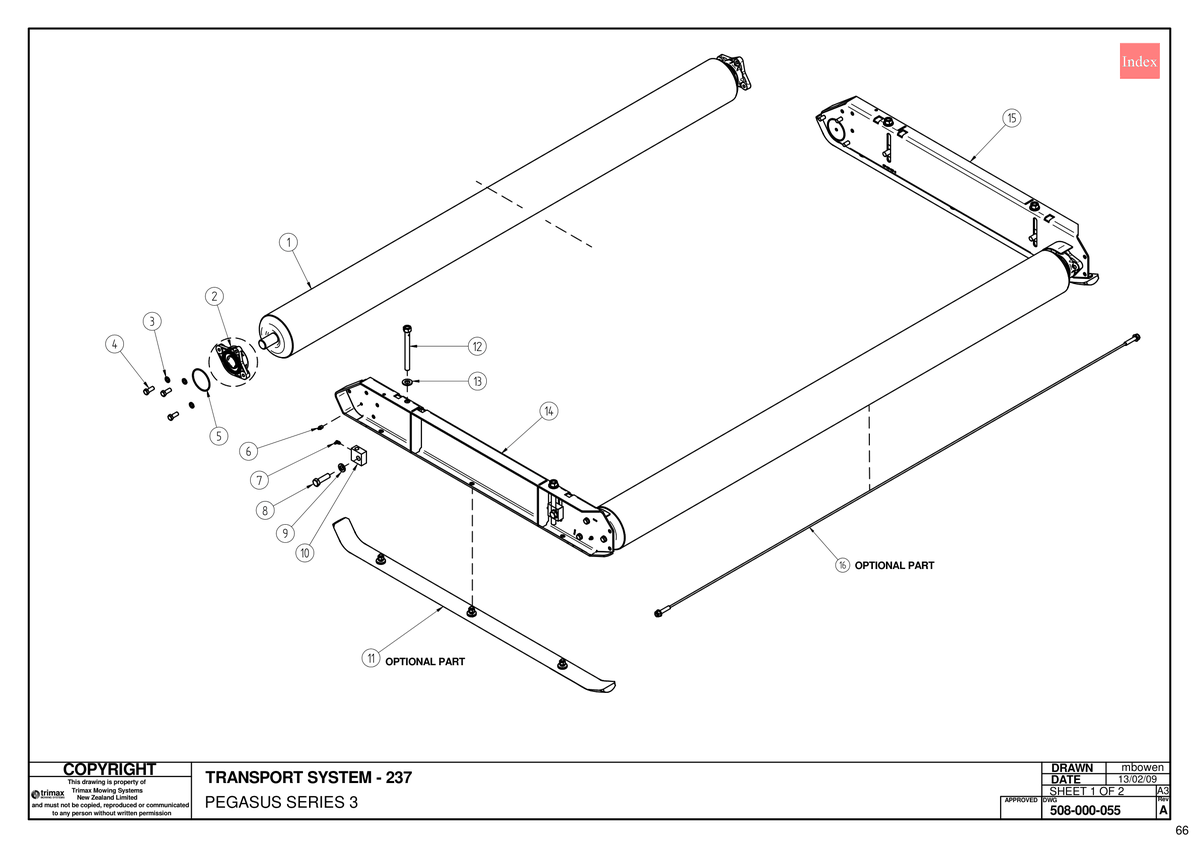

727 - Pegasus S3 - 237 TRANSPORT SYSTEM - 508-000-055

Pegasus S3 493, Pegasus S3 610

Grouped product items
No. Image Product Name Price Quantity
1 Roller Weldment 237 [414-320-023] Roller Weldment 237 414-320-023
US$644.28
2 Bearing Assembly [401-000-005] Bearing Assembly 401-000-005
US$136.27
3 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
4 Bolt [301-212-303] Bolt 301-212-303
US$3.13
5 O Ring [450-000-055] O Ring 450-000-055
US$2.70
6 Grease Nipple [208-442-550] Grease Nipple 208-442-550
US$2.45
7 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
8 Bolt [301-216-553] Bolt 301-216-553
US$10.87
9 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
10 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
US$26.95
11 Skid Assembly - Anti-Bounce [412-000-148] Skid Assembly - Anti-Bounce 412-000-148
US$185.94
12 Height Adj. Screw [412-850-251] Height Adj. Screw 412-850-251
US$32.80
13 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
14 Side Channel Weldment - DR LH Ext "S" [412-841-010] Side Channel Weldment - DR LH Ext "S" i See notes section for usage notes on this part 412-841-010
US$426.39
15 Side Channel Weldment - DR RH Ext "S" 178 [412-841-000] Side Channel Weldment - DR RH Ext "S" 178 i See notes section for usage notes on this part 412-841-000
US$426.39
16 Scraper - Roller 237 [404-320-124] Scraper - Roller 237 404-320-124
US$100.94
