NOTES:

Part # Number on image Usage Notes
214-446-280 2
  • Sold as an assembly P/N 506-000-025
  • Sold as an assembly P/N 506-000-025
  • Sold as an assembly P/N 506-000-025
404-000-004 3
  • Sold as an assembly P/N 506-000-025
  • Sold as an assembly P/N 506-000-025
  • Sold as an assembly P/N 506-000-025

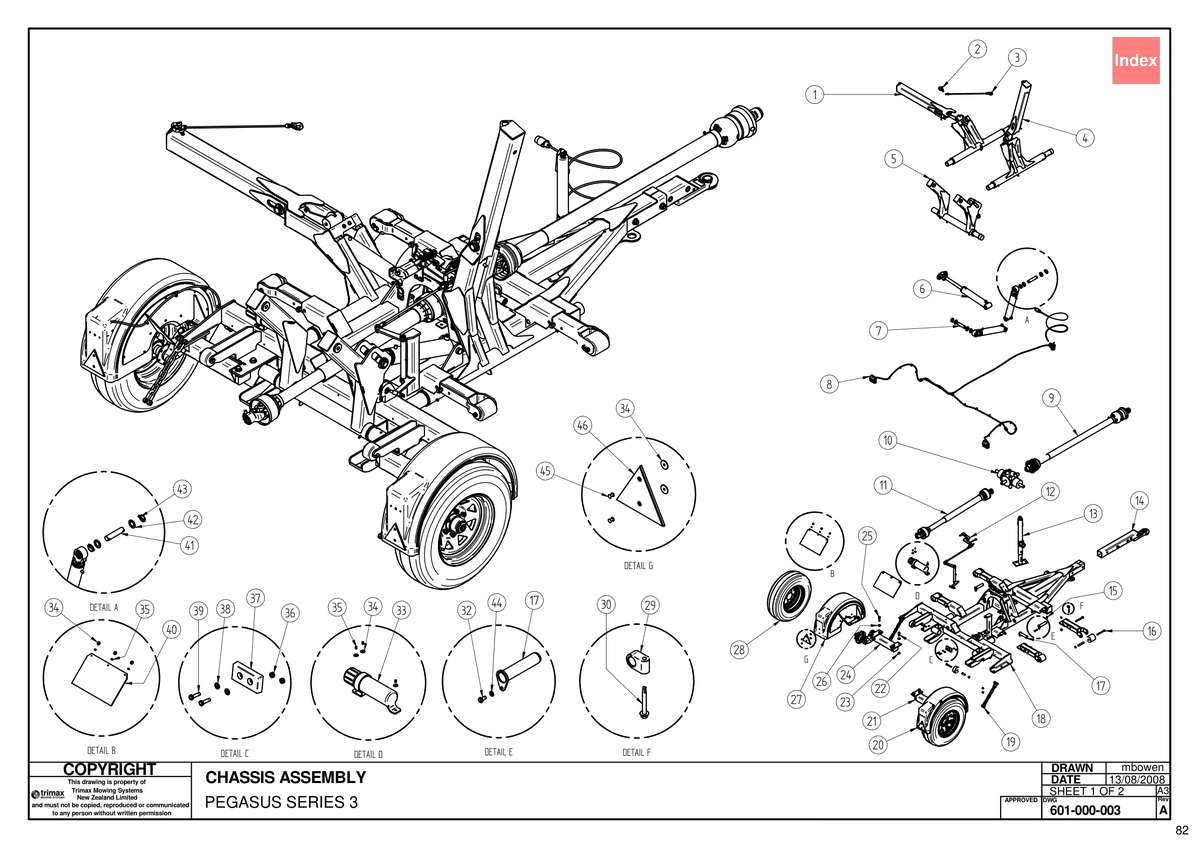

727 - Pegasus S3 - CHASSIS ASSY. - 601-000-003

Pegasus S3 493, Pegasus S3 610

Grouped product items
No. Image Product Name Price Quantity
2 D-Shackle [214-446-280] D-Shackle i See notes section for usage notes on this part 214-446-280
US$9.14
3 Cable [404-000-004] Cable i See notes section for usage notes on this part 404-000-004
US$78.49
6 Lift Ram Assembly [409-845-200] Lift Ram Assembly 409-845-200
US$1,352.98
7 Pin - Hydraulic Cylinder [419-845-550] Pin - Hydraulic Cylinder 419-845-550
US$51.66
9 PTO Shaft Wide Angle [406-340-890] PTO Shaft Wide Angle 406-340-890
US$1,147.98
10 Gearbox [405-201-020] Gearbox 405-201-020
US$2,227.80
11 PTO Shaft [406-340-570] PTO Shaft 406-340-570
US$418.19
13 Parking Jack Assembly [418-000-217] Parking Jack Assembly 418-000-217
US$187.43
15 Bolt [301-212-253] Bolt 301-212-253
US$2.26
17 Pin Weldment - Hydraulic Cylinder [419-845-500] Pin Weldment - Hydraulic Cylinder 419-845-500
US$21.08
19 Check Chain Assembly [404-000-006] Check Chain Assembly 404-000-006
US$23.23
20 Mudguard Assembly - Pegasus S4 RH [506-000-014] Mudguard Assembly - Pegasus S4 RH 506-000-014
US$220.56
21 Axle Assembly - Braked/Splined - RH [416-842-740] Axle Assembly - Braked/Splined - RH 416-842-740
US$1,230.85
22 Bolt [301-216-403] Bolt 301-216-403
US$1.43
23 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
24 Axle Assembly - Braked/Splined - LH [416-842-750] Axle Assembly - Braked/Splined - LH 416-842-750
US$1,230.85
25 Bolt [301-216-603] Bolt 301-216-603
US$1.74
26 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
28 Wheel Assembly - Road [416-842-620] Wheel Assembly - Road 416-842-620
US$651.89
29 Hose Clamp - Hydraulic Hose [408-000-037] Hose Clamp - Hydraulic Hose 408-000-037
US$3.12
31 Washer - Spring [308-100-043] Washer - Spring 308-100-043
US$0.29
32 Bolt [301-208-163] Bolt 301-208-163
US$1.05
33 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
US$33.38
34 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
35 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
36 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
37 Buffer Pad [418-840-300] Buffer Pad 418-840-300
US$29.90
38 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
39 Bolt [301-208-303] Bolt 301-208-303
US$0.29
41 Pin - Hydraulic Cylinder [419-845-560] Pin - Hydraulic Cylinder 419-845-560
US$57.31
42 Heavy Washer [402-845-580] Heavy Washer 402-845-580
US$15.75
43 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
44 Washer - Spring [308-080-043] Washer - Spring 308-080-043
US$0.29
46 Reflector - Safety Triangle [421-847-050] Reflector - Safety Triangle 421-847-050
US$21.04
