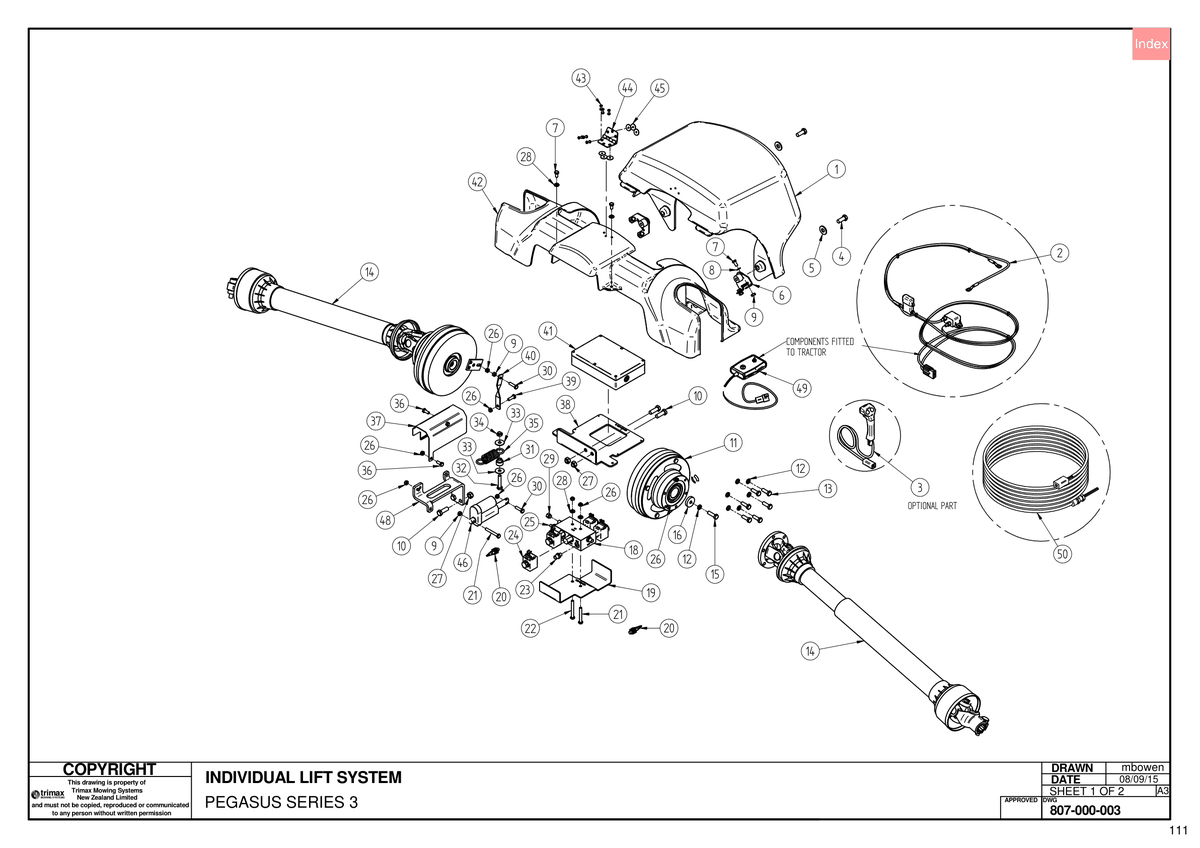

727 - Pegasus S3 - INDIVIDUAL LIFT SYSTEM 807-000-003

Pegasus S3 493, Pegasus S3 610

Grouped product items
No. Image Product Name Price Quantity
4 Bolt [301-212-303] Bolt 301-212-303
US$3.13
5 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
7 Bolt [301-208-163] Bolt 301-208-163
US$1.05
8 Washer - Spring [308-080-043] Washer - Spring 308-080-043
US$0.29
9 Nut - Plain [307-208-013] Nut - Plain 307-208-013
US$0.20
10 Bolt [301-212-353] Bolt 301-212-353
US$2.98
12 Washer - Spring [308-100-043] Washer - Spring 308-100-043
US$0.29
13 Bolt [301-210-303] Bolt 301-210-303
US$0.50
14 PTO Shaft - 6 Bolt Flange [406-340-592] PTO Shaft - 6 Bolt Flange 406-340-592
US$403.55
15 Bolt [301-110-353] Bolt 301-110-353
US$0.61
16 Retaining Washer - Electric Clutch [450-844-160] Retaining Washer - Electric Clutch 450-844-160
US$17.24
18 Hydraulic Cartridge Valve Bank [409-000-043] Hydraulic Cartridge Valve Bank 409-000-043
US$2,230.97
19 Mount Bracket Folding [418-000-398] Mount Bracket Folding 418-000-398
US$40.52
20 Proximity Sensor Kit - Unshielded incl. Connector [421-000-042] Proximity Sensor Kit - Unshielded incl. Connector 421-000-042
US$203.04
21 Bolt [301-208-603] Bolt 301-208-603
US$0.52
26 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
27 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
28 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
30 Bolt [301-208-303] Bolt 301-208-303
US$0.29
31 Bush [402-000-097] Bush 402-000-097
US$35.98
32 Bolt [301-210-503] Bolt 301-210-503
US$1.64
33 Washer - Fender [308-100-073] Washer - Fender 308-100-073
US$0.41
34 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
35 Spring - Tension [207-000-008] Spring - Tension 207-000-008
US$68.23
36 Bolt [301-208-203] Bolt 301-208-203
US$1.05
37 Sheild - Electric Unlock Actuator [410-000-287] Sheild - Electric Unlock Actuator 410-000-287
US$34.95
39 Bolt [301-208-253] Bolt 301-208-253
US$0.89
40 Clutch Mount Bracket [418-844-170] Clutch Mount Bracket 418-844-170
US$7.87
43 Blind Rivet [213-000-001] Blind Rivet 213-000-001
US$0.47
45 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
48 Mount Bracket Folding [418-000-397] Mount Bracket Folding 418-000-397
US$93.91
49 Switch Box [421-000-065] Switch Box 421-000-065
US$234.87
