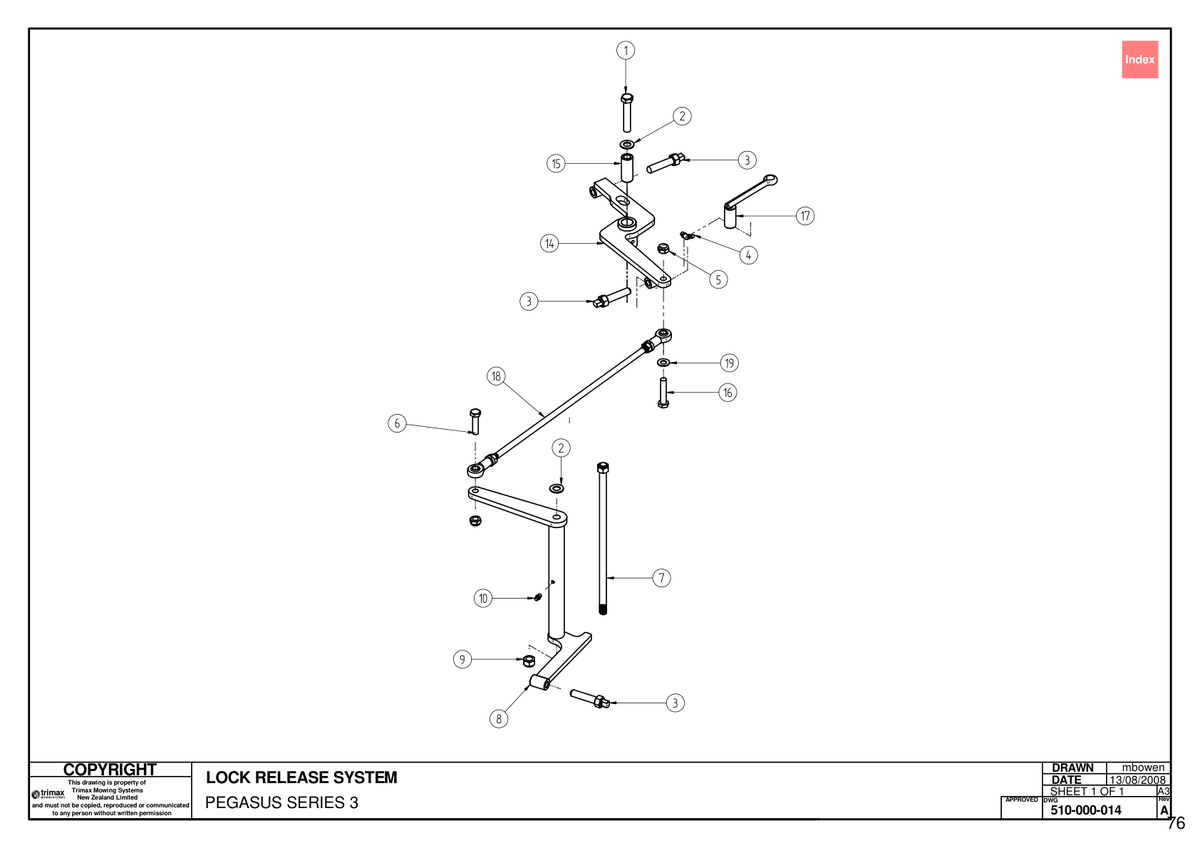

727 - Pegasus S3 - LOCK RELEASE SYSTEM - 510-000-014

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	US$3.72
2	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
3	Release Lever Pin Assembly 419-000-013 More Info >	US$25.27
4	Grease Nipple - Trimax Specification 208-442-620 More Info >	US$4.02
5	Nut - Nyloc 307-210-053 More Info >	US$0.60
6	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	US$0.72
8	Rear Release Weldment - Transport Lock 418-000-221 More Info >	US$145.17
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
10	Grease Nipple - Trimax Specification 208-442-600 More Info >	US$3.72
14	Release Assembly 418-840-630 More Info >	US$209.10
15	Bush 402-840-650 More Info >	US$29.52
16	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	US$1.64
17	Release Rope Mount Weldment 418-840-680 More Info >	US$89.53
18	Tie Rod Assembly - Transport Lock 418-000-193 More Info >	US$47.64
19	Washer - Flat 308-100-013 More Info >	US$0.17
