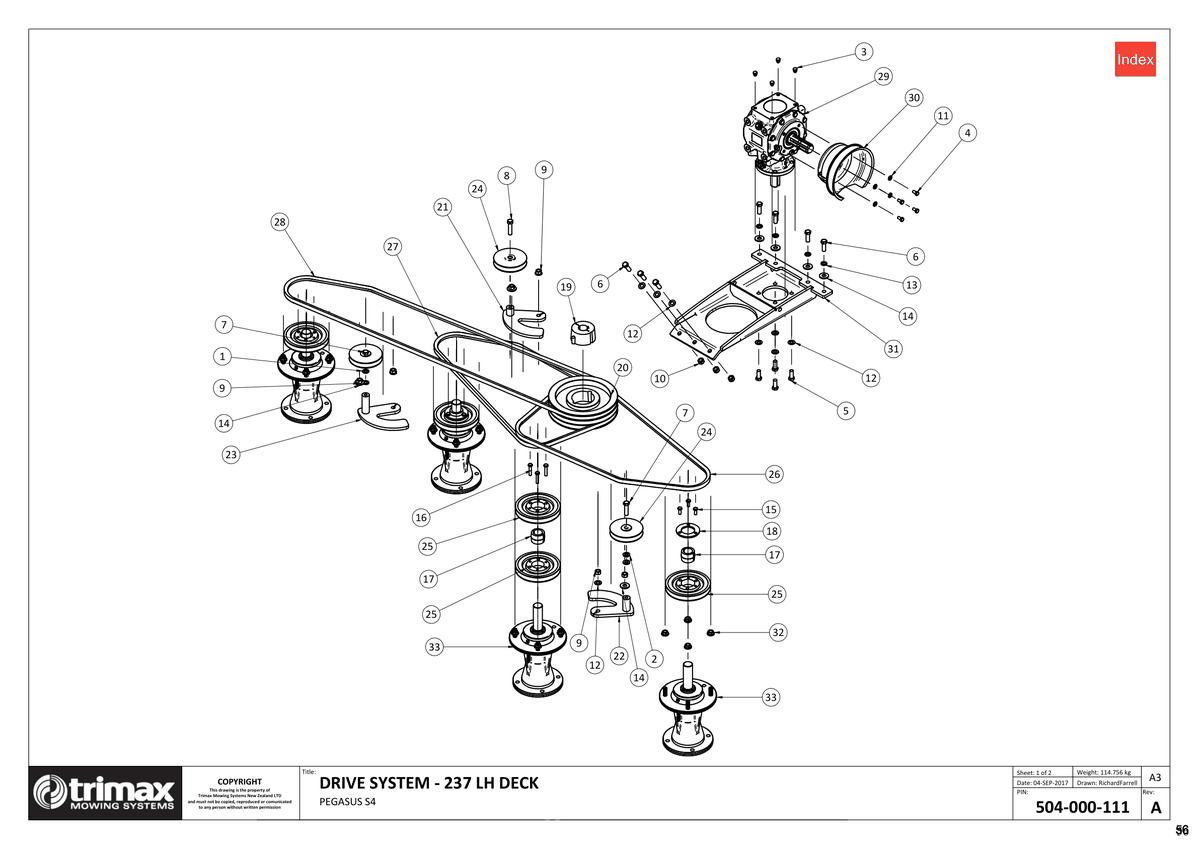

727 - Pegasus S4 610 - Drive System 237 LH - Biloc

Pegasus S4 610

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
2 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
5 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
6 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
7 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
8 Bolt - Hex Head M12 x 50 - Trimax Specification - [301-212-503] Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503
US$3.87
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
11 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
12 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
13 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
14 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
15 Set Screw [313-208-203] Set Screw 313-208-203
Price on Request
16 Set Screw [313-208-403] Set Screw 313-208-403
Price on Request
17 Bush [402-060-320] Bush 402-060-320
US$27.23
18 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
19 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
US$57.31
20 Pulley [403-000-038] Pulley 403-000-038
US$153.23
21 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
22 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
23 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base 403-330-442
US$63.96
24 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$79.00
25 Pulley [403-360-300] Pulley 403-360-300
US$79.00
26 Vee Belt - Trimax Specification - [404-040-750] Vee Belt - Trimax Specification - 404-040-750
US$30.38
28 Vee Belt - Trimax Specification [404-041-150] Vee Belt - Trimax Specification 404-041-150
US$50.63
29 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
30 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
31 Gearbox Mount Weldment [417-001-197] Gearbox Mount Weldment 417-001-197
US$288.36
32 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
33 Spindle Assembly - Steadfast [504-000-106] Spindle Assembly - Steadfast 504-000-106
US$749.70
