NOTES:

Part # Number on image Usage Notes
404-000-125 24
  • All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope
  • All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope
406-000-084 27
  • PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal
  • PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal

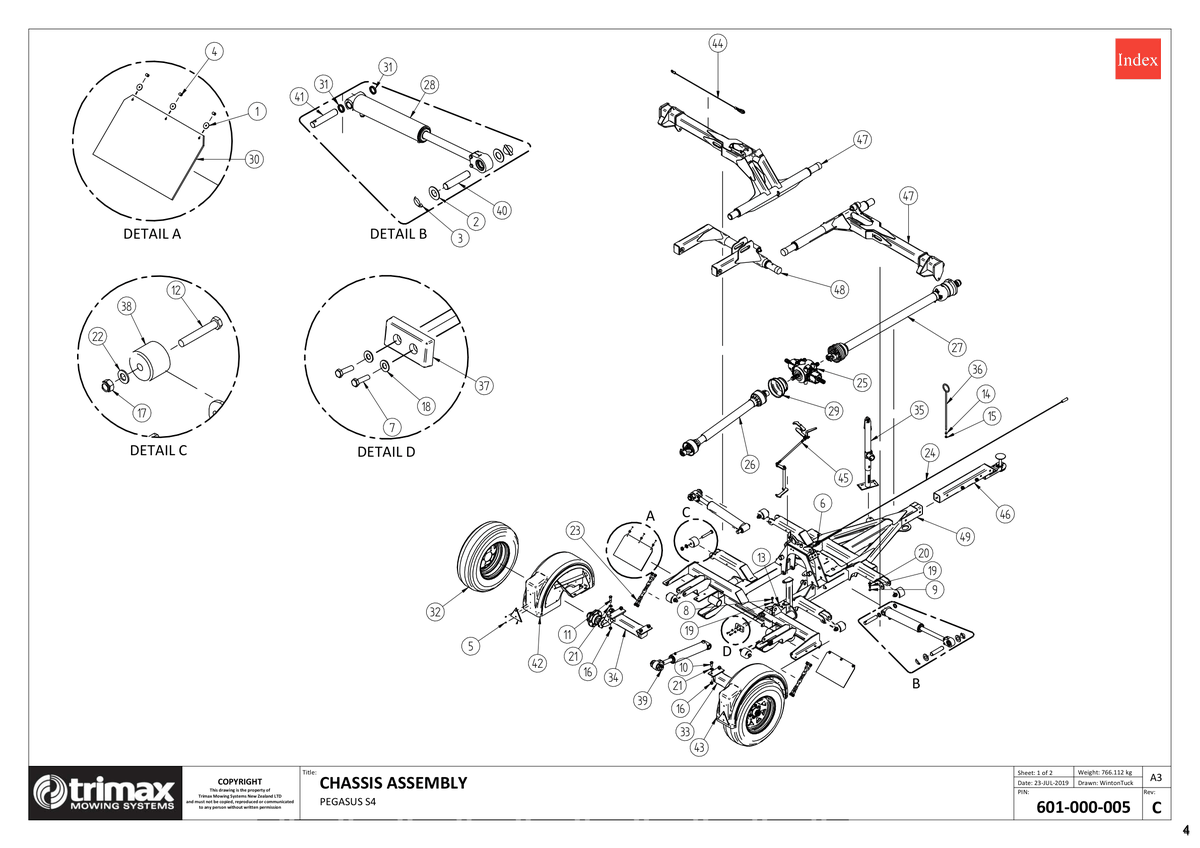

727 - Pegasus S4 - Chassis Assembly

Pegasus S4 493, Pegasus S4 610

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Washer - Flat [108-224-014] Washer - Flat 108-224-014
Price on Request
3 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
4 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
5 Blind Rivet [213-000-005] Blind Rivet 213-000-005
US$0.68
6 Bow Shackle - Stainless - Ø6mm [214-446-250] Bow Shackle - Stainless - Ø6mm 214-446-250
US$2.98
7 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
8 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
US$2.26
9 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
10 Bolt - Hex Head - M16 x 40 - Trimax Specification [301-216-403] Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403
US$1.43
11 Bolt - Hex Head - M16 x 60 - Trimax Specification [301-216-603] Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603
US$1.74
12 Bolt - Hex Head - M20 x 130 - Trimax Specification [301-620-133] Bolt - Hex Head - M20 x 130 - Trimax Specification 301-620-133
US$12.38
13 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
14 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
US$0.60
15 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
16 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
17 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
18 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
19 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
20 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
21 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
22 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
23 Check Chain Assembly [404-000-006] Check Chain Assembly 404-000-006
US$23.23
24 Release Rope Assembly 4.5m [404-000-125] Release Rope Assembly 4.5m i See notes section for usage notes on this part 404-000-125
US$45.29
25 Gearbox [405-201-020] Gearbox 405-201-020
US$2,227.80
26 PTO Shaft [406-340-570] PTO Shaft 406-340-570
US$418.19
27 PTO Shaft Wide Angle-T60 [406-000-084] PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084
US$1,147.98
28 Lift Ram Assembly [409-845-200] Lift Ram Assembly 409-845-200
US$1,352.98
29 Cone - PTO Shield [410-440-403] Cone - PTO Shield 410-440-403
US$25.22
30 Mud Flap - Axle [410-842-440] Mud Flap - Axle 410-842-440
US$51.92
31 Spacer Ring - Cut Height [412-000-474] Spacer Ring - Cut Height 412-000-474
US$8.59
32 Wheel Assembly - Road [416-842-620] Wheel Assembly - Road 416-842-620
US$651.89
33 Axle Assembly - Braked/Splined - RH [416-842-740] Axle Assembly - Braked/Splined - RH 416-842-740
US$1,230.85
34 Axle Assembly - Braked/Splined - LH [416-842-750] Axle Assembly - Braked/Splined - LH 416-842-750
US$1,230.85
35 Parking Jack Assembly [418-000-217] Parking Jack Assembly 418-000-217
US$187.43
36 Guide [418-000-466] Guide 418-000-466
US$36.54
37 Buffer Pad [418-840-300] Buffer Pad 418-840-300
US$29.90
38 Guide Roller [418-844-364] Guide Roller 418-844-364
US$72.35
39 Pin - Hydraulic Cylinder [419-845-550] Pin - Hydraulic Cylinder 419-845-550
US$51.66
40 Pin - Hydraulic Cylinder [419-845-560] Pin - Hydraulic Cylinder 419-845-560
US$57.31
41 Pin - Hydraulic Cylinder [419-845-561] Pin - Hydraulic Cylinder 419-845-561
US$16.47
42 Mudguard Assembly - Pegasus S4 LH [506-000-013] Mudguard Assembly - Pegasus S4 LH 506-000-013
US$220.56
43 Mudguard Assembly - Pegasus S4 RH [506-000-014] Mudguard Assembly - Pegasus S4 RH 506-000-014
US$220.56
44 Safety Rope Assembly - Transport [506-000-025] Safety Rope Assembly - Transport 506-000-025
US$51.92
46 Drawbar Assembly [510-000-046] Drawbar Assembly 510-000-046
Price on Request
48 Rear Outrigger Assembly - Pegasus S4 [510-000-048] Rear Outrigger Assembly - Pegasus S4 510-000-048
Price on Request
