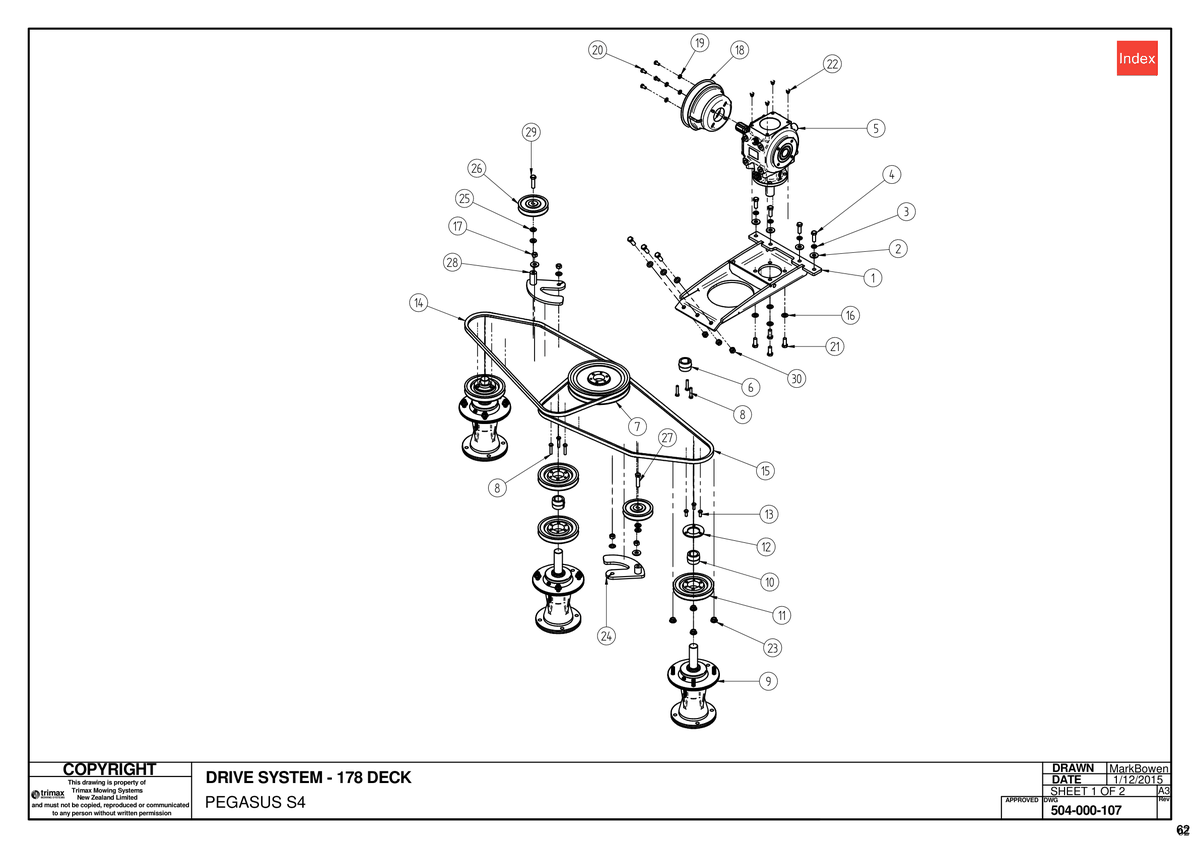

727 - Pegasus S4 - Drive System 178

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Gearbox Mount Weldment 417-001-197 More Info >	US$288.36
2	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
5	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	US$1,405.69
6	Bush 402-060-330 More Info >	US$49.11
7	Pulley 403-360-650 More Info >	US$83.35
8	Set Screw 305-208-403 More Info >	Price on Request
9	Spindle Assembly - Steadfast 504-000-106 More Info >	US$749.70
10	Bush 402-060-320 More Info >	US$27.23
11	Pulley 403-360-300 More Info >	US$63.88
12	Retainer Ring 402-060-450 More Info >	US$10.81
13	Set Screw 305-208-203 More Info >	Price on Request
14	Vee Belt - Trimax Specification 404-040-750 More Info >	US$30.38
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
17	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
18	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	US$45.26
19	Washer - Flat 308-080-013 More Info >	US$1.34
20	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	US$1.05
21	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
22	Blanking Plug - M12 209-900-012 More Info >	US$0.35
23	Nut - Flange 450-000-078 More Info >	US$0.44
24	Idler Tower Incl Base 403-330-423 More Info >	US$62.65
25	Washer - Hardened 108-071-513 More Info >	US$2.98
26	Pulley Assembly - Idler 403-360-111 More Info >	US$70.88
27	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	US$3.87
28	Idler Tower Incl Base 403-330-432 More Info >	US$62.73
29	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	US$3.72
30	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
