NOTES:

Part # Number on image Usage Notes
418-000-606 5
  • The New Outrigger arm is fitted from serial number on wards, Serial numbers :727-493-410-0058 Painted NZ/ 727-610-400-0063 Painted NZ/727-493-410-0001 Galv NZ/ 727-610-410-0063 Gavl NZ Order part number 510-000-049 - Side Outrigger Wldmnt w Bushes - Pegasus S4 493/610 ,includes items 1,3,5,11(fitted) Please note that the new outrigger arm is backward compatible Serial number 727-493-400-0044,727-610-410-0060 on wards has Improved clearance between the Side Outriggers and the Lift Rams
  • The New Outrigger arm is fitted from serial number on wards, Serial numbers :727-493-410-0058 Painted NZ/ 727-610-400-0063 Painted NZ/727-493-410-0001 Galv NZ/ 727-610-410-0063 Gavl NZ Order part number 510-000-049 - Side Outrigger Wldmnt w Bushes - Pegasus S4 493/610 ,includes items 1,3,5,11(fitted) Please note that the new outrigger arm is backward compatible Serial number 727-493-400-0044,727-610-410-0060 on wards has Improved clearance between the Side Outriggers and the Lift Rams
460-000-234 7
  • Item 7 Includes items 8,9,10,11 & 12 as Kit.
  • Item 7 Includes items 8,9,10,11 & 12 as Kit.
301-208-253 13
  • Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
  • Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
308-080-016 14
  • Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
  • Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
418-840-300 15
  • Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000
  • Due to implementation of new universal chassis Items 13-15 has moved to Chassis assembly from outrigger arm from these serial number on wards: NZM: 727-493-400-0089, 727-610-410-0107, 727-610-400-0087, 727-722-410-0029, 727-722-400-0 GBM: 627-493-400-10001509, 627-610-400-10000

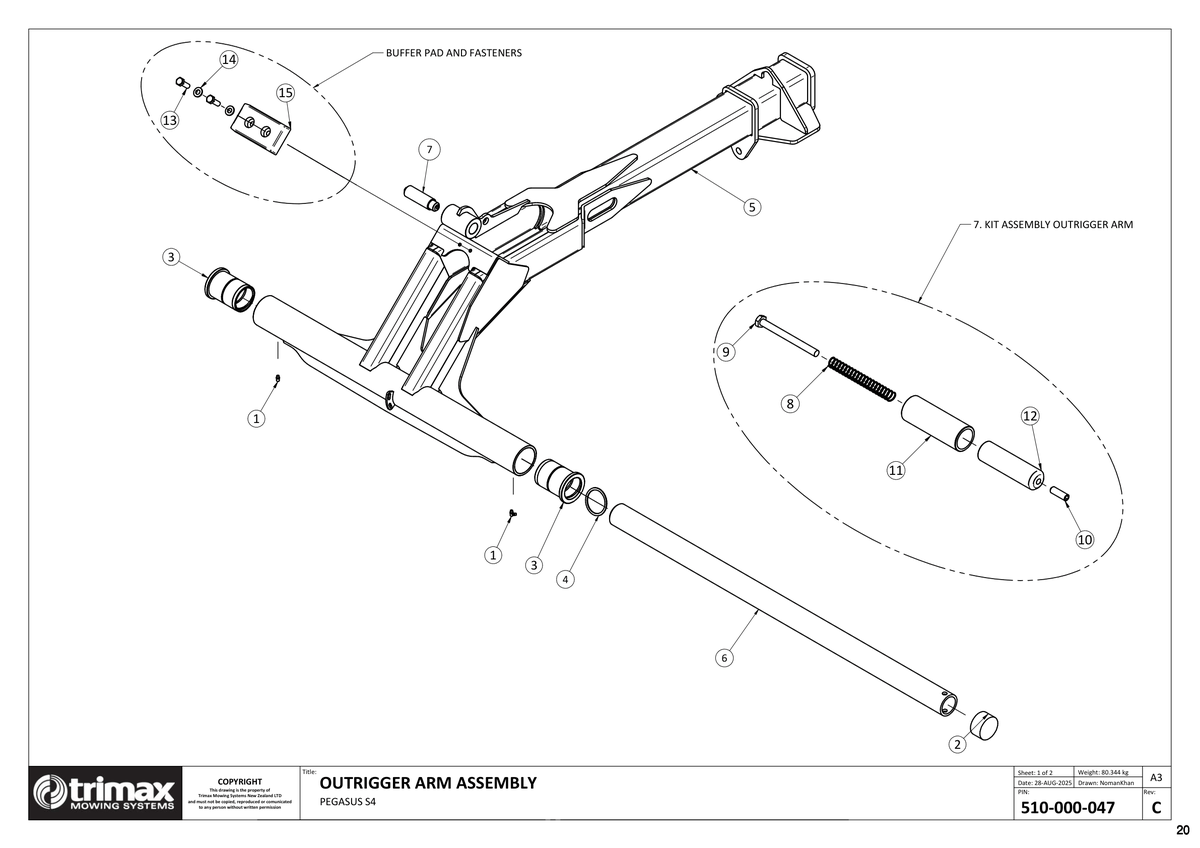

727 - Pegasus S4 - Outrigger Arm - LH & RH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
2 Plastic Cap - Round Ø63 x 36 [209-840-320] Plastic Cap - Round Ø63 x 36 209-840-320
US$8.30
3 Bush [402-840-260] Bush 402-840-260
US$159.90
4 Shim [418-000-001] Shim 418-000-001
US$34.55
5 Side Outrigger Weldment 493 & 610 [418-000-606] Side Outrigger Weldment 493 & 610 i See notes section for usage notes on this part 418-000-606
Price on Request
6 Pin - Outrigger Hinge - Side [419-840-210] Pin - Outrigger Hinge - Side 419-840-210
US$251.86
7 Kit Assembly - Outrigger Arm - Pegasus [460-000-234] Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234
Price on Request
8 Spring - Compression [207-840-720] Spring - Compression 207-840-720
US$12.21
9 Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification [301-208-906] Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906
US$1.86
10 Grub Screw [312-208-255] Grub Screw 312-208-255
US$2.17
11 Bush [402-840-710] Bush 402-840-710
US$47.47
12 Pin - Transport Lock [419-840-700] Pin - Transport Lock 419-840-700
US$149.00
13 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification i See notes section for usage notes on this part 301-208-253
US$0.89
14 Washer - Flat [308-080-016] Washer - Flat i See notes section for usage notes on this part 308-080-016
US$0.25
15 Buffer Pad [418-840-300] Buffer Pad i See notes section for usage notes on this part 418-840-300
US$29.90
