NOTES:

Part #	Number on image	Usage Notes
404-320-124	20	Roller Scraper available as an option

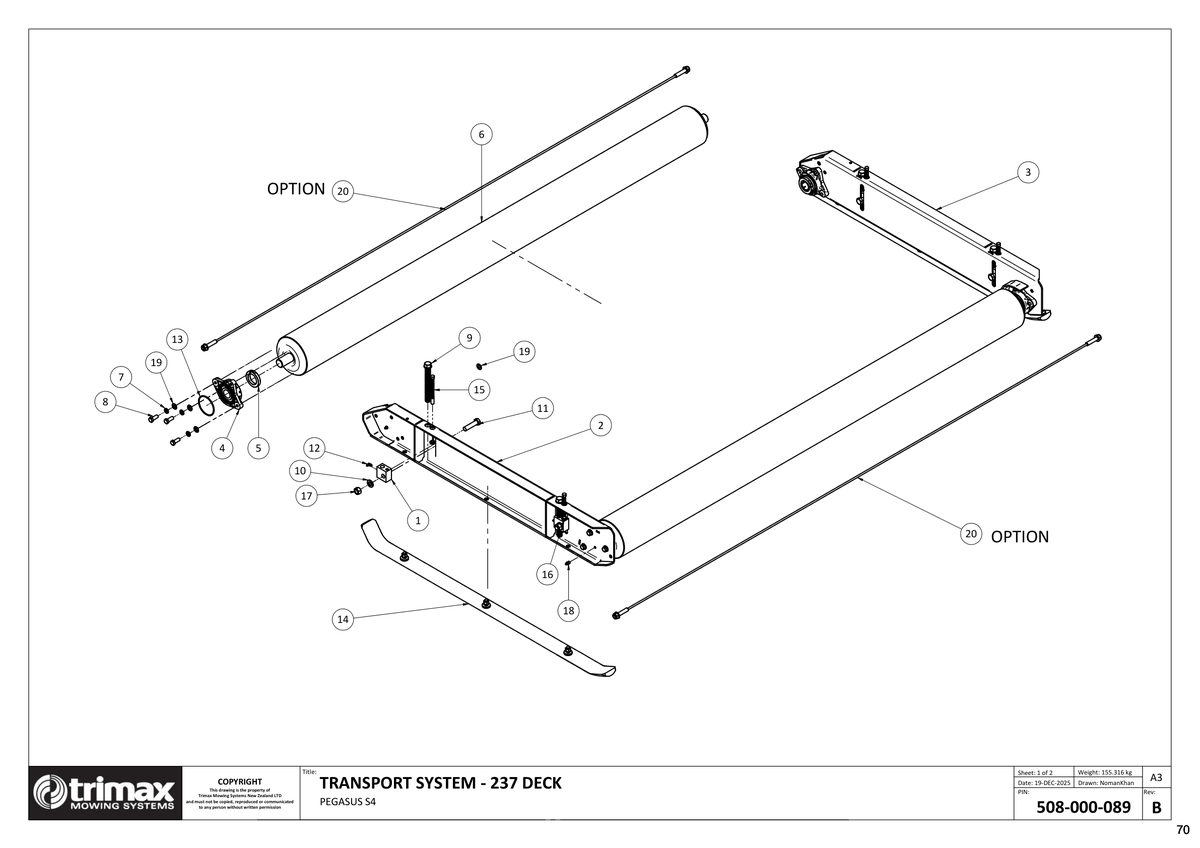

727 - Pegasus S4 - Transport System 237

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Height Adjuster Block 412-000-279 More Info >	US$53.50
2	Side Channel Weldment - LH 412-841-052 More Info >	US$462.74
3	Side Channel Weldment - RH 412-841-051 More Info >	US$462.74
4	Roller Bearing Assembly - Trimax Specification - 401-000-005 More Info >	US$173.00
5	Bearing Collar 401-000-007 More Info >	US$8.44
6	Roller Weldment 237 414-320-023 More Info >	US$644.28
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
9	Height Adjuster Rod - RapidSet 450-000-126 More Info >	US$33.59
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
11	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	US$5.20
12	Grease Nipple - Trimax Specification 208-442-650 More Info >	US$4.76
13	O Ring 450-000-055 More Info >	US$2.70
14	Skid Assembly - Anti-Bounce 412-000-148 More Info >	US$185.94
15	Height Indicator - Metric 412-000-256 More Info >	US$19.91
16	Nut - Half 307-212-023 More Info >	US$0.80
17	Nut - Plain 307-216-013 More Info >	US$1.05
18	Grease Nipple - Trimax Specification 208-442-550 More Info >	US$2.45
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
20	Scraper - Roller 237 i See notes section for usage notes on this part 404-320-124 More Info >	US$100.94
