NOTES:

Part #	Number on image	Usage Notes
403-360-110	31	Idler Pulley assembly C/W bearings available as part number 403-360-111.

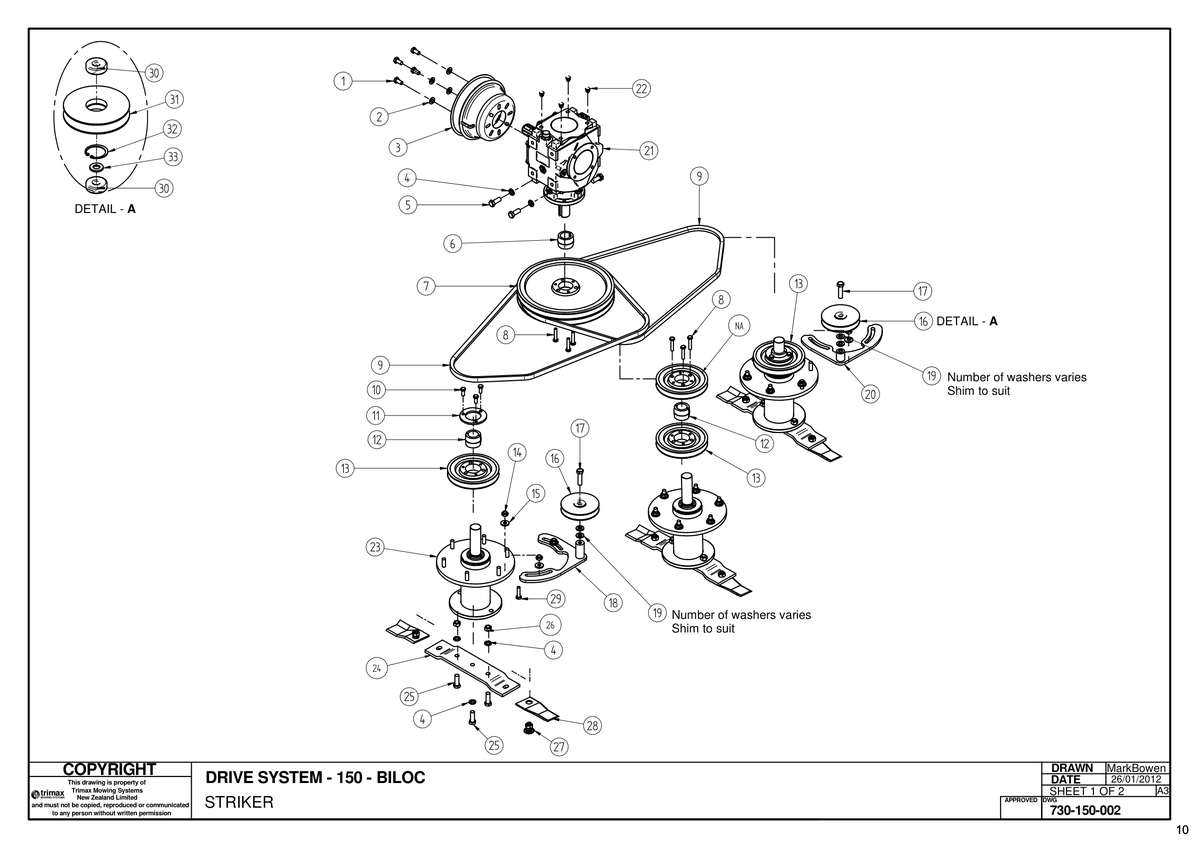

730 - Striker S1 150 - Drive System - Biloc

Striker S1 150

Grouped product items
No.	Product Name	Price
1	Bolt 301-210-203 More Info >	US$0.44
2	Washer - Flat 308-100-013 More Info >	US$0.17
3	Cone - PTO Holes Punched 410-440-402 More Info >	US$25.22
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
5	Bolt 301-212-303 More Info >	US$3.13
6	Bush 402-060-330 More Info >	US$49.11
7	Pulley 403-000-060 More Info >	US$106.21
8	Bolt 301-208-403 More Info >	US$1.64
9	Vee Belt 404-040-700 More Info >	US$35.25
10	Bolt 301-208-203 More Info >	US$1.05
11	Retainer Ring 402-060-450 More Info >	US$10.81
12	Bush 402-060-320 More Info >	US$27.23
13	Pulley 403-360-300 More Info >	US$63.88
14	Nut - Nyloc 307-210-053 More Info >	US$0.60
15	Washer - Heavy Flat 308-100-063 More Info >	US$0.25
16	Pulley Assembly - Idler 403-360-111 More Info >	US$70.88
17	Bolt 301-212-453 More Info >	US$3.72
19	Washer - Hardened 108-071-513 More Info >	US$2.98
20	Idler Adjuster S 403-000-064 More Info >	US$51.34
21	Gearbox 405-000-015 More Info >	US$688.00
22	Blanking Plug - M12 209-900-012 More Info >	US$0.35
23	Spindle Assembly - Striker 504-000-096 More Info >	US$688.51
24	Blade Beam 150/190 411-000-022 More Info >	US$71.97
25	Bolt 301-212-353 More Info >	US$2.98
26	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
27	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	US$4.28
28	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	US$6.91
29	Set Screw 313-210-403 More Info >	US$0.47
30	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	US$22.00
31	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	US$41.94
32	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
33	Washer - Flat 108-071-413 More Info >	US$2.53
