NOTES:

Part # Number on image Usage Notes
402-000-078 14
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
402-000-090 15
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
402-060-820 16
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-083 19
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-360-110 21
  • Idler pulley assembly including the bearings available as part number 403-360-111.
403-361-140 22
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-150-101-1057776; GB: 730-150-146B-3002523. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
405-000-015 25
  • For Gearbox assembly breakdown view for parts refer to page 21.
504-000-169 31
  • For spindle assembly breakdown view for parts refer to page 17.

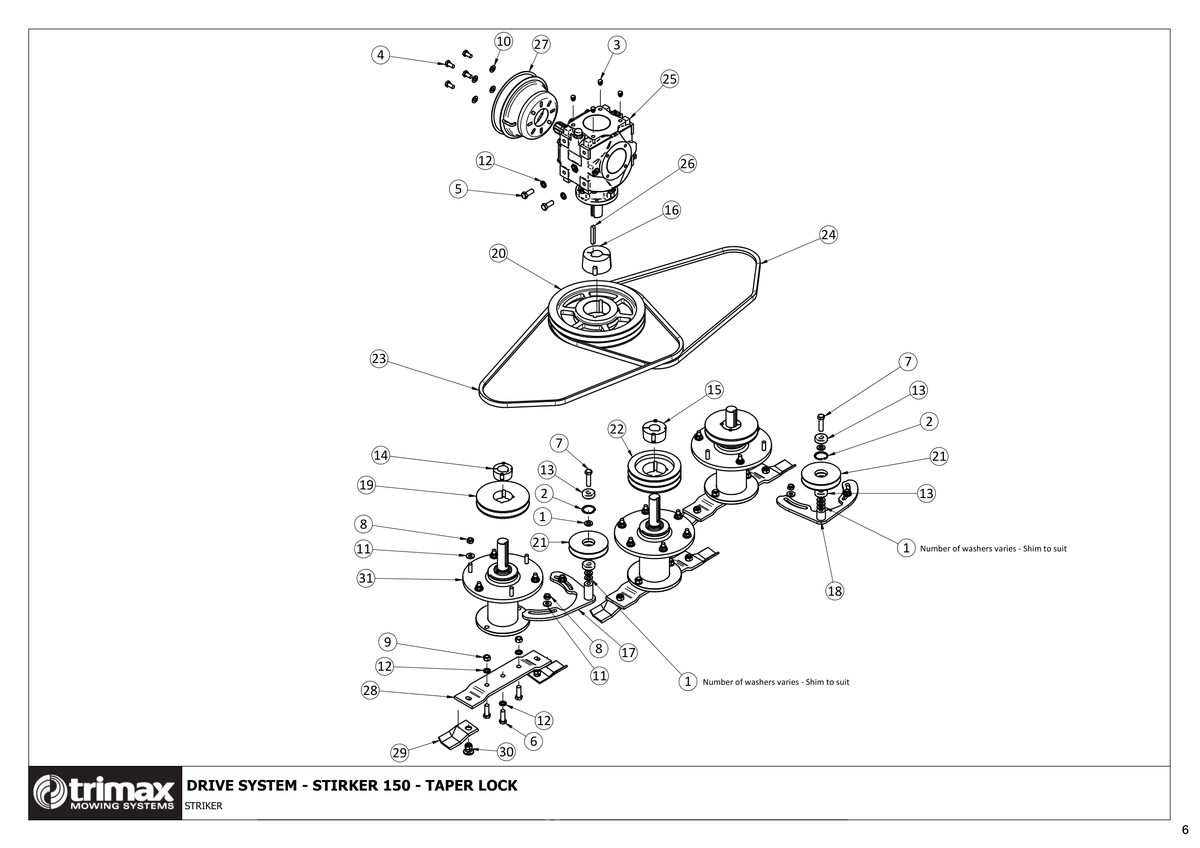

730 - Striker S1 150 - Drive System - Taper Lock

Striker S1 150

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt [301-210-203] Bolt 301-210-203
US$0.44
5 Bolt [301-212-303] Bolt 301-212-303
US$3.13
6 Bolt [301-212-353] Bolt 301-212-353
US$2.98
7 Bolt [301-212-453] Bolt 301-212-453
US$3.72
8 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
11 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
12 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
13 Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - [401-021-900] Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900
US$22.00
14 Bush - Taper Lock [402-000-078] Bush - Taper Lock i See notes section for usage notes on this part 402-000-078
US$15.75
15 Bush - Taper Lock [402-000-090] Bush - Taper Lock i See notes section for usage notes on this part 402-000-090
US$20.89
16 Bush - Taper Lock [402-060-820] Bush - Taper Lock i See notes section for usage notes on this part 402-060-820
US$57.31
18 Idler Adjuster S [403-000-064] Idler Adjuster S 403-000-064
US$51.34
19 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083
US$53.47
21 Pulley - Idler [403-360-110] Pulley - Idler i See notes section for usage notes on this part 403-360-110
US$41.94
22 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140
US$56.48
24 Vee Belt [404-040-700] Vee Belt 404-040-700
US$35.25
25 Gearbox [405-000-015] Gearbox i See notes section for usage notes on this part 405-000-015
US$688.00
26 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
27 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
US$25.22
28 Blade Beam 150/190 [411-000-022] Blade Beam 150/190 411-000-022
US$71.97
29 Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade [411-160-842] Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842
US$6.91
30 Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting [411-322-050] Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050
US$4.28
31 Spindle Assembly - With Keyway - Striker [504-000-169] Spindle Assembly - With Keyway - Striker i See notes section for usage notes on this part 504-000-169
US$566.99
