NOTES:

Part # Number on image Usage Notes
504-000-094 25
  • Use part number 403-000-064 - Idler Adjuster S Striker.
504-000-095 26
  • Use part number 403-000-065 - Idler Adjuster VS Striker.
504-000-092 27
  • Use part number 403-000-062 - Idler Adjuster L Striker.

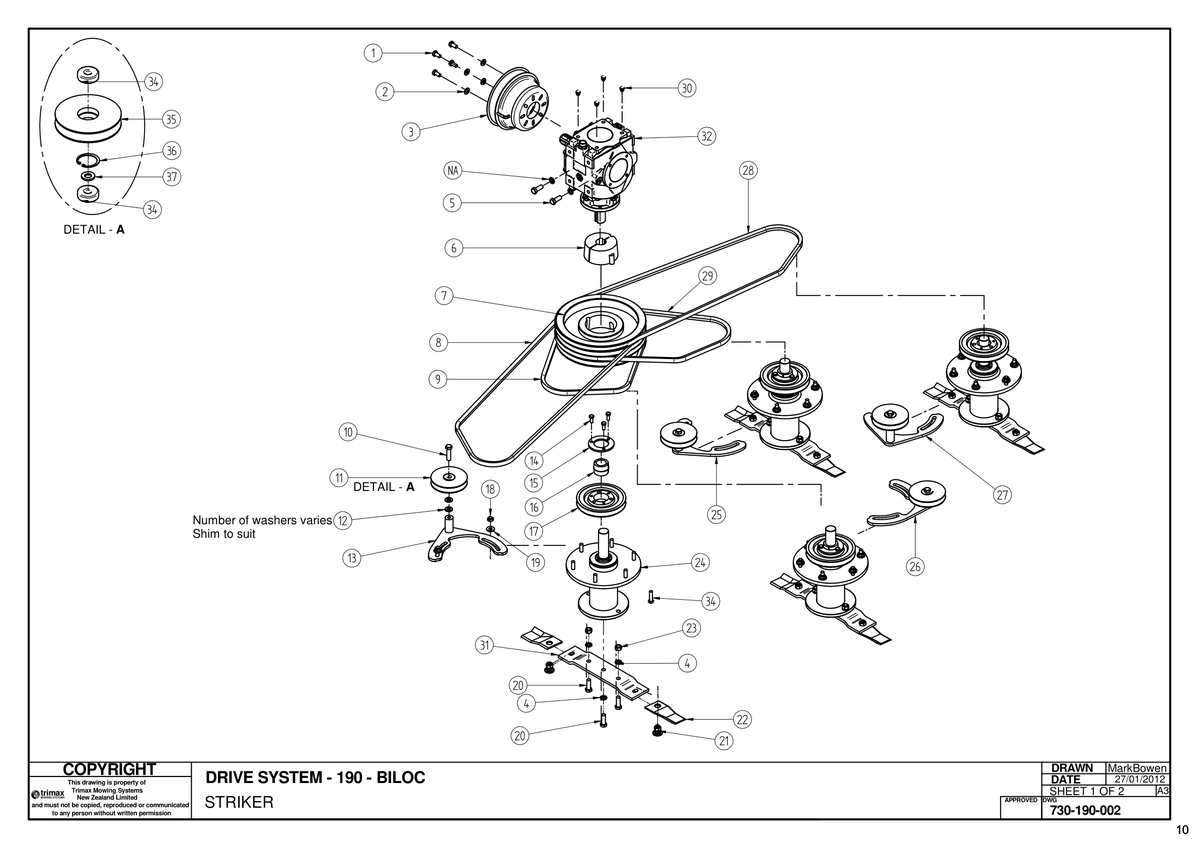

730 Striker S1 190 - Drive System - Biloc

Striker S1 190

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M10 x 20 - Trimax Specification [301-210-203] Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203
US$0.44
2 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
3 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
US$25.22
4 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
5 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
6 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
7 Pulley [403-000-059] Pulley 403-000-059
US$279.07
8 Vee Belt - Trimax Specification [404-040-860] Vee Belt - Trimax Specification 404-040-860
US$35.06
9 Vee Belt - Trimax Specification [404-040-480] Vee Belt - Trimax Specification 404-040-480
US$32.35
10 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
11 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
12 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
14 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
15 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
16 Bush [402-060-320] Bush 402-060-320
US$27.23
17 Pulley [403-360-300] Pulley 403-360-300
US$63.88
18 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
19 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
20 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
21 Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting [411-322-050] Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050
US$4.28
22 Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade [411-160-842] Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842
US$6.91
23 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
24 Spindle Assembly - Striker [504-000-096] Spindle Assembly - Striker 504-000-096
US$688.51
25 Idler Assembly Short [504-000-094] Idler Assembly Short i See notes section for usage notes on this part 504-000-094
US$108.38
26 Idler Assembly Very Short [504-000-095] Idler Assembly Very Short i See notes section for usage notes on this part 504-000-095
US$111.67
27 Idler Assembly Long [504-000-092] Idler Assembly Long i See notes section for usage notes on this part 504-000-092
US$117.14
28 Vee Belt - Trimax Specification [404-040-830] Vee Belt - Trimax Specification 404-040-830
US$51.54
29 Vee Belt - Trimax Specification [404-040-520] Vee Belt - Trimax Specification 404-040-520
US$41.84
30 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
31 Blade Beam 150/190 [411-000-022] Blade Beam 150/190 411-000-022
US$71.97
32 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
33 Set Screw [313-210-403] Set Screw 313-210-403
US$0.47
34 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
35 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
36 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
37 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
